MRCOOL 2 Ton Central Universal Air Conditioner and 96% AFUE, 80K BTU 17.5" Gas Furnace Split System - Upflow or Horizontal

Product Description

SHORT PRODUCT DESCRIPTION

Get efficient electric heat-pump heating and cooling with powerful gas backup in one complete MRCOOL® dual-fuel HVAC system. This combination pairs the 24,000 BTU MRCOOL Universal® DC Inverter Heat Pump, 80,000 BTU VersaPro® 96% AFUE two-stage gas furnace, and 1.5–2 ton pre-charged R-454B cased coil for year-round central ducted comfort.

The system delivers up to 18.6 SEER2 efficiency, inverter-driven operation, a 96% AFUE furnace, R-454B refrigerant and flexible line-set options, including compatibility with MRCOOL® No-Vac® Quick Connect® line sets.

PRODUCT DESCRIPTION

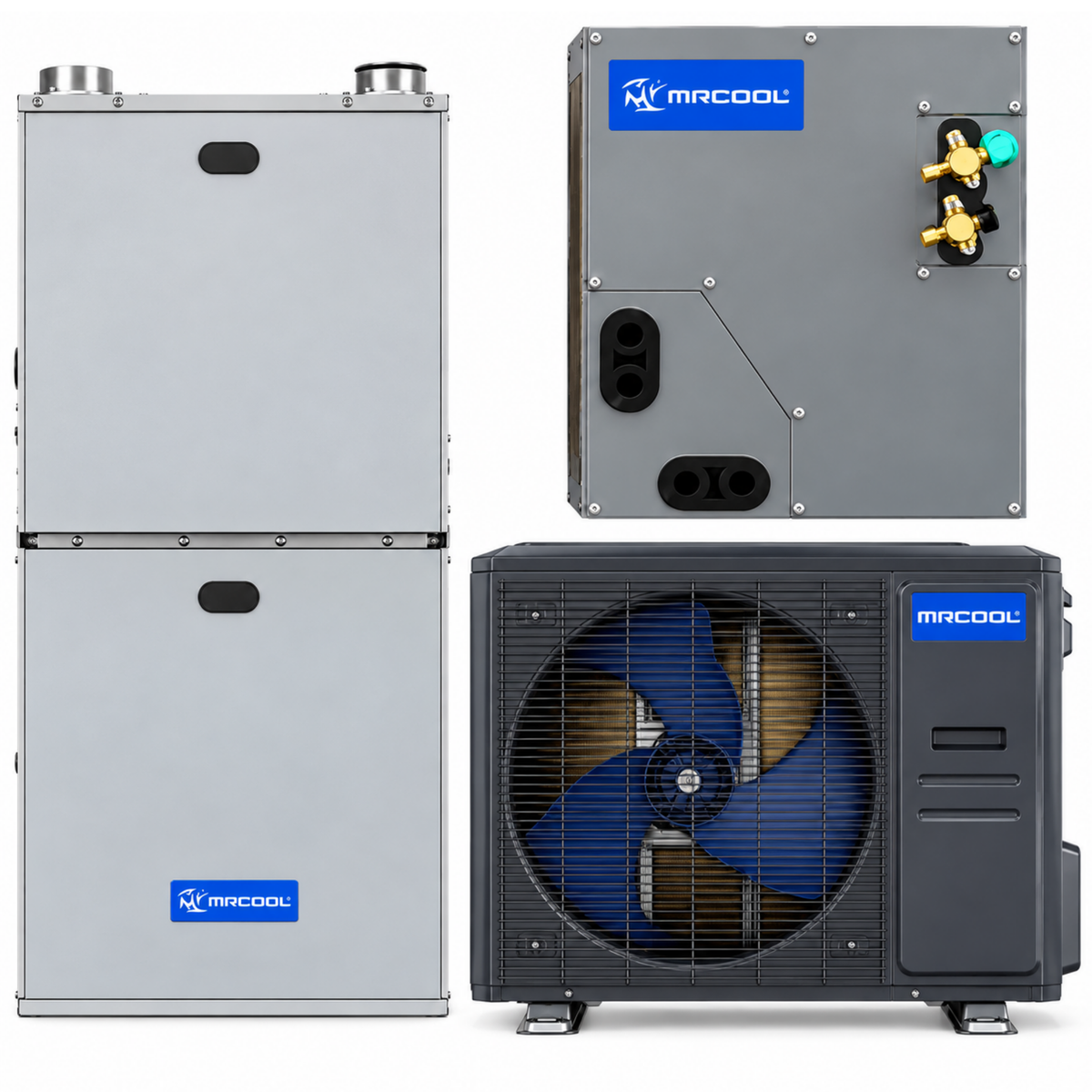

MRCOOL Universal 2 Ton Dual Fuel HVAC System

Get the advantages of an efficient inverter heat pump and a high-efficiency gas furnace in one central ducted heating and cooling system.

This MRCOOL® dual-fuel combination uses the Universal® Series 24,000 BTU DC Inverter Heat Pump Condenser for efficient cooling and heat-pump heating and pairs it with an 80,000 BTU VersaPro® 96% AFUE gas furnace for powerful gas heating.

Between them sits the MCMP1824BOTB 1.5–2 ton pre-charged R-454B cased evaporator coil, creating a matched component package designed for traditional ducted HVAC applications.

Rather than relying solely on electric resistance backup heat, a properly configured dual-fuel system can use the heat pump when conditions favor efficient electric heating and transition to the gas furnace when gas heat is called for.

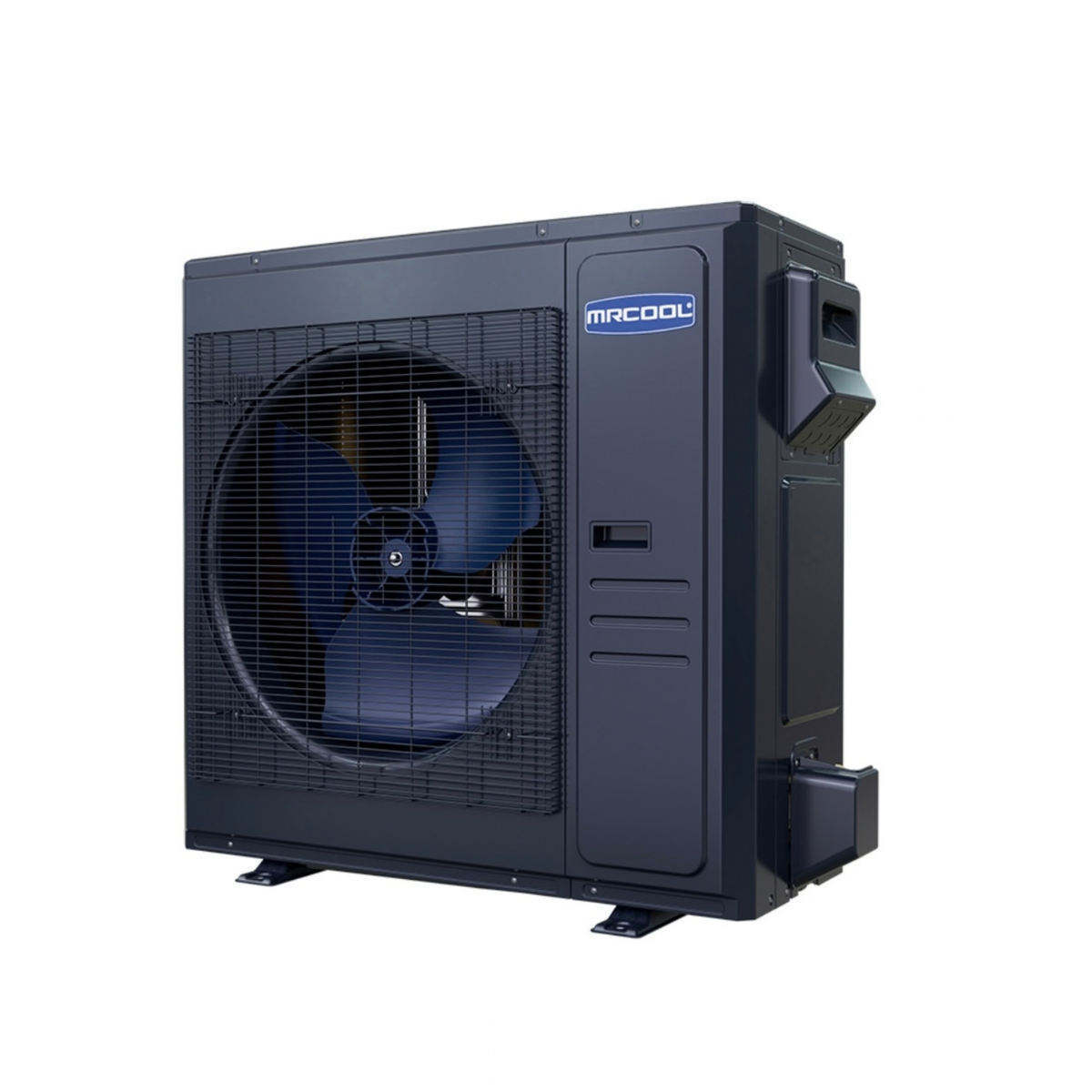

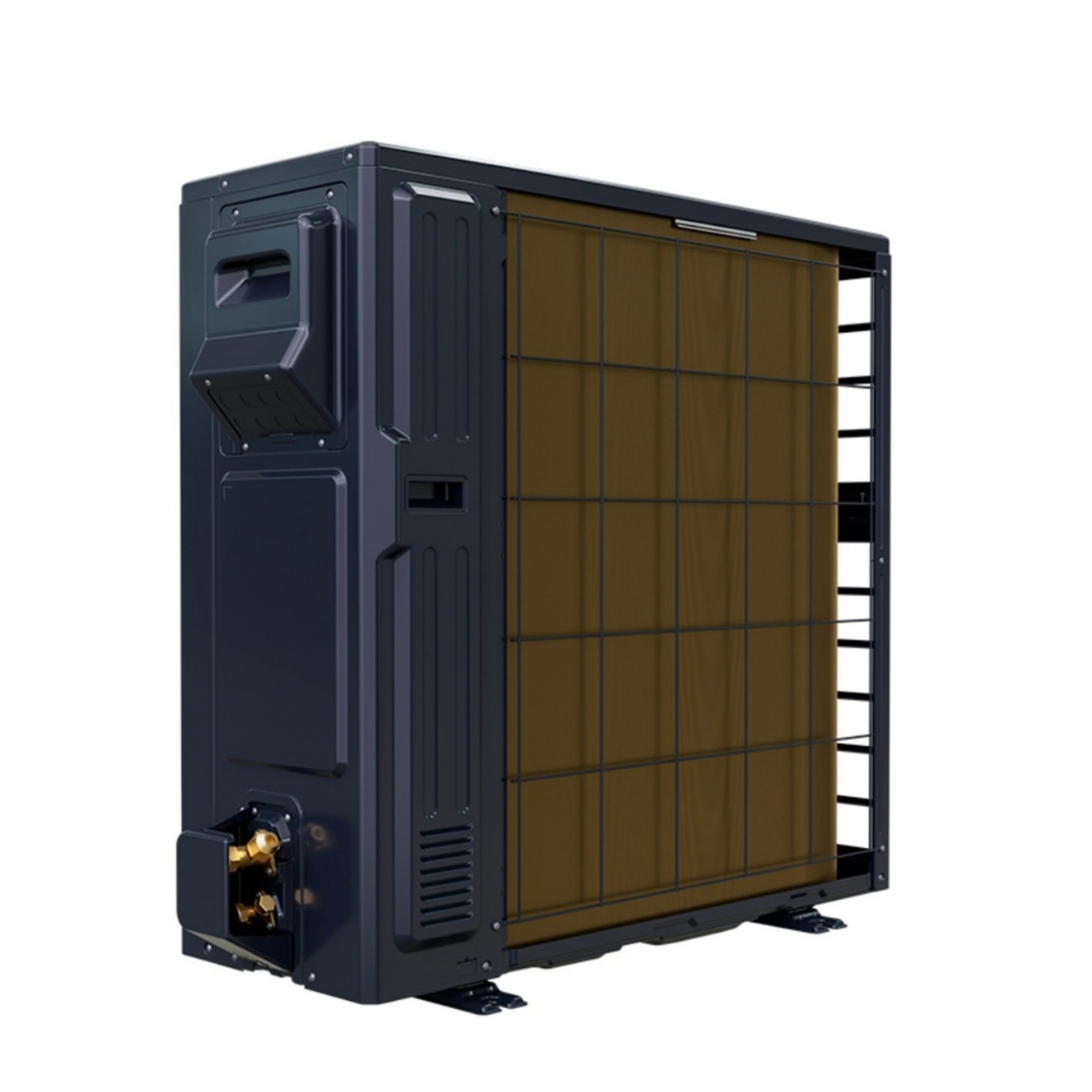

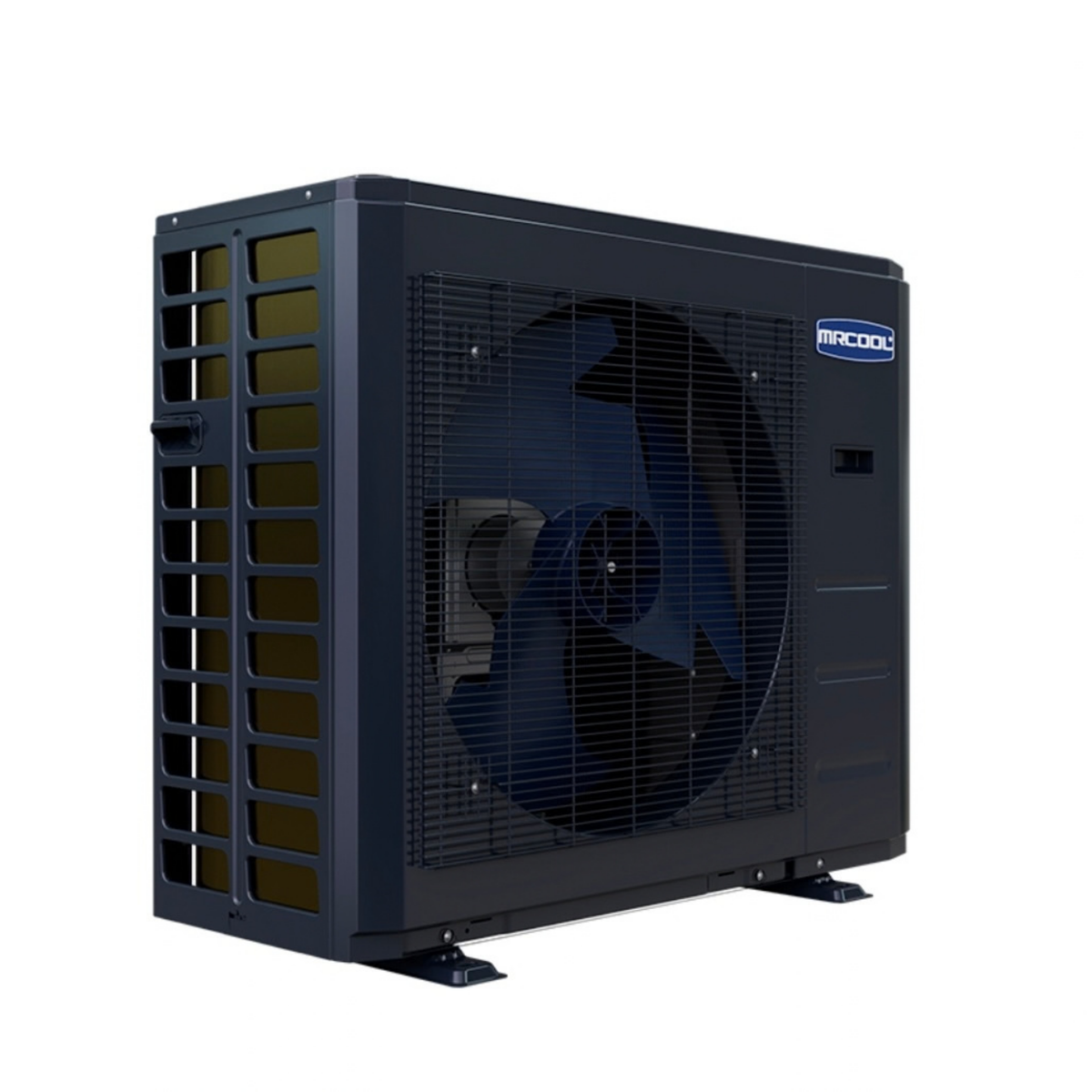

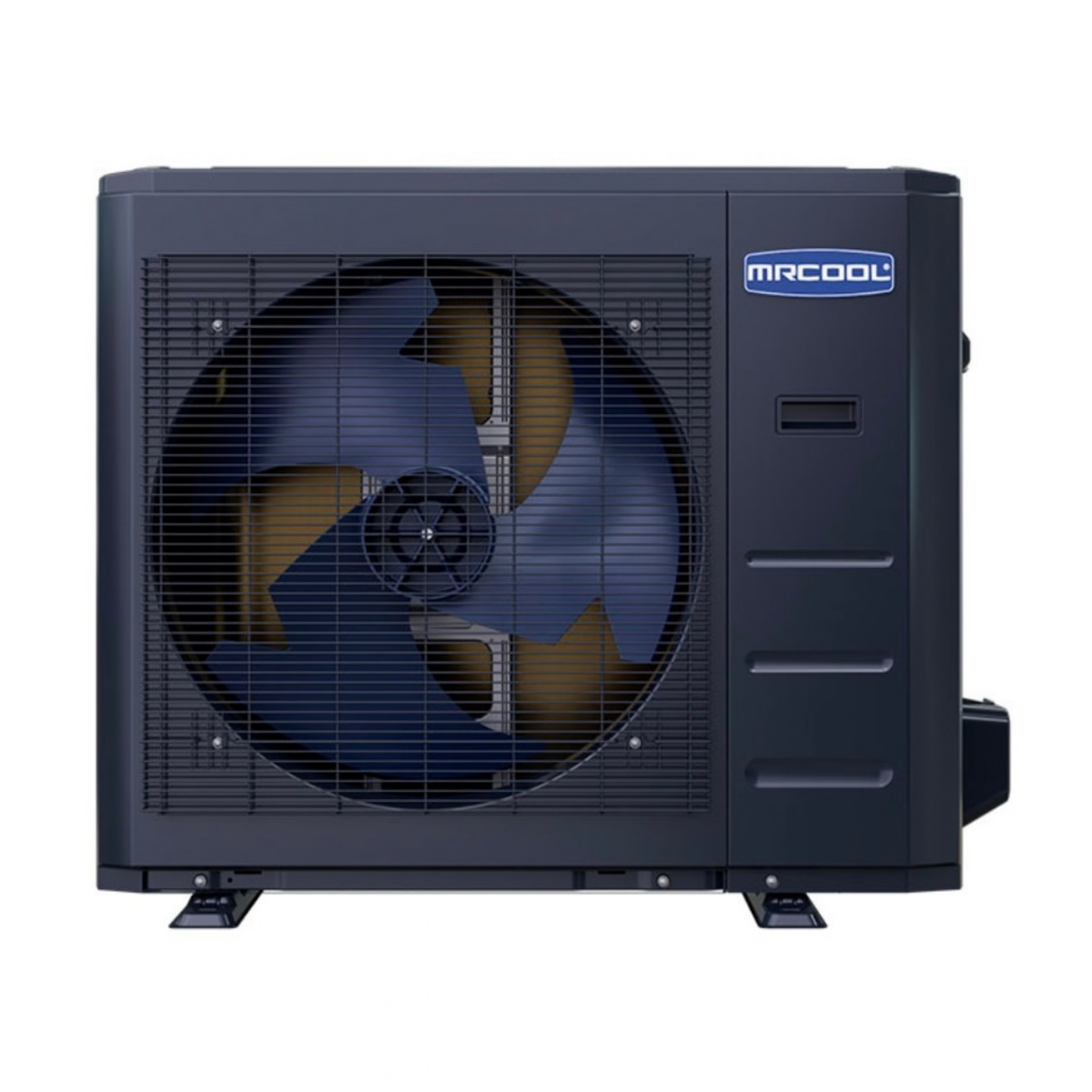

24,000 BTU Universal DC Inverter Heat Pump

The UHP18024-O is a 2-ton, 24,000 BTU Universal Series heat pump condenser engineered for both heating and cooling.

Its DC inverter compressor can vary output instead of operating strictly at full capacity or completely shutting off. This can provide smoother temperature control, quieter operation and improved energy efficiency compared with conventional fixed-speed equipment.

Key condenser specifications include:

• 24,000 BTU cooling capacity
• 24,000 BTU heating capacity
• Up to 18.6 SEER2
• Up to 12 EER2
• 10 HSPF2-4
• 8.1 HSPF2-5
• 208/230V, single phase, 60 Hz
• 19A minimum circuit ampacity
• 20A maximum fuse/breaker
• 59 dBA
• R-454B refrigerant
• DC inverter technology
• Maximum line-set length: 164 ft
• 3/8-inch liquid line
• 3/4-inch suction line

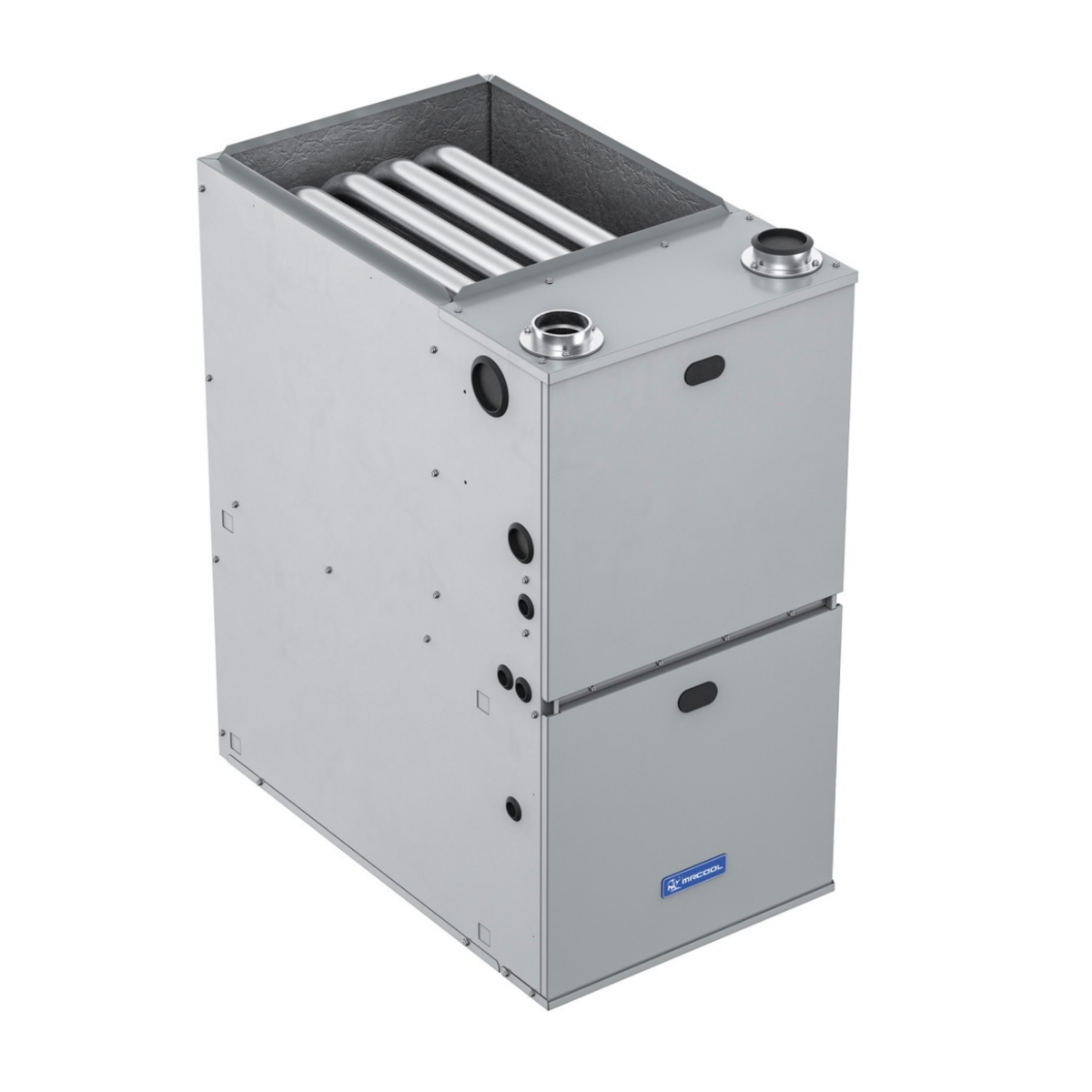

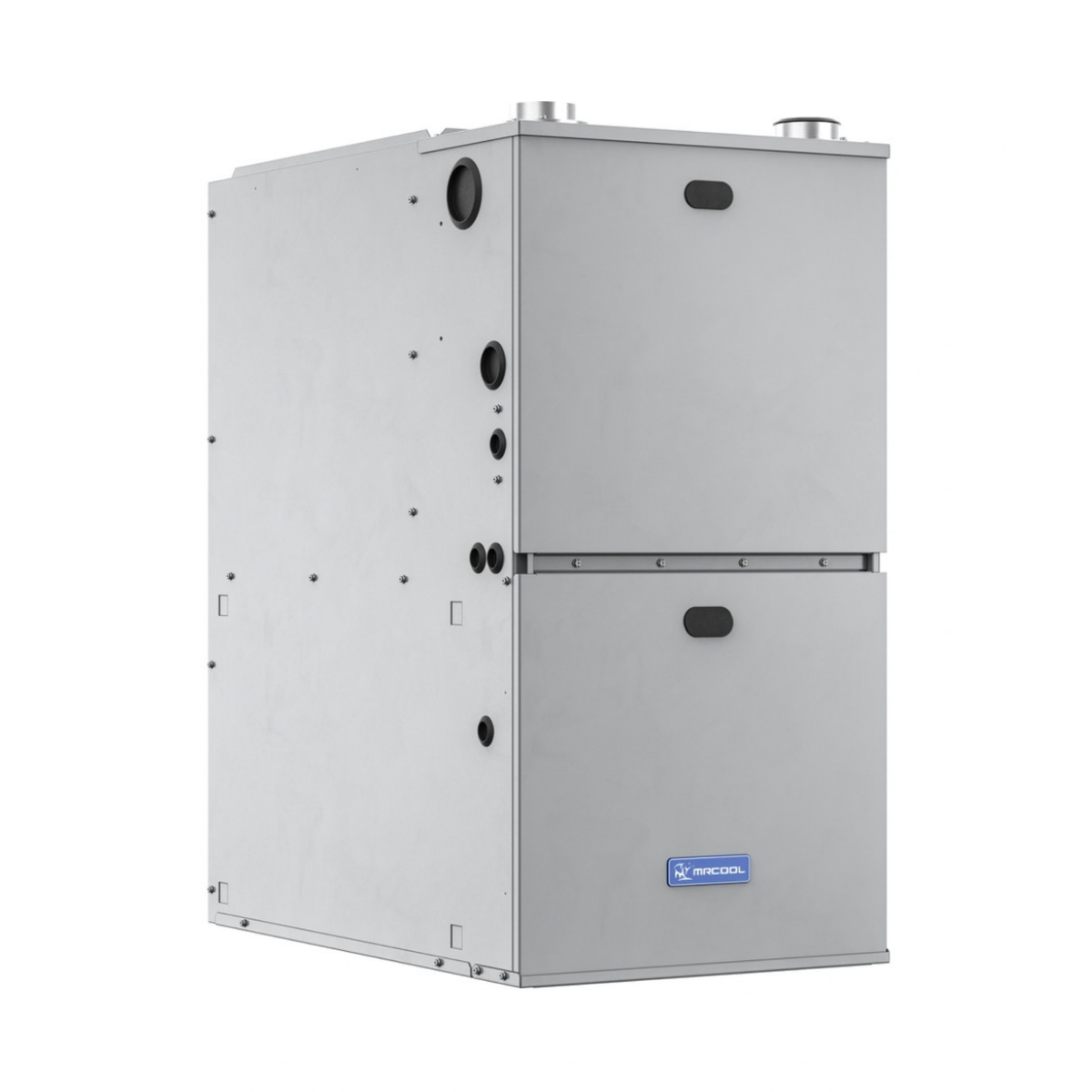

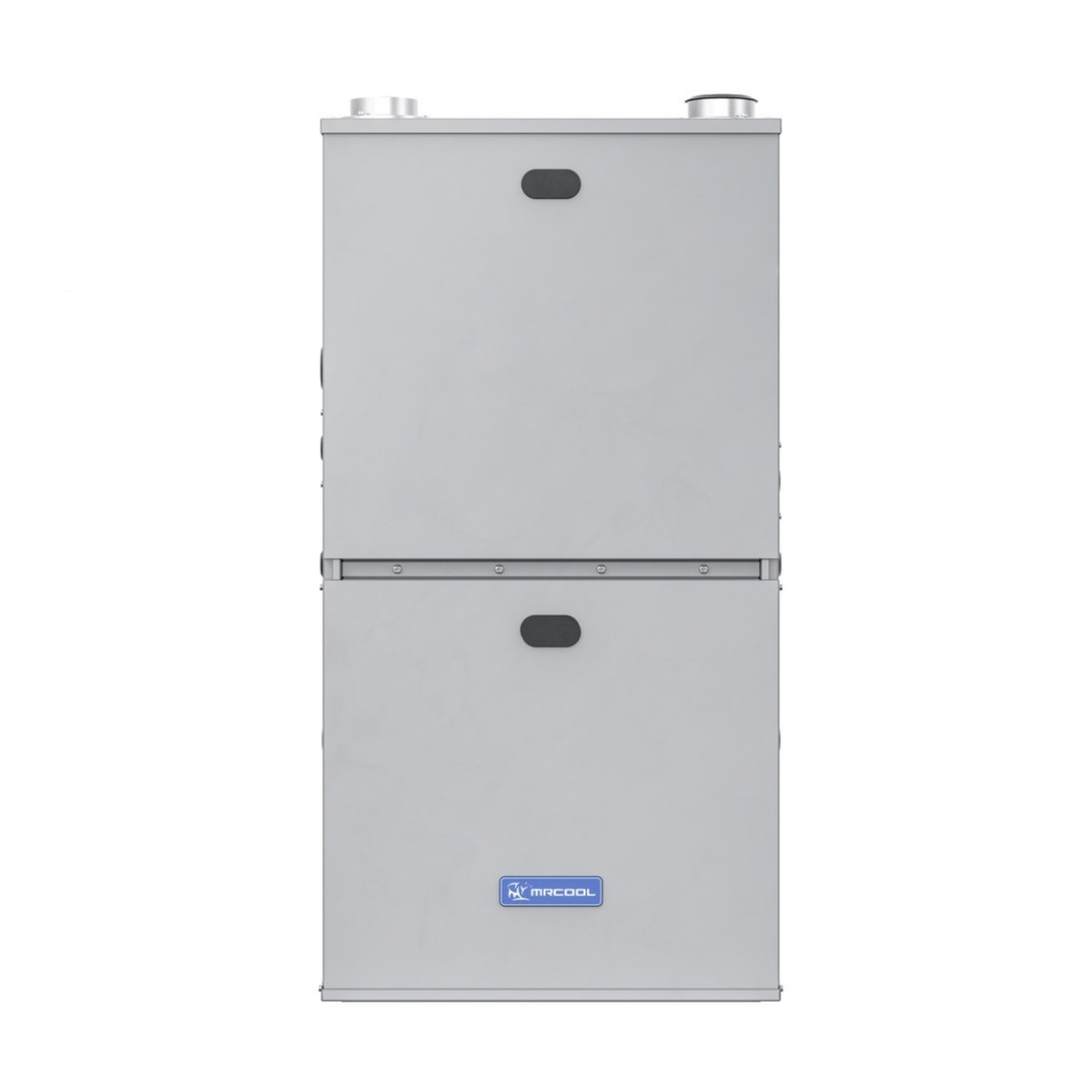

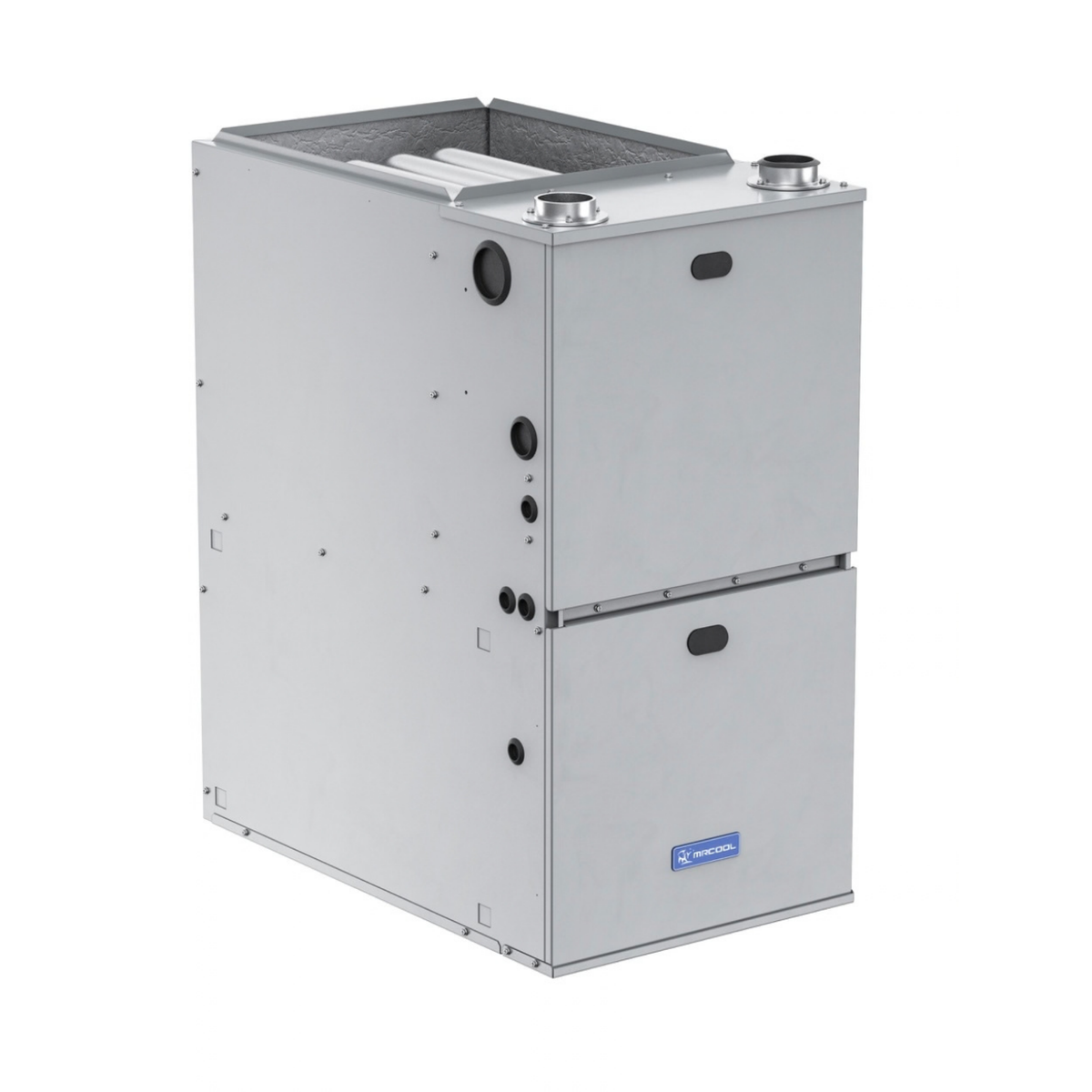

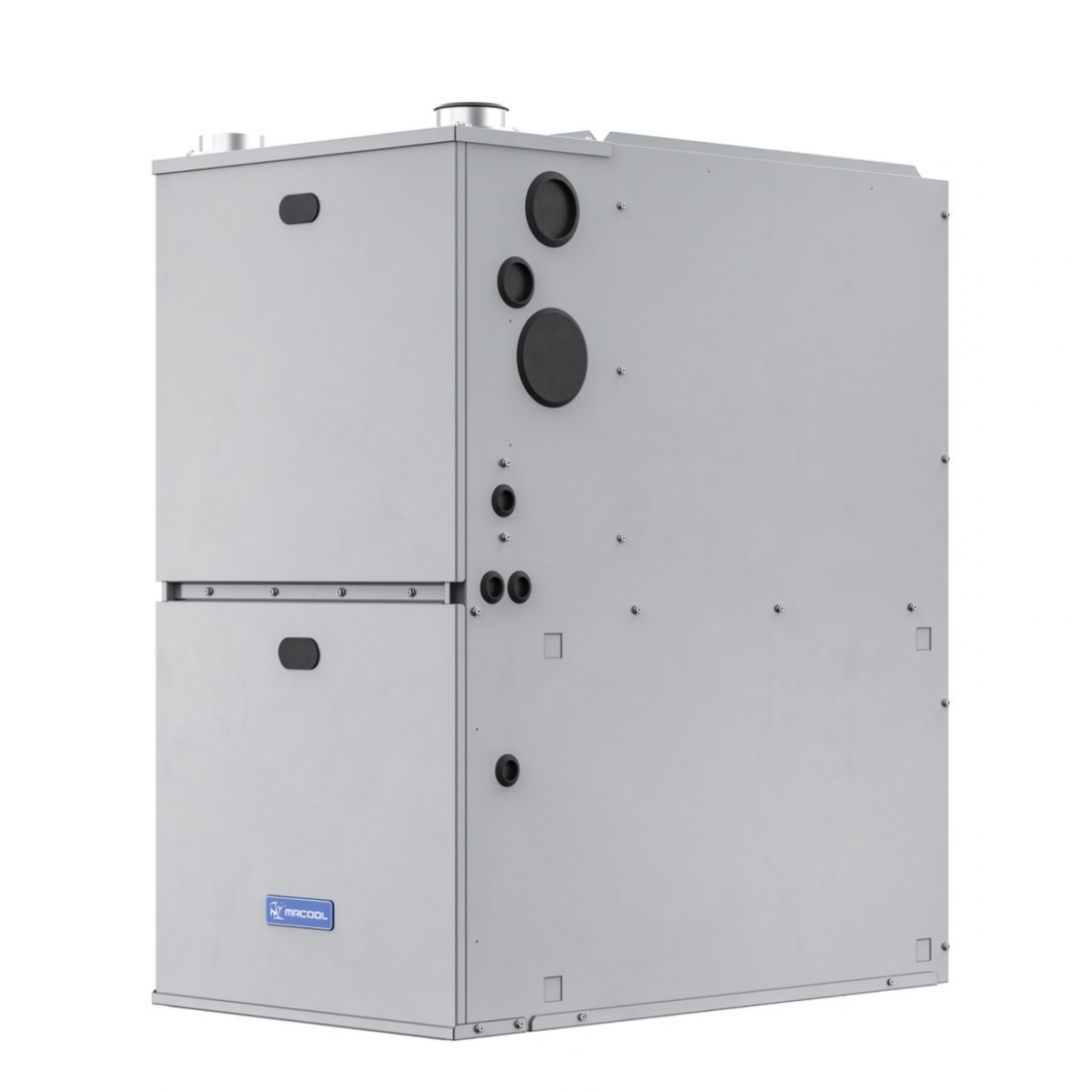

80,000 BTU 96% AFUE Two-Stage Gas Furnace

When gas heating is required, the MGM96EE080B3NB VersaPro furnace provides 80,000 BTU input and 76,000 BTU output with a 96% AFUE rating.

Its two-stage design allows the furnace to better adapt heating output to demand instead of relying on a single operating stage.

The furnace also features an ECM blower motor, aluminized steel tubular heat exchanger, stainless-steel secondary heat exchanger and upflow or horizontal installation capability.

It operates on 115V / 1 phase / 60 Hz, requires an 8A MCA, and has a 15A maximum fuse/breaker.

Natural gas is standard, with propane conversion available using the appropriate optional LP conversion kit. That is included.

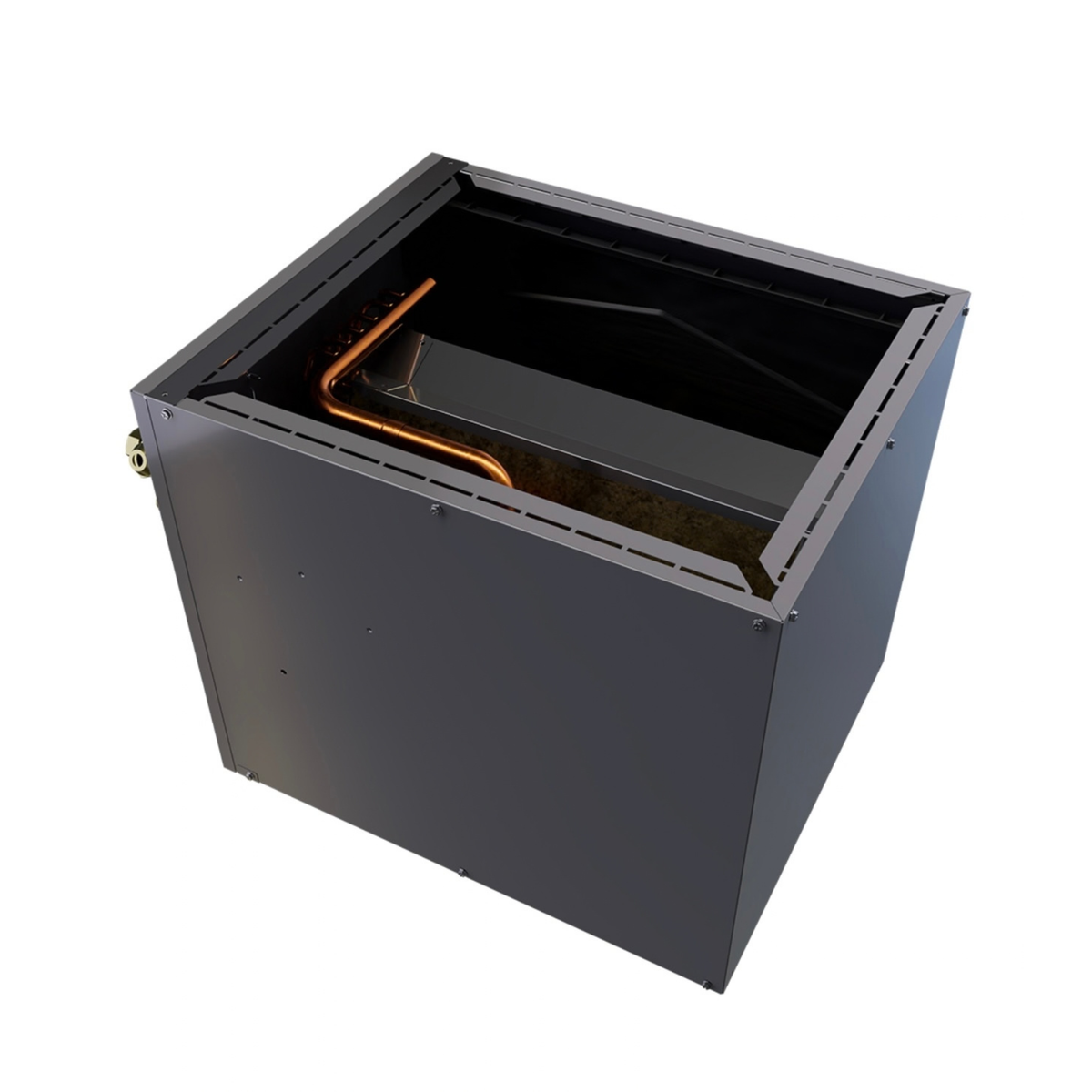

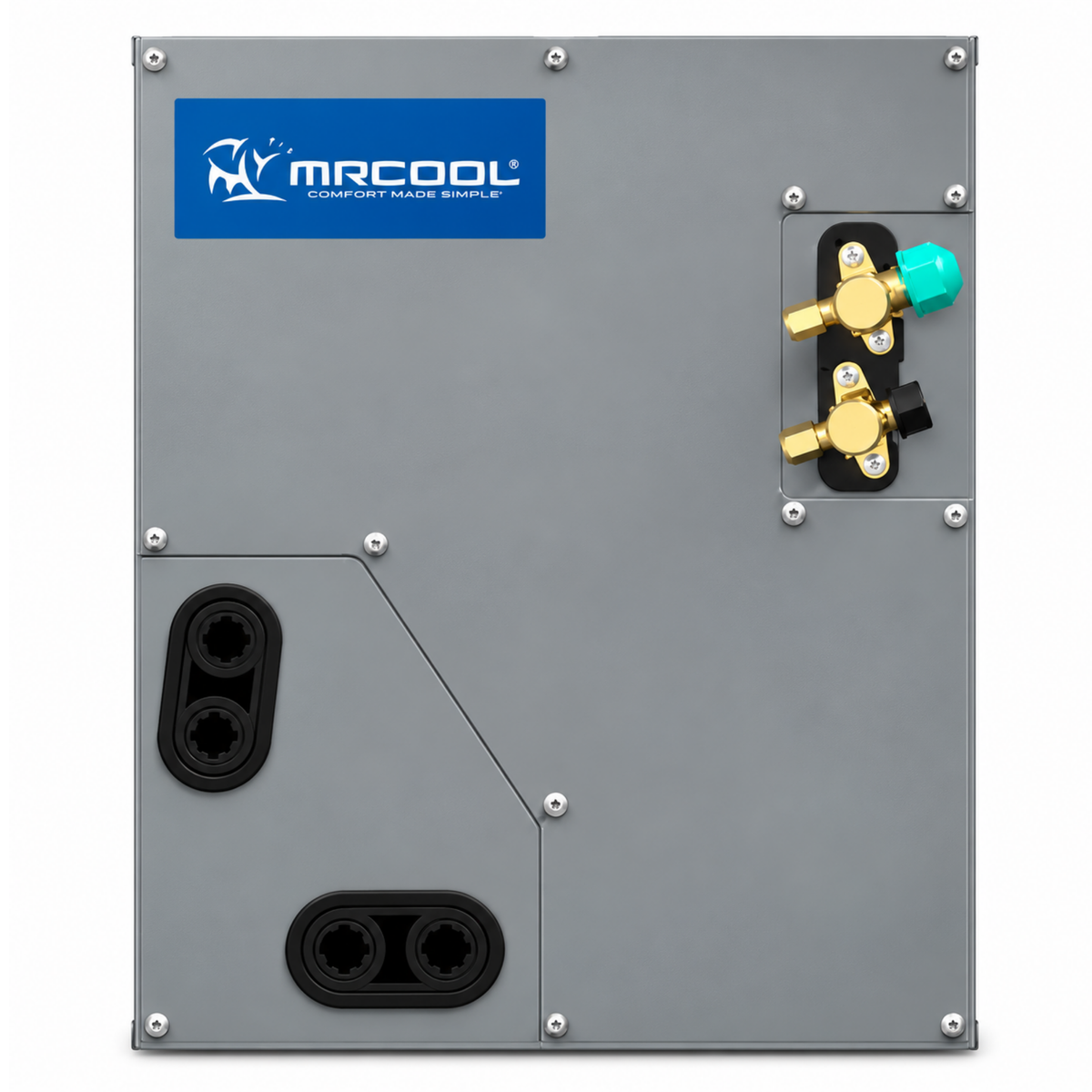

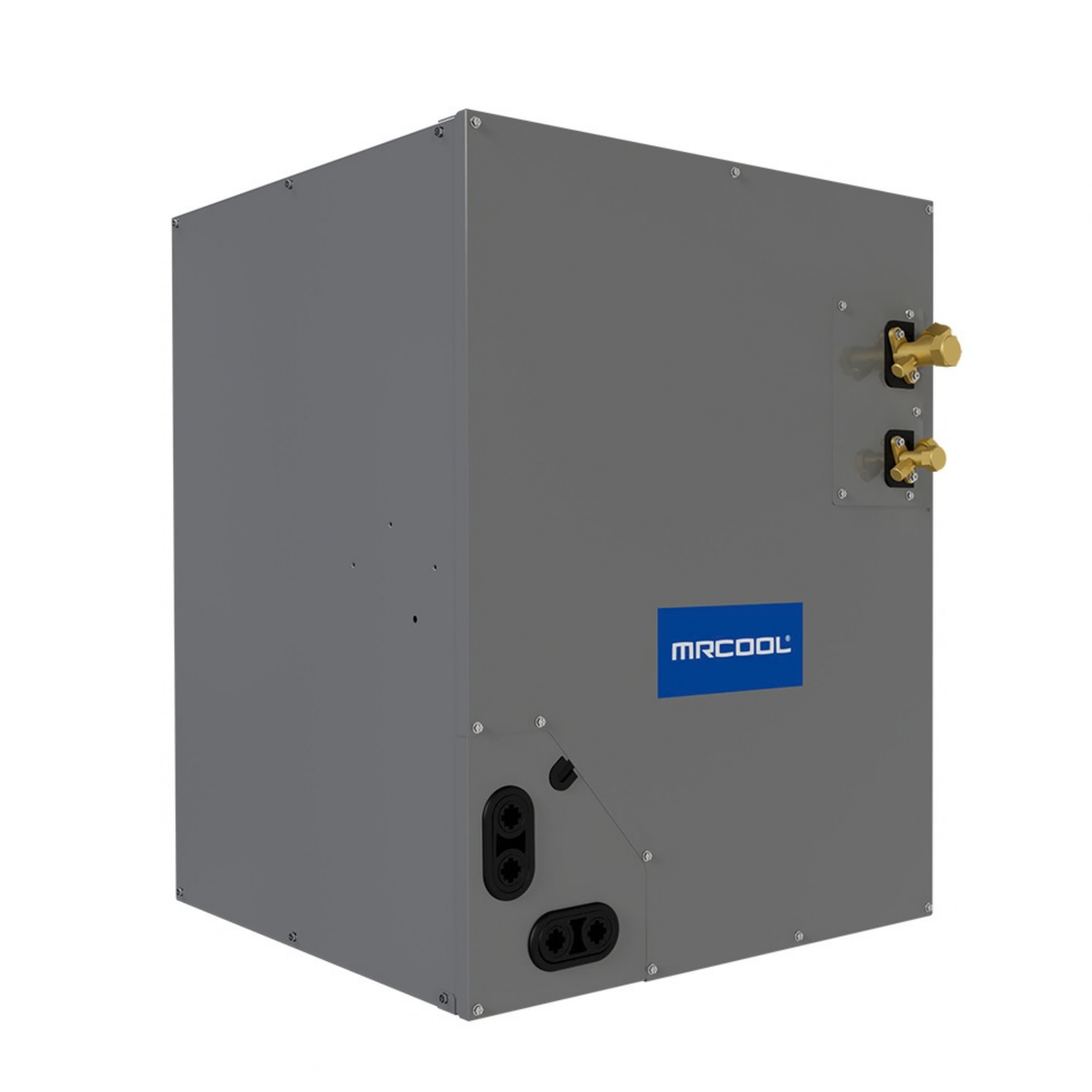

Pre-Charged R-454B Indoor Coil

The included MCMP1824BOTB is a 1.5–2 ton, 17.5-inch cased evaporator coil pre-charged with R-454B refrigerant.

It supports multiple installation orientations and includes:

Upflow, downflow and horizontal configurations, a TXV metering device, dual front drain connections, a side drain pan for horizontal applications, CoolGuard® corrosion-resistant aluminum coil technology and an A2L refrigerant leak detection sensor.

No-Vac Quick Connect Compatibility

One of the major advantages of the Universal platform is line-set flexibility.

The Universal condenser is compatible with the appropriate MRCOOL® No-Vac® Quick Connect® line set, sold separately. This pre-charged and sealed line-set option can eliminate traditional vacuuming and flaring requirements associated with many conventional installations.

Standard installation methods may also be available when appropriate.

Line-set requirement: 3/8-inch liquid × 3/4-inch suction.

WHAT’S INCLUDED

1 × MRCOOL Universal 2 Ton Heat Pump Condenser
Model: UHP18024-O

1 × MRCOOL VersaPro 80K BTU 96% AFUE Gas Furnace
Model: MGM96EE080B3NB

1 × MRCOOL 1.5–2 Ton 17.5” Pre-Charged R-454B Cased Coil
Model: MCMP1824BOTB

Line set and other installation accessories are not included unless specifically selected or stated with the product configuration.

KEY FEATURES

This system combines 24K heating and cooling, up to 18.6 SEER2, DC inverter technology, an 80K BTU two-stage gas furnace, 96% AFUE, ECM blower technology, R-454B refrigerant, a pre-charged indoor coil, A2L leak detection, multi-position installation capability and compatibility with MRCOOL No-Vac Quick Connect line-set technology.



IMPORTANT ELECTRICAL INFORMATION

The outdoor heat pump and indoor gas furnace have separate electrical requirements.

Heat Pump Condenser – UHP18024-O: 208/230V, 1 phase, 60 Hz; MCA 19A; maximum fuse/breaker 20A.

Gas Furnace – MGM96EE080B3NB: 115V, 1 phase, 60 Hz; MCA 8A; maximum fuse/breaker 15A.

Electrical installation must follow the equipment documentation and applicable electrical codes.

WARRANTY

Warranty coverage varies by component and applicable registration requirements.

The Universal condenser lists a 10-year parts warranty and 2-year limited labor warranty. The furnace lists a 10-year parts warranty and lifetime heat-exchanger warranty, while the cased coil lists a 10-year parts warranty.



FAQ

Is this a dual-fuel HVAC system?

Yes. The system combines an electric heat pump with a gas furnace, providing heat-pump heating plus gas heating capability in the same central ducted system.

What size is the heat pump?

The UHP18024-O provides 24,000 BTU, or 2 tons, of rated heating and cooling capacity.

What is the efficiency rating?

The Universal condenser is rated up to 18.6 SEER2, up to 12 EER2, 10 HSPF2-4 and 8.1 HSPF2-5.

How efficient is the furnace?

The included VersaPro furnace has a 96% AFUE rating with 80,000 BTU input and 76,000 BTU output.

Does this system use R-454B refrigerant?

Yes. The heat pump and pre-charged indoor coil are designed for R-454B.

Is the indoor coil pre-charged?

Yes. The MCMP1824BOTB is a pre-charged R-454B cased coil.

What line-set size does it require?

The system uses a 3/8-inch liquid line and 3/4-inch suction line.

Can I use a MRCOOL No-Vac line set?

The Universal condenser is compatible with the appropriate MRCOOL No-Vac Quick Connect line-set option. The correct line-set configuration must be selected for the installation.

Is this a DIY mini-split?

No. This is a central ducted dual-fuel split HVAC system, not a ductless mini-split. Proper sizing, configuration and installation requirements still apply even when No-Vac line-set components are used.

Can the furnace use propane?

The furnace is designed for natural gas and can be converted for propane operation using the appropriate optional LP conversion kit. That is included with the furnace.
