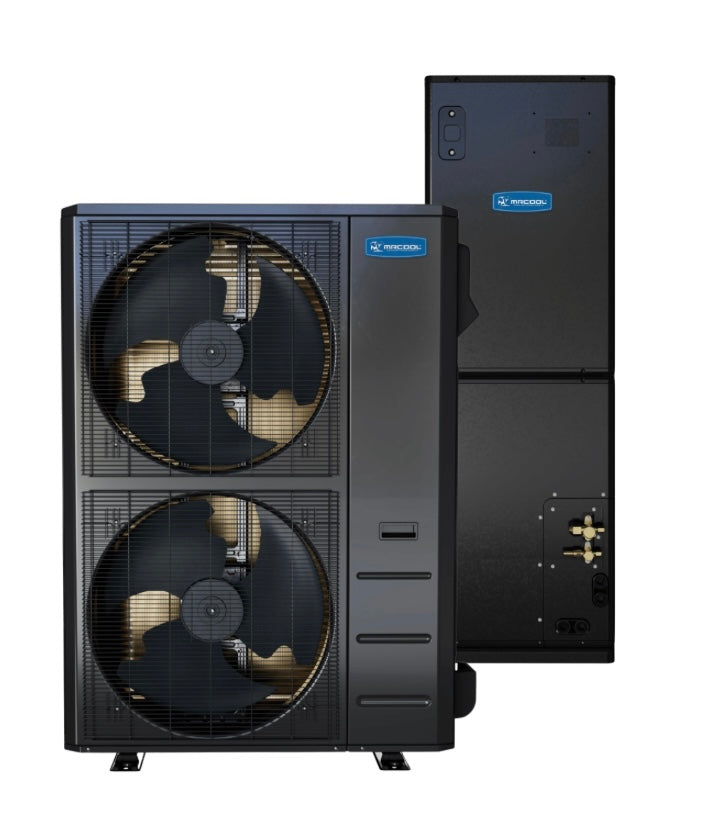

MRCOOL® Universal Series 60,000 BTU (5 Ton) Multi-Position Air Handler & Heat Pump Inverter Split System - R-454B Refrigerant, UHP1860AH1860-O

Introducing the MRCOOL® Universal Series, a cutting-edge heating and cooling solution designed to deliver optimal comfort year-round. Engineered for efficiency, this 5 Ton MRCOOL System is equipped with a DC Inverter condenser that adjusts its performance to achieve your ideal temperature with remarkable energy savings. Whether in the sweltering heat of summer or the coldest winter months, this system ensures consistent, reliable comfort.

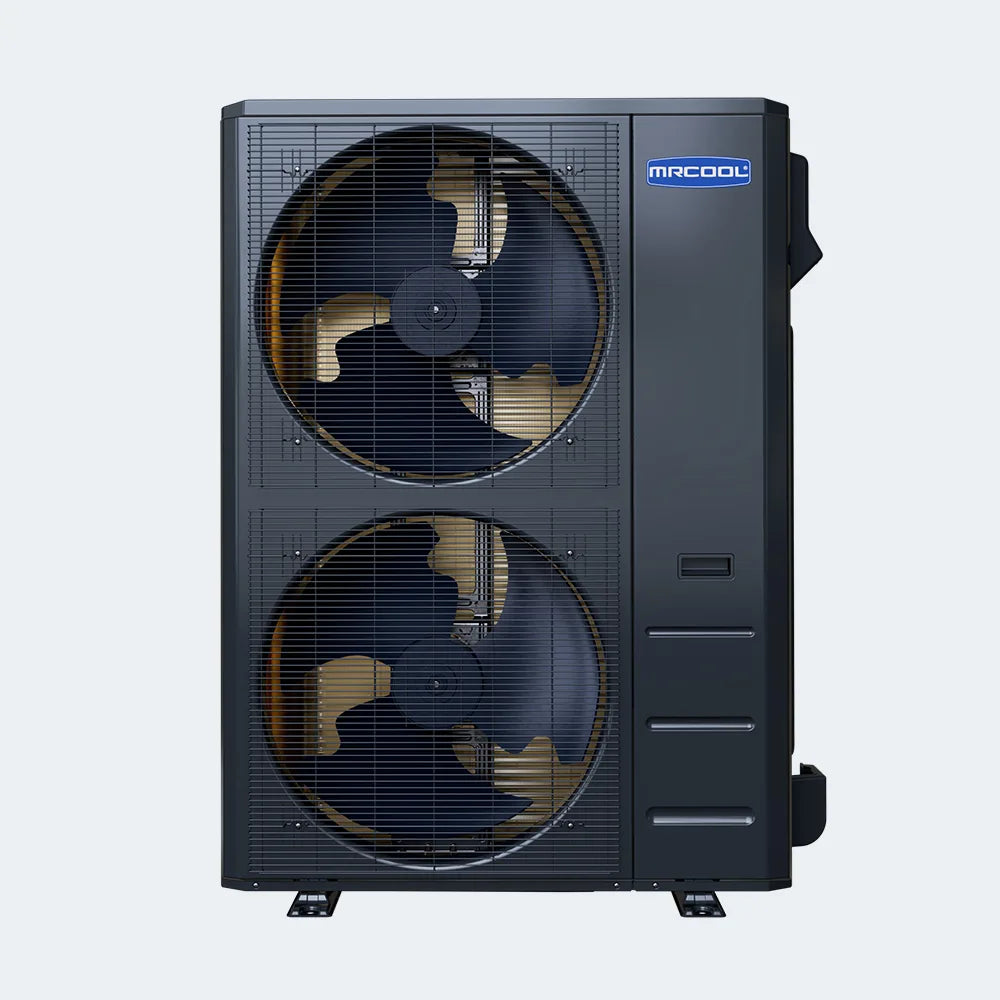

Condenser

The MRCOOL® 5 Ton Universal Central Heat Pump Condenser represents the pinnacle of HVAC innovation. Its superior performance not only ensures excellent cooling and heating but also operates at impressively low noise levels. With an environmentally friendly design, this condenser maximizes energy efficiency and comfort.

• Efficiency Ratings: 17.5 SEER2
• Operating Temperature:  Heat -13 @ 100% down to -22°F to 122°F
• Compatibility: Works seamlessly with third-party air handlers and thermostats, including WiFi-enabled models like Nest and Honeywell
• Features:
  • Rapid cooling and heating capability
  • Internal fan blade design for quiet operation
  • Pre-charged with eco-friendly R454B refrigerant
• Certifications: ETL and AHRI certified

Air Handler

The MRCOOL® Universal 5 Ton Air Handler is built for performance and quiet operation, driven by a powerful DC fan motor. Its thoughtful design ensures maximum efficiency and reliability while providing versatile installation options.

• Efficiency Rating: Up to 17.5 SEER2
• Connection Types: Patented Pre-Charged No-Vac, Sweat Braze Fitting, and Flare Fitting
• Safety Features: Fire-proof electrical box designed to prevent electric shock; reserved space for circuit breaker installation
• Filter: 20x20x1
• Installation: Flexible multi-position options (upflow, downflow, or horizontal)
• Condensation Protection: Dual-layer protection for enhanced safety

What’s Included

1 MRCOOL® 5 Ton Universal Central Heat Pump 60k btu Condenser

1 MRCOOL® Universal 5 Ton 60k Btu Air Handler

SPECIFICATIONS & DIMENSIONS

DIMENSIONS

Condenser Dimensions	34.78" W x 16.34" D x 52.48" H
Air Handler Dimensions	21.50" W x 21.50" D x 55.94" H
Condenser Weight	242.95 lbs
Air Handler Weight	188.05 lbs
CAPACITY & PERFORMANCE
Cooling Capacity	54,000 BTU
Outdoor Operating Temperature (Cooling)	-22°F to 122°F
SEER2	17.5
EER2	12
Heating Capacity	55,000 BTU
Outdoor Operating Temperature (Heating)	-22°F to 75°F
HSPF2-4	9.5
HSPF2-5	7.7
Coverage Area	Up to 2,500 sq. ft.
Outdoor Noise Level	64 dB(A)
Indoor Noise Level (Turbo/Hi/Mi/Lo)	60 / 57 / 54 / 37 dB(A) dB(A)
ELECTRICAL REQUIREMENTS
Condenser	Voltage: 208-230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 40A Min Circuit Ampacity: 40A
Air Handler	Voltage: 115/208/230V Phase: 1 Cycle: 60 Hz Max Fuse Breaker: 15A Min Circuit Ampacity: 14.5/10A



REFRIGERANT & PIPING
Refrigerant Type	R-454B
Refrigerant Volume	183.42 oz
Liquid Line Size	3/8"
Suction Line Size	3/4"
Max Line Set Length	246 ft.
FEATURES
Air Handler Mount Type	Multi-Position (Upflow/Downflow/Horizontal)
Filter Type	Replaceable
Filter Size	20" x 20" x 1"
Compressor Type	Rotary
Metering Device	EXV
Auxiliary Heater Included	No
Auxiliary Heater Available	Yes
Compatible Auxiliary Heater Sizes	10 KW / 15 KW / 20 KW
CERTIFICATIONS & WARRANTY
Certifications	UL Listed, CSA Listed, ETL Listed, AHRI Certified
Warranty	10 Year Parts and 2 Year Labor
