MRCOOL 1.5 Ton Central VersaPro Air Conditioner and 96% AFUE, 80K BTU 17.5" Gas Furnace Split System - Upflow or Horizontal- R-454B

Product Description

MGM96EE080B3NB-MCMP1824BOTB-MVP-18-HP-C-230A00-O

Short Description

Get efficient year-round heating and cooling with this MRCOOL® VersaPro® Dual Fuel Central Ducted System, combining an 18,000 BTU (1.5 Ton) variable-speed heat pump, 80,000 BTU input 96% AFUE two-stage gas furnace, and 1.5–2 ton pre-charged R-454B cased coil.

The heat pump provides efficient heating and cooling during normal conditions, while the high-efficiency gas furnace provides powerful supplemental heating when needed. With 18.8 SEER2, DC inverter technology, R-454B refrigerant, a pre-charged indoor coil, and flexible installation options, this matched bundle delivers dependable whole-home comfort.

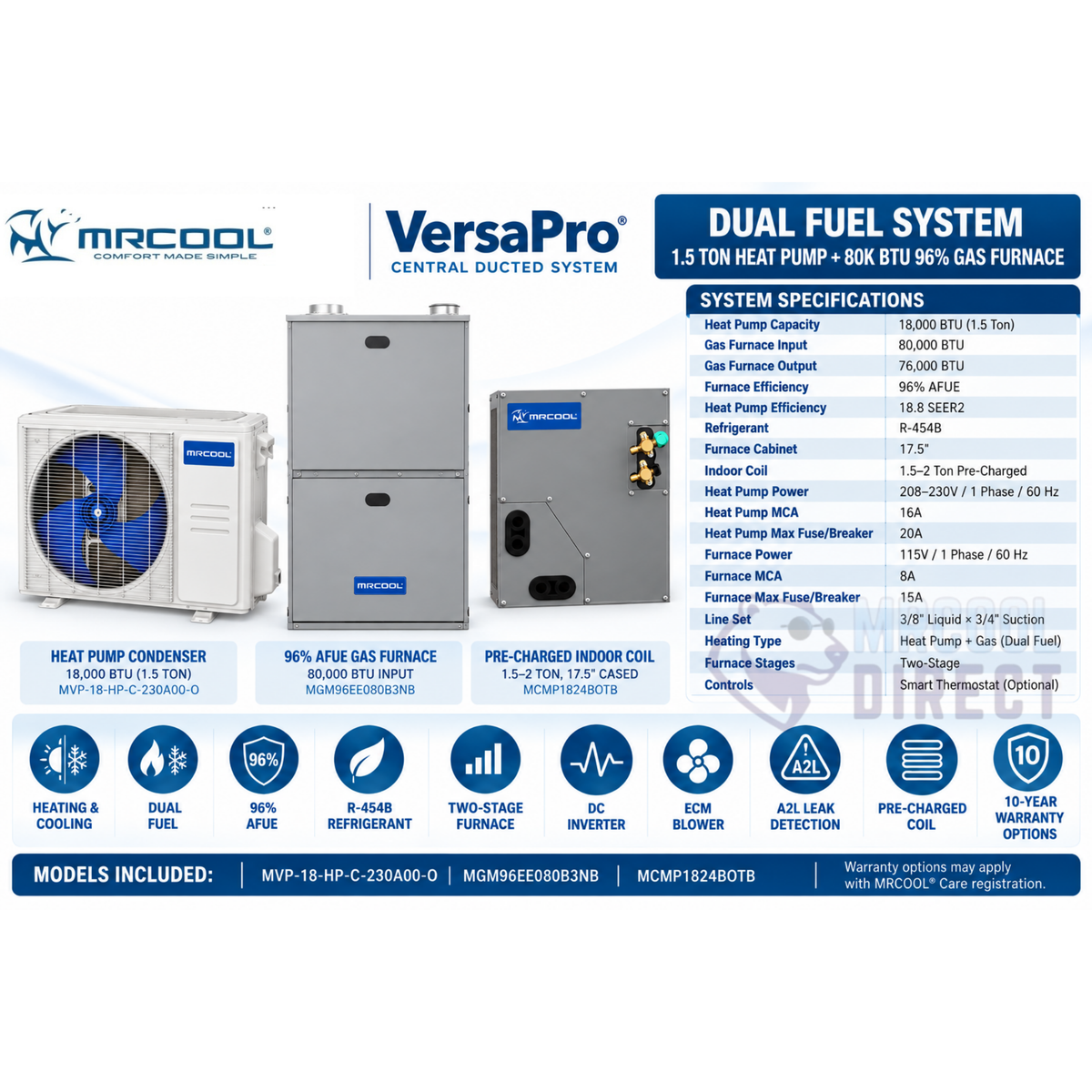

Models Included: MVP-18-HP-C-230A00-O + MGM96EE080B3NB + MCMP1824BOTB

Long Product Description

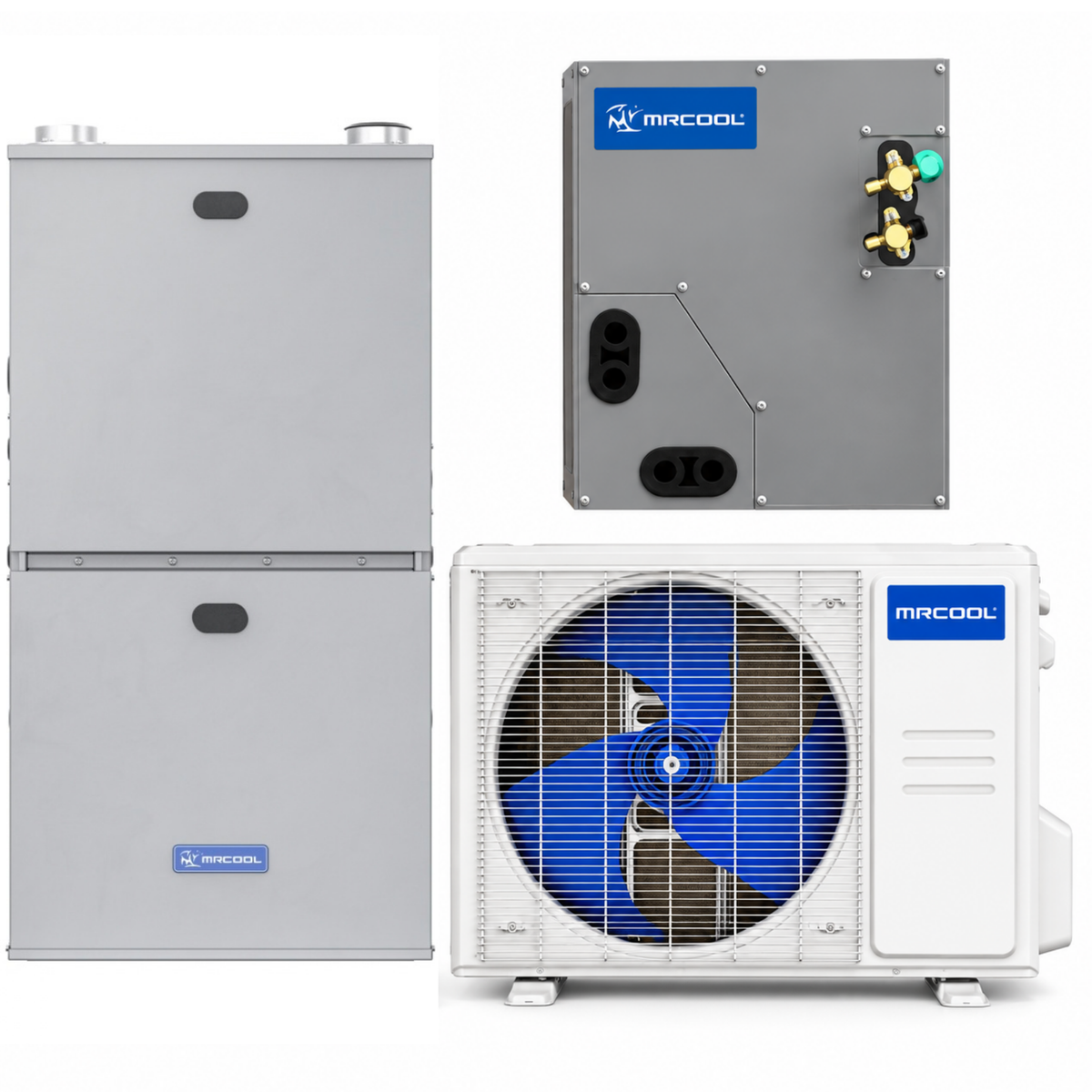

MRCOOL® VersaPro® 1.5 Ton Dual Fuel Central Ducted HVAC System

Get the flexibility of an electric heat pump and the powerful heating performance of a high-efficiency gas furnace in one central ducted system.

This MRCOOL® VersaPro® dual fuel bundle combines an 18,000 BTU variable-speed heat pump condenser, an 80,000 BTU input two-stage 96% AFUE gas furnace, and a 1.5–2 ton pre-charged R-454B indoor coil.

The result is a versatile heating and cooling solution designed to provide efficient comfort throughout the year while utilizing your home’s existing ductwork.

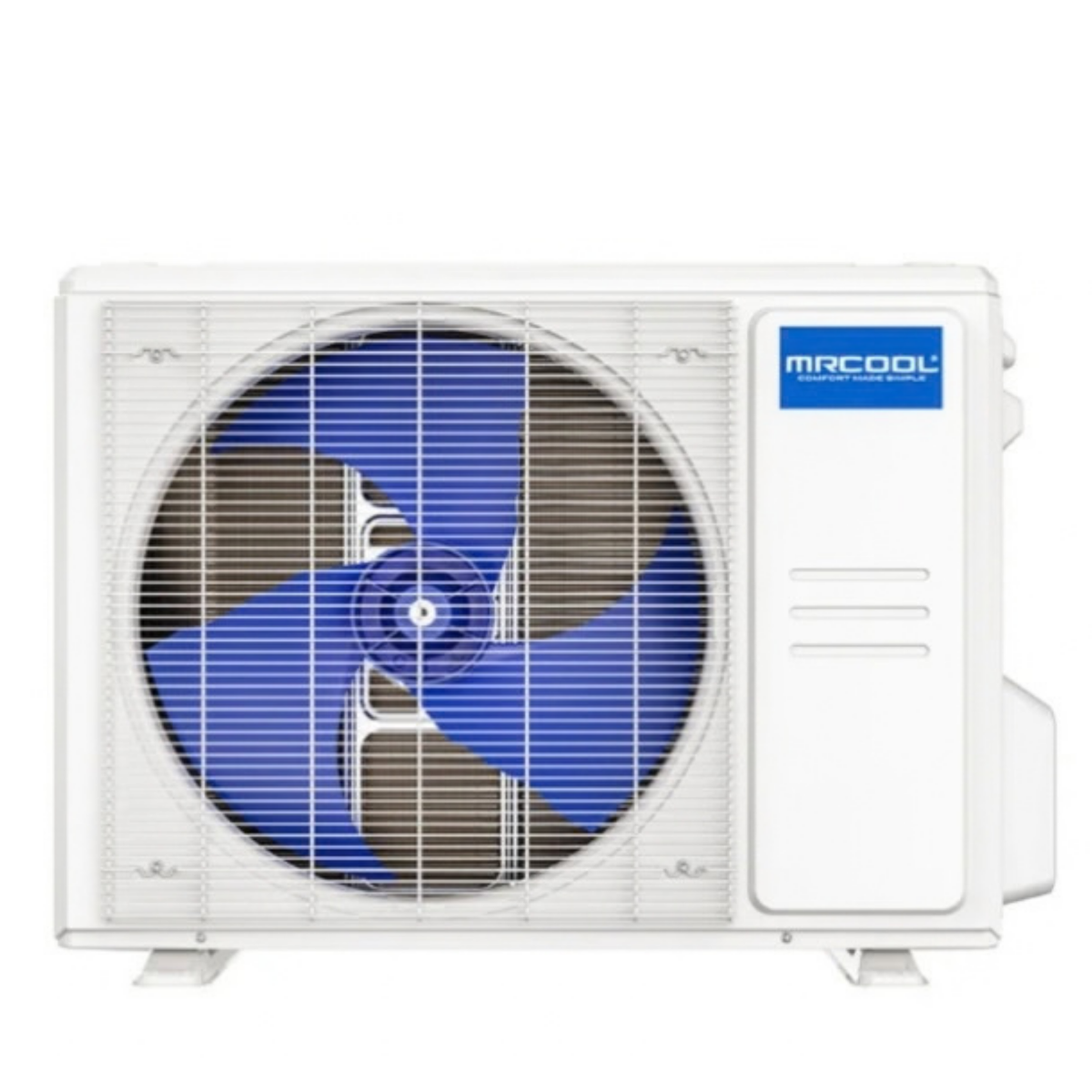

18,000 BTU Variable-Speed Heat Pump

At the heart of the system is the MVP-18-HP-C-230A00-O VersaPro Central Ducted Heat Pump Condenser.

With a rated cooling and heating capacity of 18,000 BTU, this 1.5-ton condenser uses DC inverter technology to adjust operation based on changing heating and cooling demand rather than relying solely on traditional fixed-speed operation.

Performance ratings include:

18.8 SEER2
11 EER2
9.1 HSPF2 Region IV
7 HSPF2 Region V

The side-discharge condenser also operates at a rated sound level of 55 dBA, providing powerful performance from a compact outdoor unit.

Dual Fuel Heating

This system combines two different sources of heat.

During suitable outdoor conditions, the VersaPro heat pump can provide efficient electric heating. The system also includes the MGM96EE080B3NB gas furnace, providing powerful gas heating when called for by the system’s controls.

This dual fuel configuration gives homeowners the benefit of heat-pump efficiency along with the heating capability of a high-efficiency gas furnace.

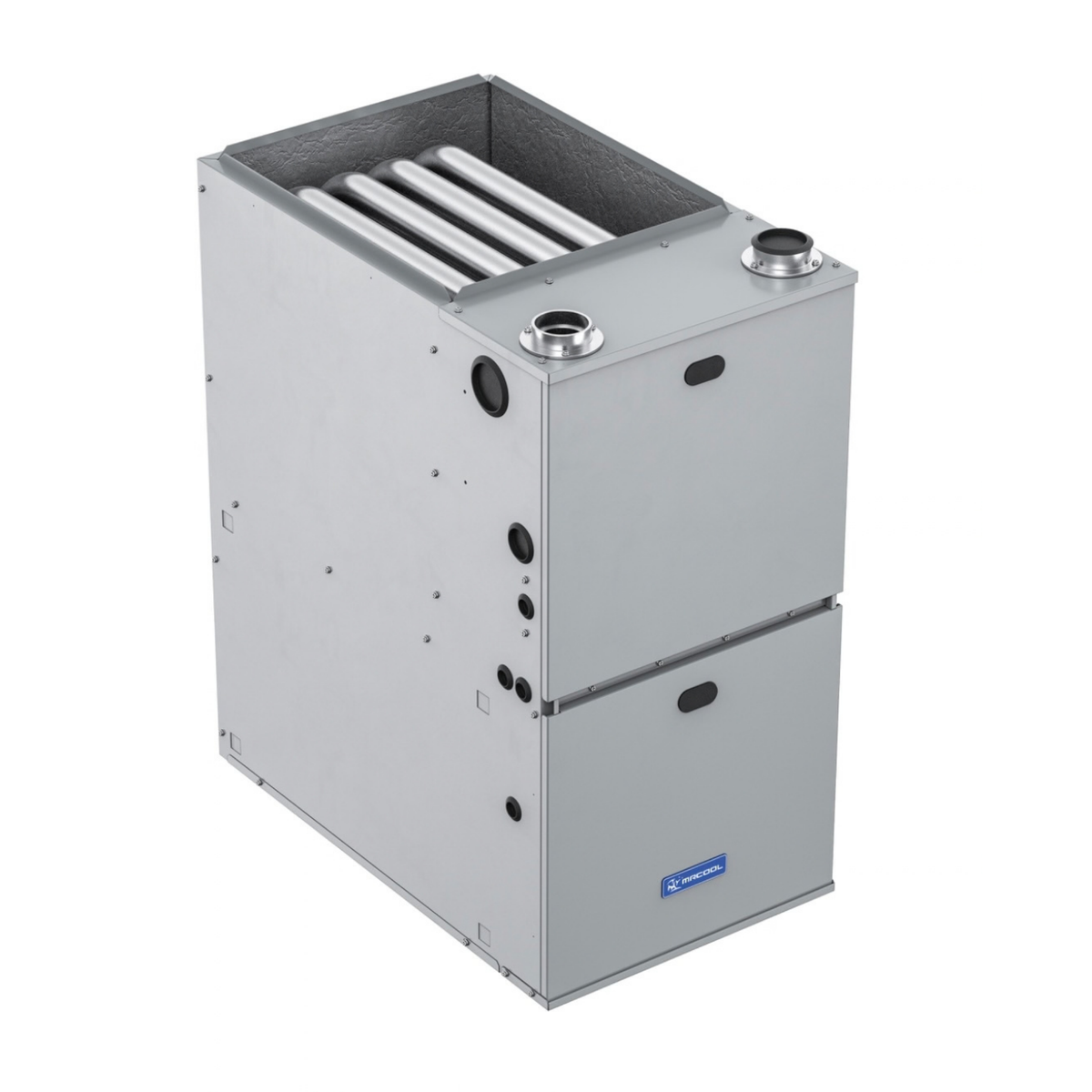

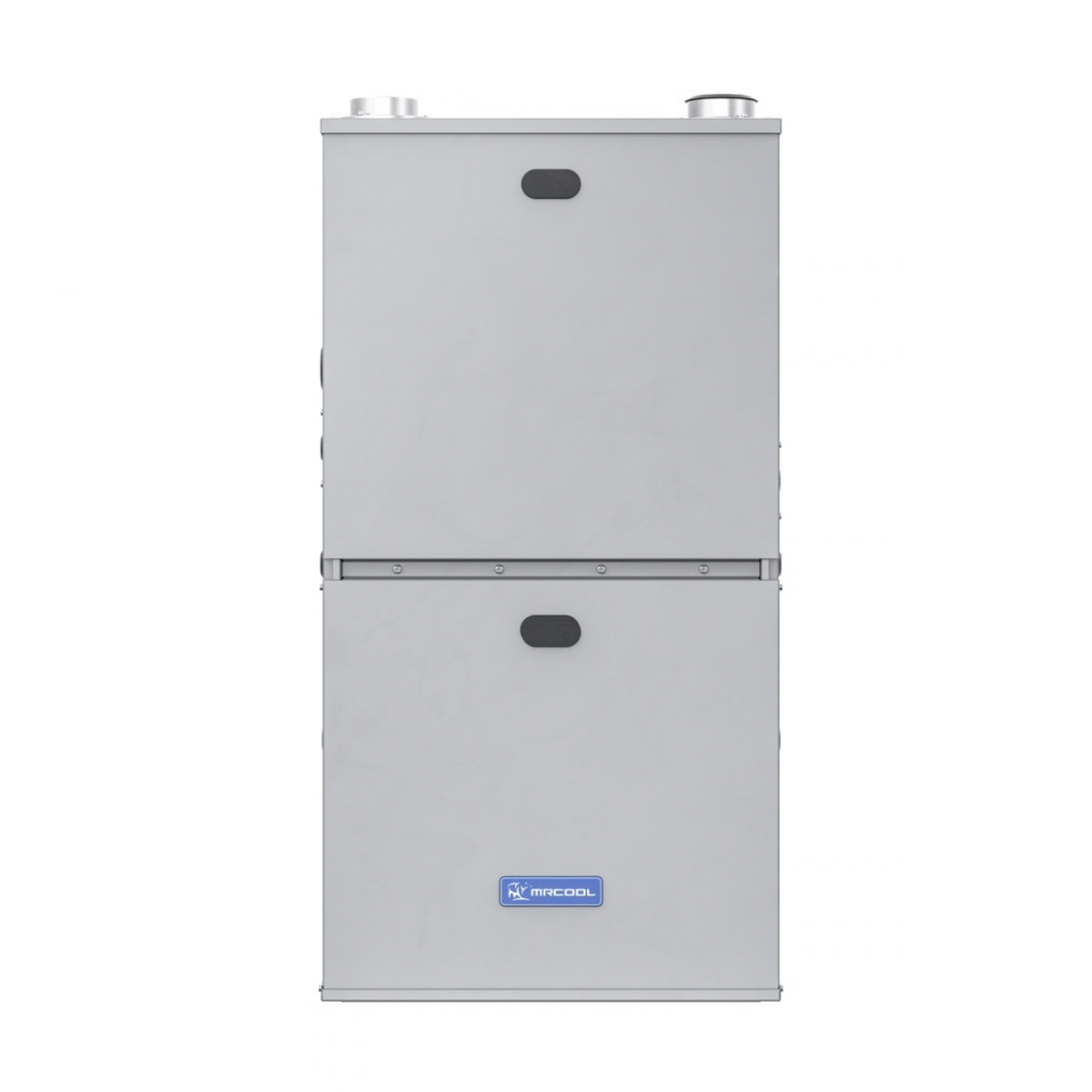

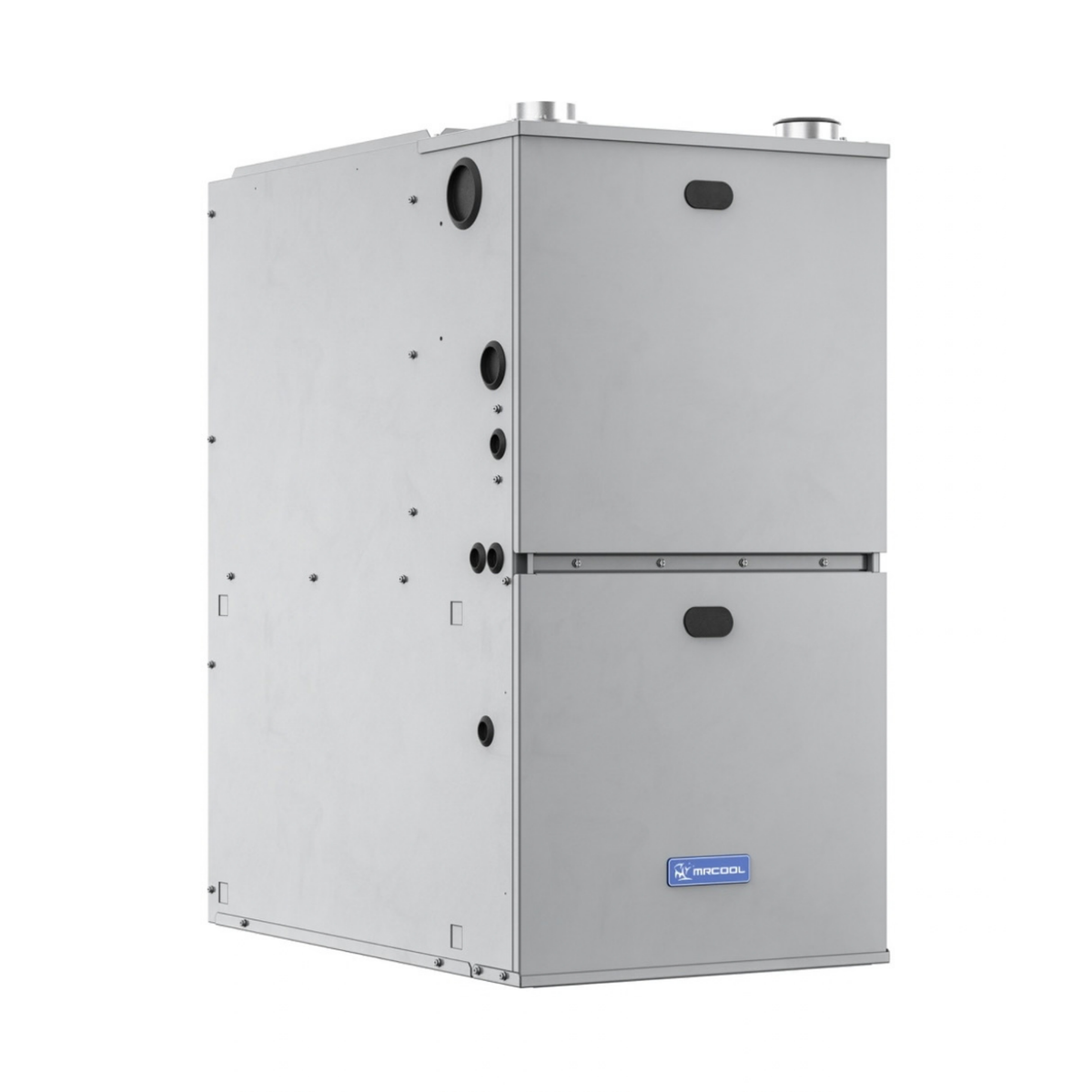

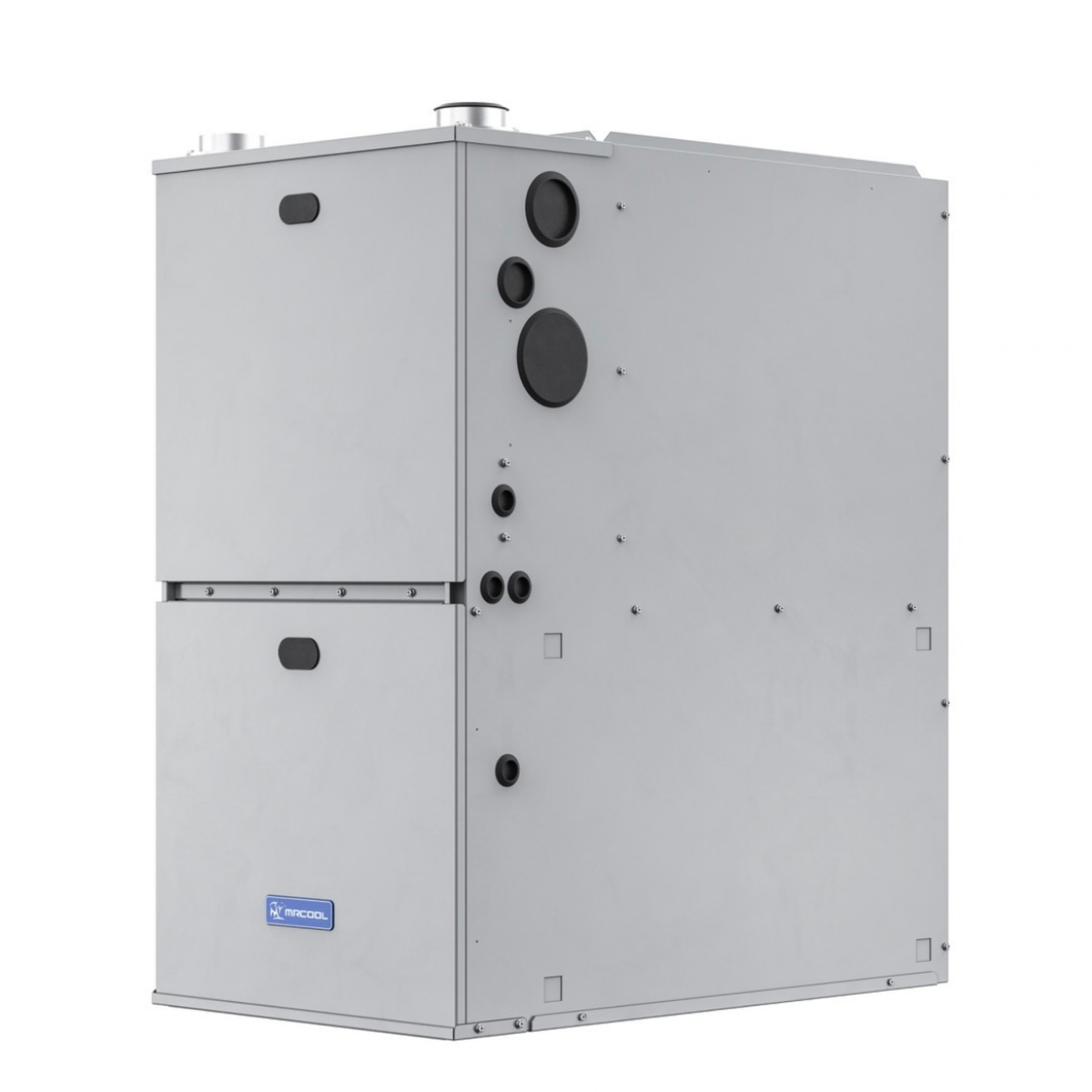

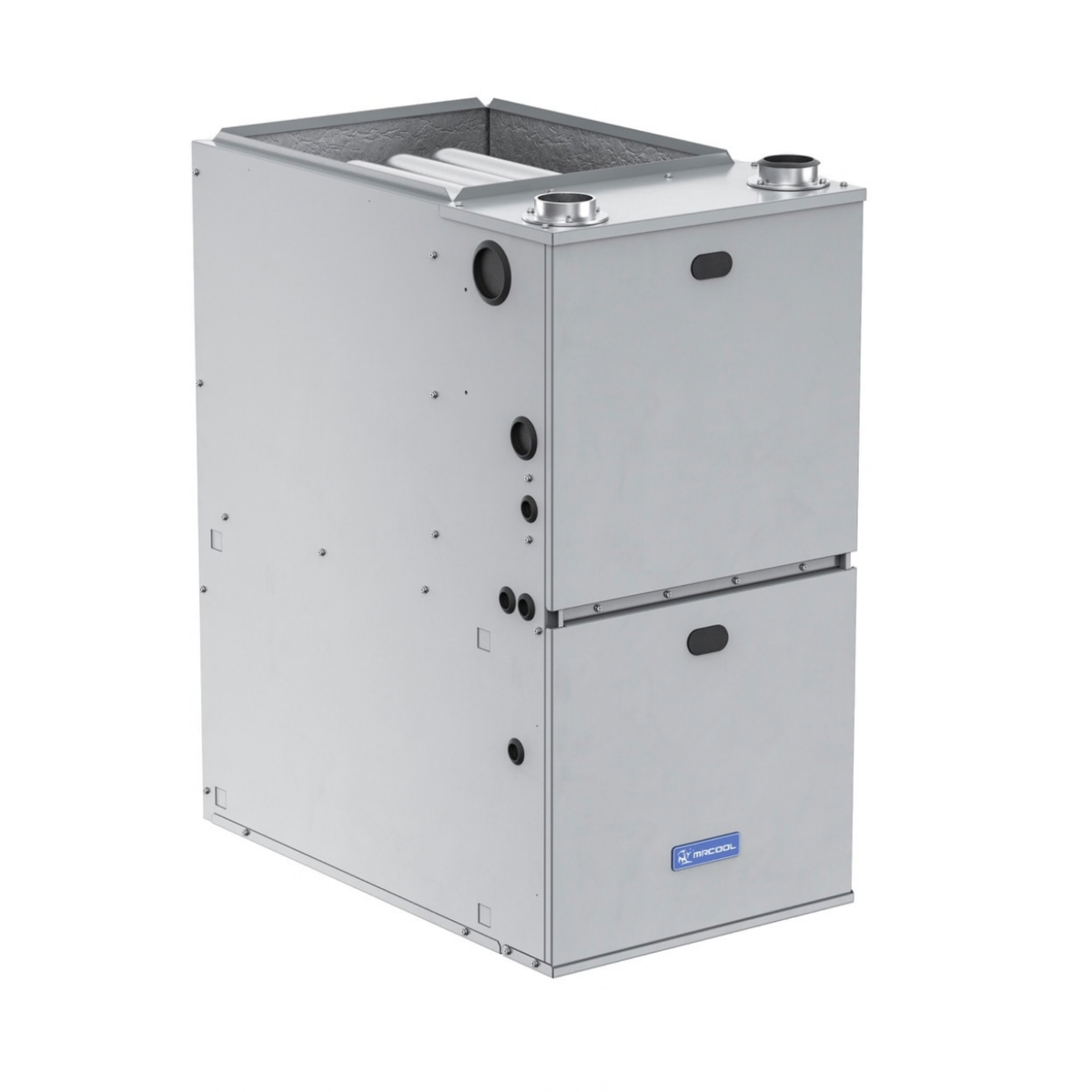

80,000 BTU 96% AFUE Two-Stage Gas Furnace

The included VersaPro gas furnace provides:

80,000 BTU input
76,000 BTU output
96% AFUE
Two-stage operation
ECM blower motor
3/4 HP blower motor

Its two-stage design allows the furnace to better match heating demand, while the ECM blower provides efficient air movement throughout the home’s duct system.

The furnace is configured for up-flow or horizontal installation and supports left- or right-side gas and electrical connections.

Natural gas operation is standard, with conversion to propane available using the appropriate optional LP conversion kit. That is included.

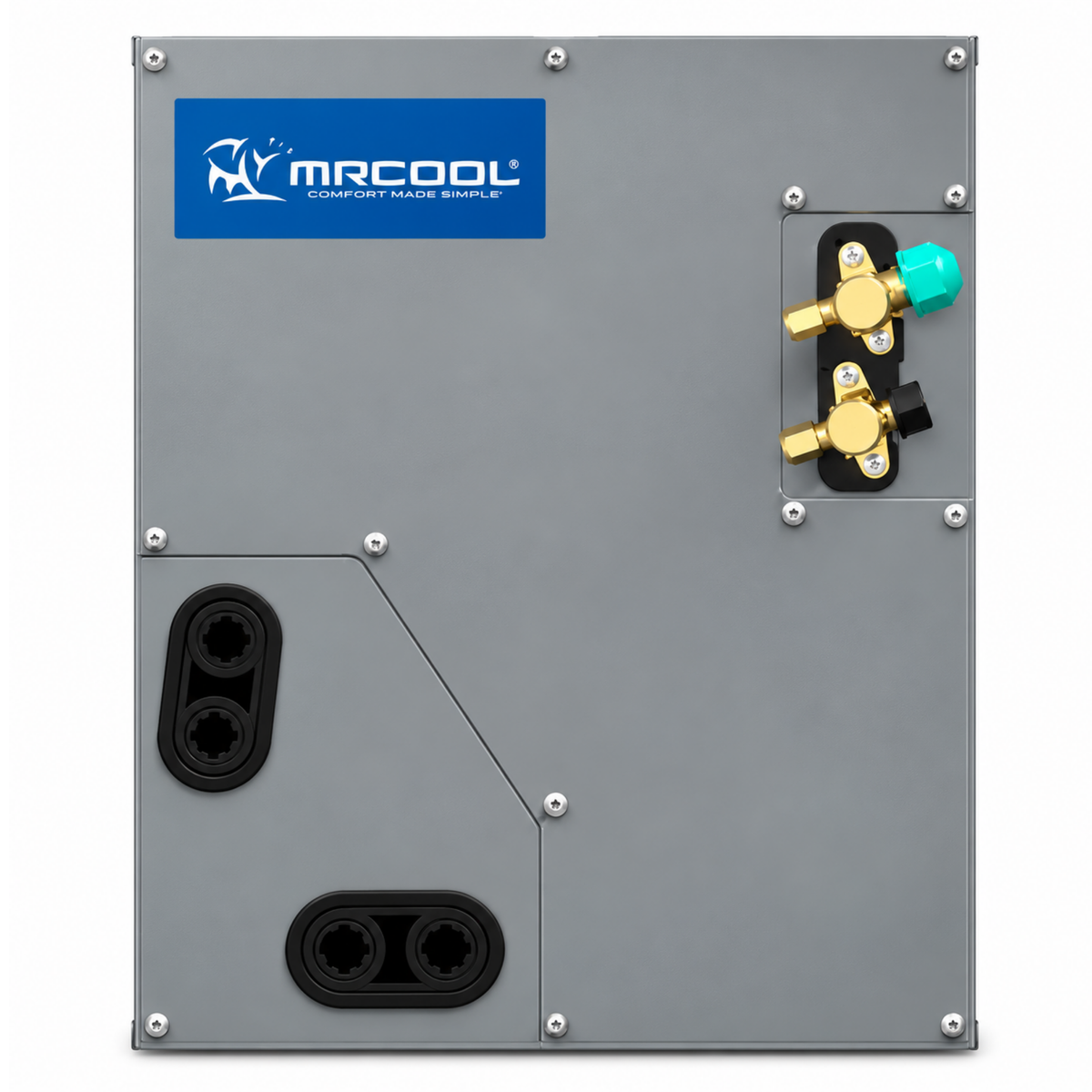

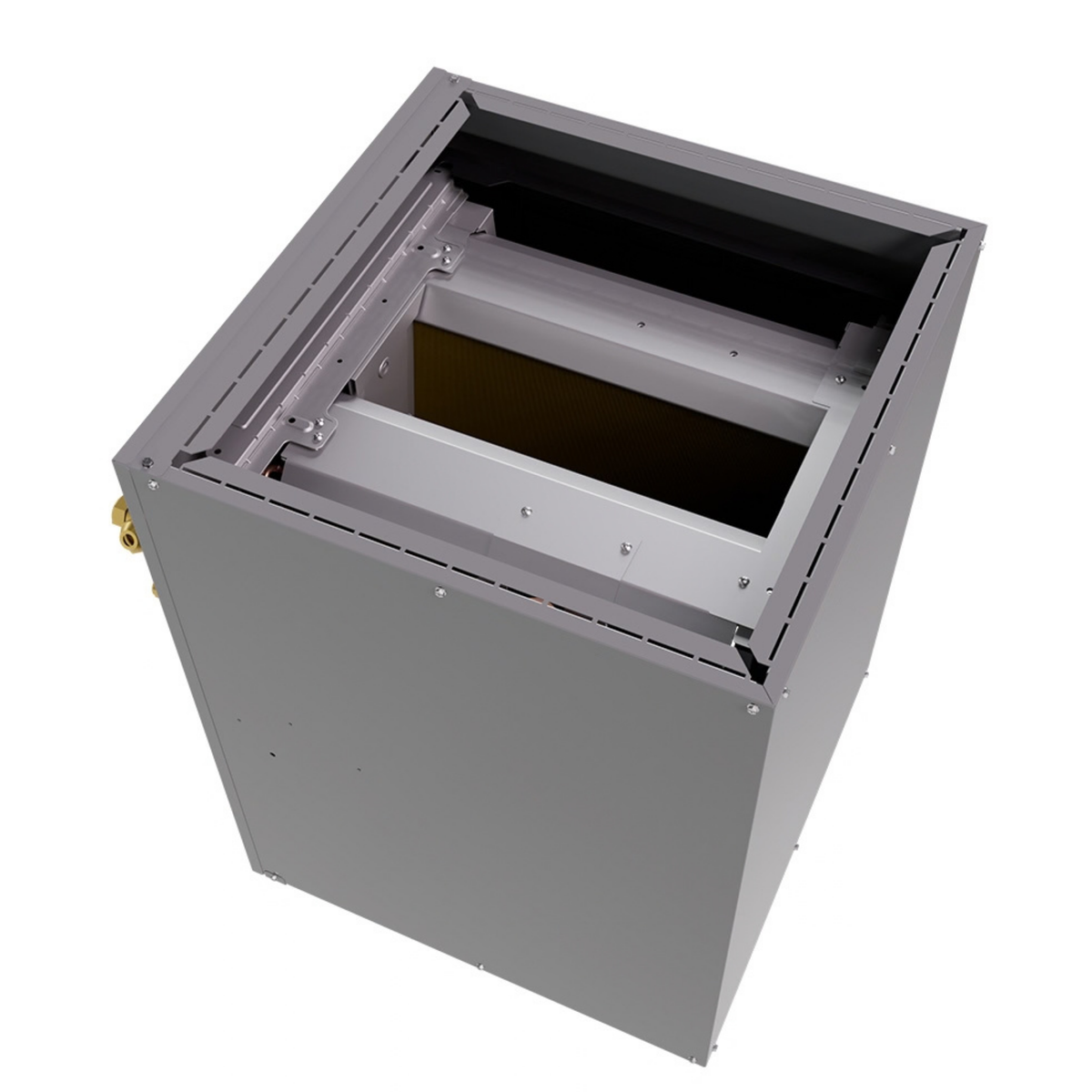

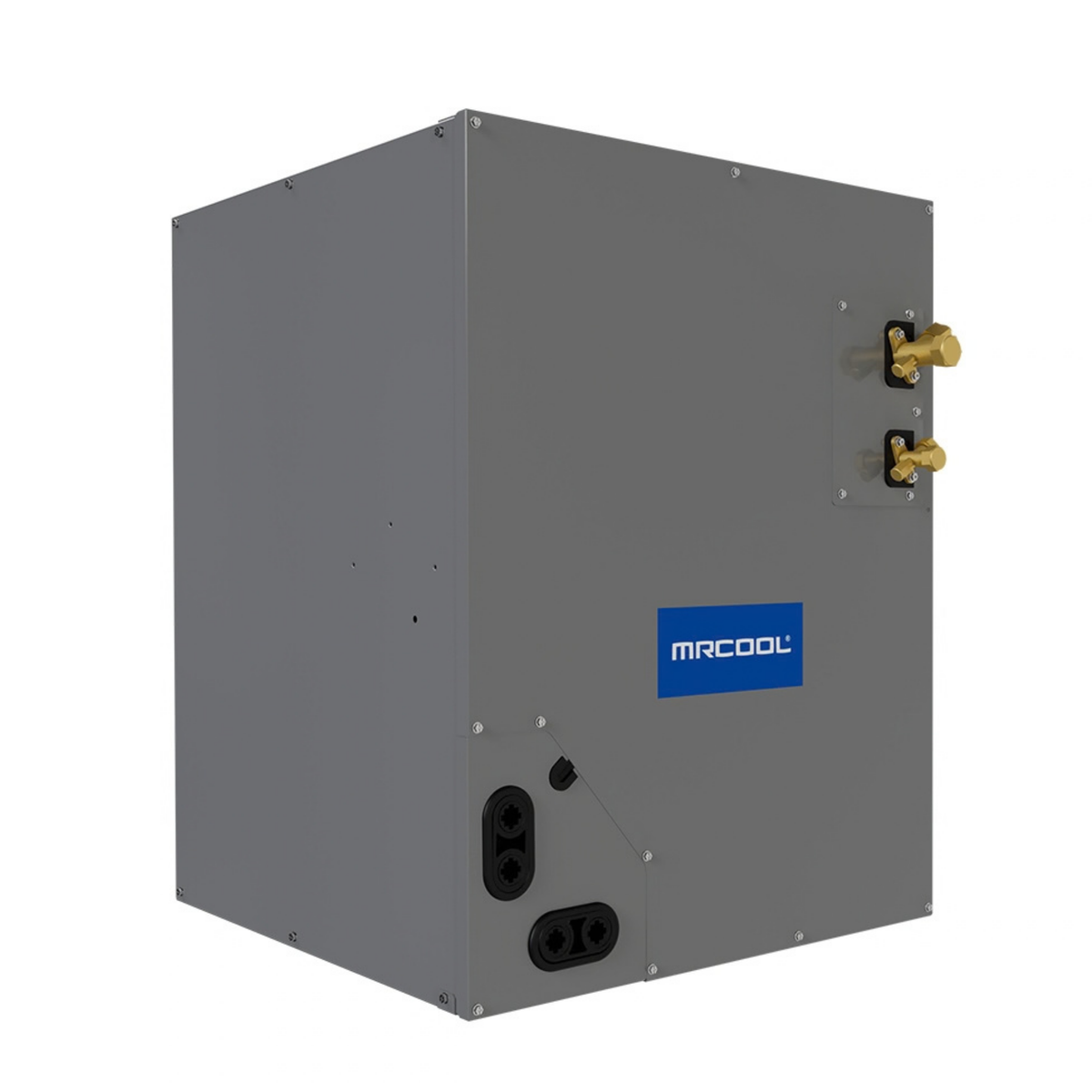

Pre-Charged R-454B Indoor Coil

The included MCMP1824BOTB is a 1.5–2 ton, 17.5-inch cased indoor coil pre-charged with R-454B refrigerant.

It supports:

Upflow installation
Downflow installation
Horizontal installation

The coil features a TXV metering device, dual front drain connections, a built-in side drain pan for horizontal applications, and CoolGuard® corrosion-resistant aluminum coil technology.

An integrated A2L refrigerant leak detection sensor adds another important component for use with the system’s R-454B refrigerant.

R-454B Refrigerant

The VersaPro condenser and indoor coil utilize R-454B refrigerant, an A2L refrigerant developed as a lower-GWP alternative to older refrigerants used in residential HVAC systems.

The condenser is factory charged with 51.15 oz. of R-454B, while the indoor coil is also supplied pre-charged.

Flexible Line Set Options

The system uses:

Liquid line: 3/8”
Suction line: 3/4”

NV15-3834-O-A

NV25-3834-O-A

NV35-3834-O-A

NV50-3834-O-A



Depending on the installation configuration, compatible MRCOOL® No-Vac® Quick Connect® or appropriate standard HVAC line-set connections may be used.

Installation requirements vary by configuration. Always follow the applicable MRCOOL installation manuals and local codes.

Electrical Requirements

Heat Pump Condenser

208–230V / 1 Phase / 60 Hz
Minimum Circuit Ampacity: 16A
Maximum Fuse/Breaker: 20A

Gas Furnace

115V / 1 Phase / 60 Hz
Minimum Circuit Ampacity: 8A
Maximum Fuse/Breaker: 15A

The outdoor condenser and furnace have separate electrical requirements and should be installed according to manufacturer instructions and applicable electrical codes.

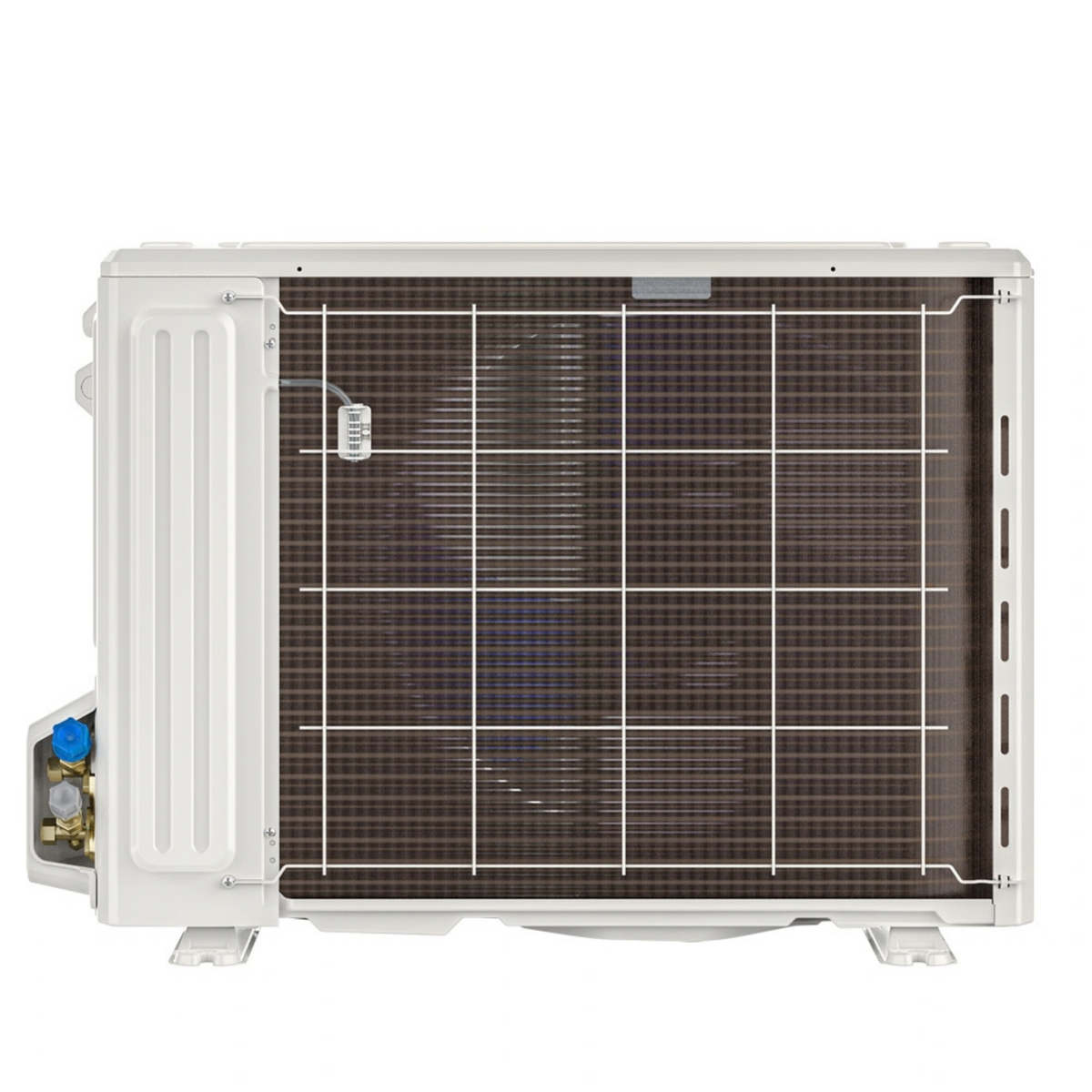

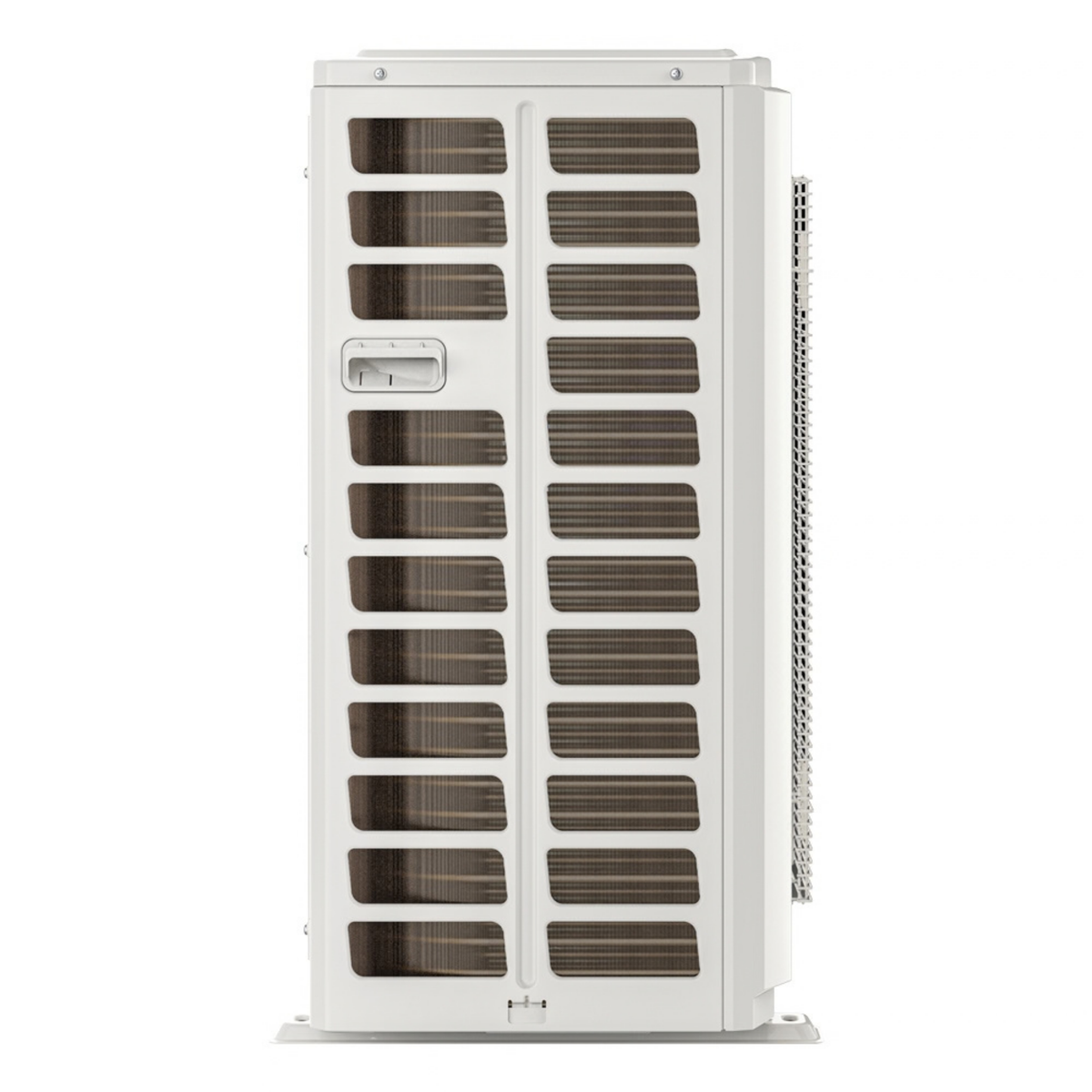

Compact Side-Discharge Condenser

Unlike a traditional top-discharge outdoor condenser, the VersaPro uses a compact side-discharge design.

Condenser dimensions:

31.69” W × 21.81” H × 12.99” D

Net weight: 77 lbs

This compact footprint can make the system particularly attractive where outdoor installation space is limited.

Furnace Dimensions

17.52” W × 33.74” H × 28.74” D

Net weight: 139.5 lbs

Indoor Coil Dimensions

17.5” W × 18” H × 21” D

Net weight: 42 lbs

The 17.5-inch coil and 17.52-inch furnace cabinet create a properly coordinated cabinet-width combination for this bundle.

What’s Included

This bundle includes:

1 × MRCOOL VersaPro 1.5 Ton Central Ducted Heat Pump Condenser
Model: MVP-18-HP-C-230A00-O

1 × MRCOOL VersaPro 80K BTU 96% AFUE Two-Stage Gas Furnace
Model: MGM96EE080B3NB

1 × MRCOOL 1.5–2 Ton 17.5” Pre-Charged R-454B Cased Coil
Model: MCMP1824BOTB

Important: Line set and installation accessories should only be shown as included if they are actually part of the bundle you’re selling. Compatible Line sets NV Pre-Charged or Standard

Key Features

• 18,000 BTU / 1.5-ton heat pump
• 80,000 BTU gas furnace input
• 76,000 BTU furnace output
• 96% AFUE furnace efficiency
• Two-stage gas heating
• 18.8 SEER2
• 11 EER2
• 9.1 HSPF2 Region IV
• DC inverter heat pump technology
• ECM furnace blower motor
• Dual fuel heating
• R-454B refrigerant
• 1.5–2 ton pre-charged indoor coil
• A2L refrigerant leak detection sensor in indoor coil
• CoolGuard® corrosion-resistant aluminum coil
• Compact side-discharge condenser
• Upflow/horizontal furnace configuration
• Multi-position indoor coil
• Natural gas operation
• Optional LP conversion
• AHRI-certified components as specified by manufacturer
• Wi-Fi/app compatibility through compatible controls

Warranty

The furnace manufacturer information you supplied lists a 10-year parts warranty and lifetime heat exchanger warranty, while the condenser and coil list 10-year parts coverage and the condenser lists 10-year compressor coverage.





FAQ About the MRCOOL Dual Fuel.

Is this a dual fuel HVAC system?

Yes. This bundle combines an electric heat pump with a gas furnace, providing two available sources of heat along with central air conditioning.

What size is the heat pump?

The included VersaPro condenser has a rated cooling and heating capacity of 18,000 BTU, or 1.5 tons.

What size is the gas furnace?

The included furnace has an 80,000 BTU input and 76,000 BTU output with a 96% AFUE rating.

Is this an 80% or 96% AFUE furnace?

This particular bundle includes the 96% AFUE VersaPro furnace. That distinction should be emphasized because you also have VersaPro bundles using 80% AFUE furnaces.

What refrigerant does this system use?

The heat pump and indoor coil use R-454B refrigerant.

Is the indoor coil pre-charged?

Yes. The included MCMP1824BOTB indoor coil is supplied pre-charged with R-454B.

What line-set size does this system use?

The specified refrigerant connections are 3/8-inch liquid line and 3/4-inch suction line. Works with the NV Pre-Charged line set or a Standard line set.

What breaker does the outdoor heat pump require?

The MVP-18-HP-C-230A00-O has a 16A minimum circuit ampacity and 20A maximum fuse/breaker.

What electrical service does the furnace require?

The furnace operates on 115V, single-phase, 60 Hz, with an 8A minimum circuit ampacity and 15A maximum fuse/breaker.

Can the furnace use propane?

The furnace is designed for natural gas operation and can be converted for propane using the appropriate optional LP conversion kit. That is Included

Does this bundle include a thermostat?

No. The MST07 is Optional.
