MRCOOL VersaPro 3 Ton 16.1 SEER2 Heat Pump & 80K BTU 80% AFUE Gas Furnace Dual Fuel System - Multiple-position – R-454B – 17.5”

Product Description

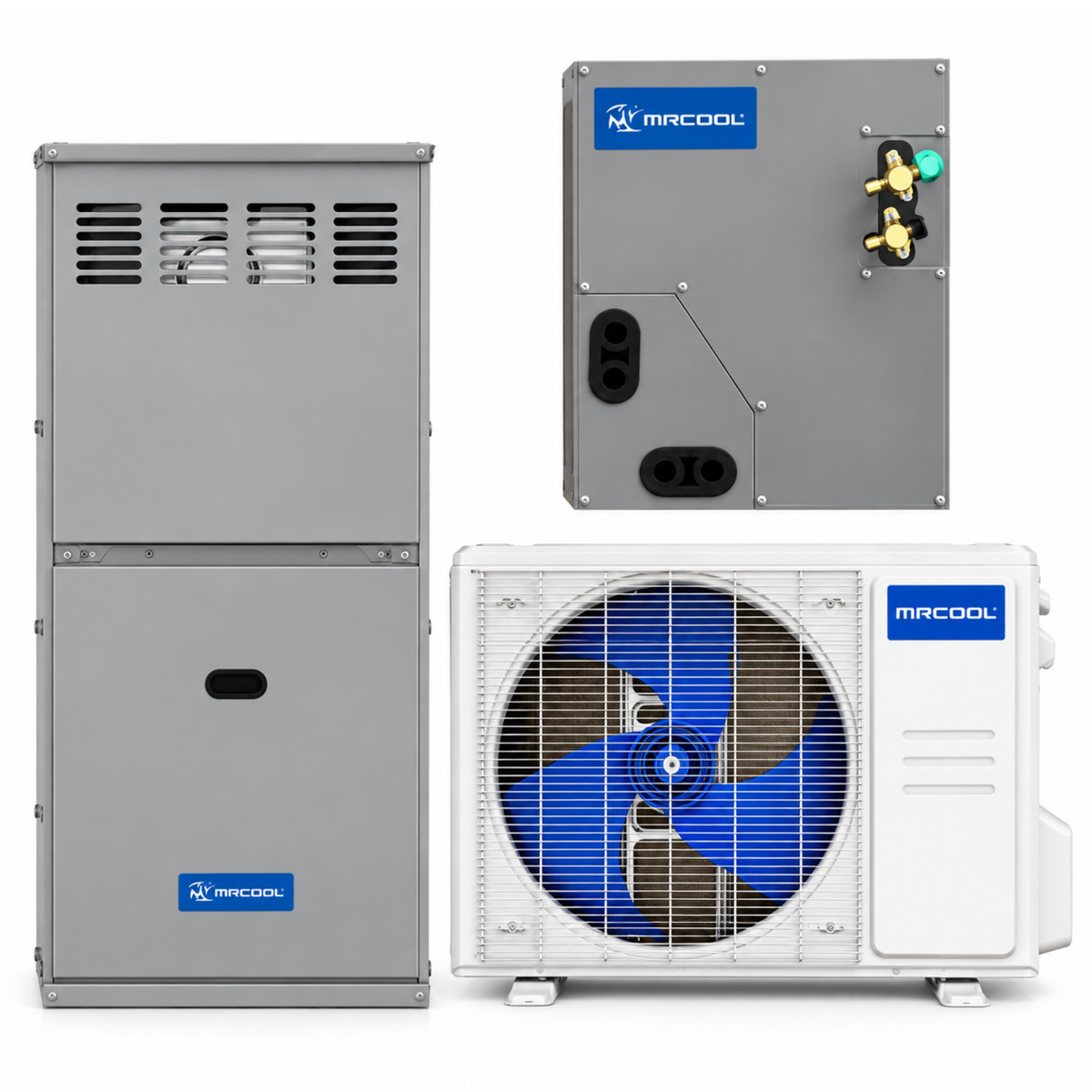

MRCOOL® VersaPro® 3 Ton Heat Pump + 80K BTU Gas Furnace Dual Fuel System

Get the flexibility of electric heat-pump heating, central air conditioning, and natural gas heat in one complete central ducted HVAC system with this MRCOOL® VersaPro® dual fuel bundle.

This system combines a 3 ton / 36,000 BTU MRCOOL VersaPro inverter heat pump, an 80,000 BTU input 80% AFUE VersaPro gas furnace, and a 2.5–3 ton pre-charged R-454B cased A-coil.

The furnace and coil both feature a 17.5-inch cabinet width, creating a properly aligned indoor equipment combination while supporting up-flow, down-flow, and horizontal applications.

For additional installation flexibility, the pre-charged coil supports an applicable MRCOOL® No-Vac® Quick Connect® line set or a compatible standard HVAC line set using the manufacturer-approved connection method.

Complete Dual Fuel Heating & Cooling

A dual fuel HVAC system combines an electric heat pump with a gas furnace.

During cooling season, the 36,000 BTU heat pump operates as the home’s central air conditioner.

During heating season, the system can provide heat-pump heating and use the 80,000 BTU gas furnace as the alternate heating source, depending on thermostat settings, outdoor conditions, system configuration, and the selected changeover strategy.

This gives homeowners two heating technologies in one central ducted system rather than relying exclusively on electric resistance heat or a gas furnace.

Proper dual-fuel controls and changeover settings must be configured for the application.

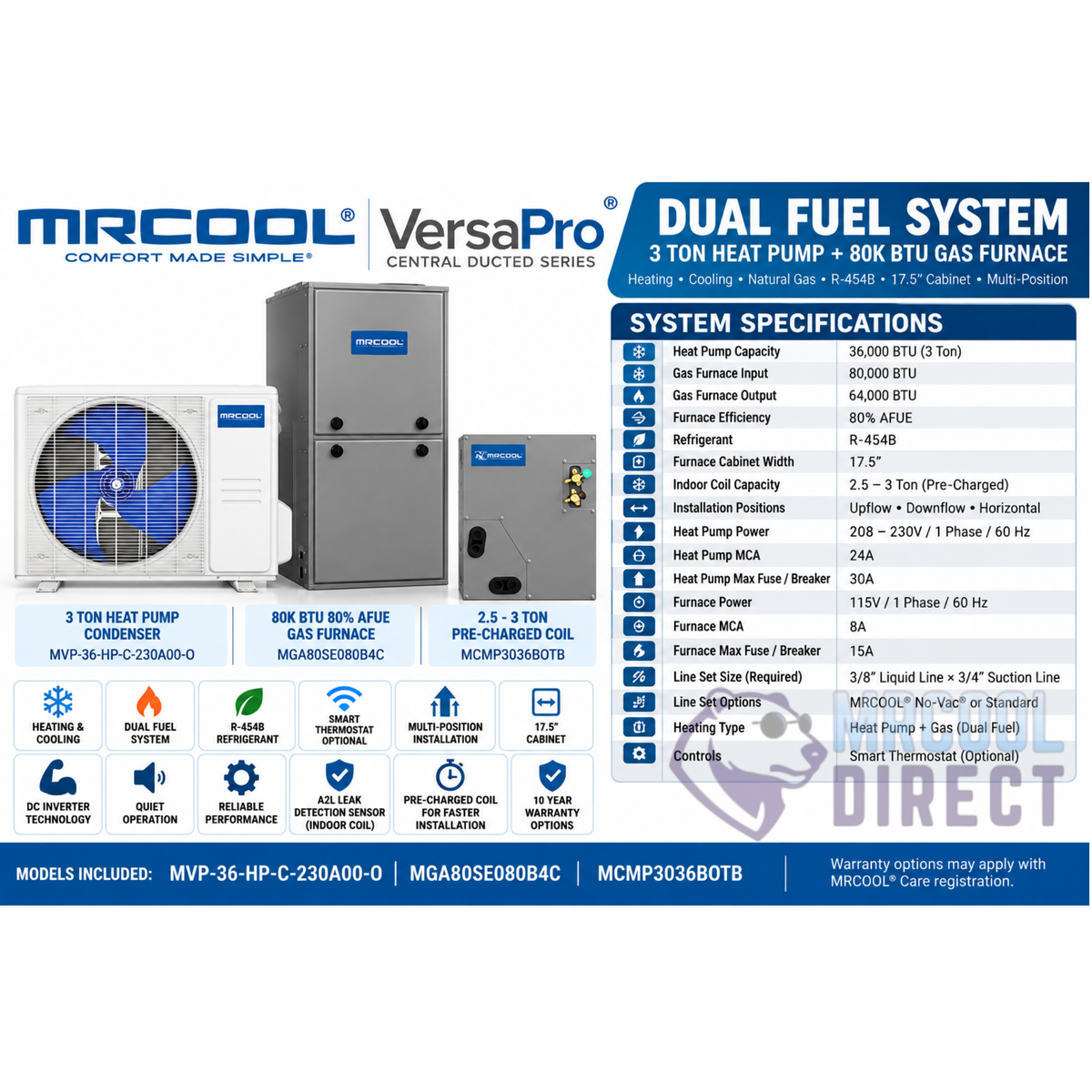

What’s Included

1 × MRCOOL VersaPro 3 Ton Central Ducted Heat Pump Condenser

Model: MVP-36-HP-C-230A00-O

• 3 ton nominal capacity
• 36,000 BTU cooling
• 36,000 BTU heat-pump heating
• DC inverter technology
• R-454B refrigerant
• Compact side-discharge design
• 208–230V
• Wi-Fi compatible
• App compatible
• Smart thermostat included according to manufacturer specifications

1 × MRCOOL VersaPro 80K BTU 80% AFUE Gas Furnace

Model: MGA80SE080B4C

• 80,000 BTU input
• 64,000 BTU output
• 80% AFUE
• Single-stage gas heat
• Natural gas
• LP conversion capability
• ECM blower motor
• 5 blower speeds
• 17.5” cabinet
• Multi-position installation
• Upflow, downflow or horizontal
• Hot-surface ignition
• Aluminized tubular steel heat exchanger
• 115V

1 × MRCOOL 2.5–3 Ton Pre-Charged Cased A-Coil

Model: MCMP3036BOTB

• 2.5–3 ton
• R-454B
• Factory pre-charged
• 17.5” cabinet
• Multi-position
• TXV metering device
• CoolGuard® corrosion-resistant aluminum construction
• A2L leak detection sensor
• Dual front drains
• Built-in side drain pan for horizontal applications
• No-Vac® and standard line-set installation options

Line sets and other installation accessories are sold separately unless specifically selected or stated as included.

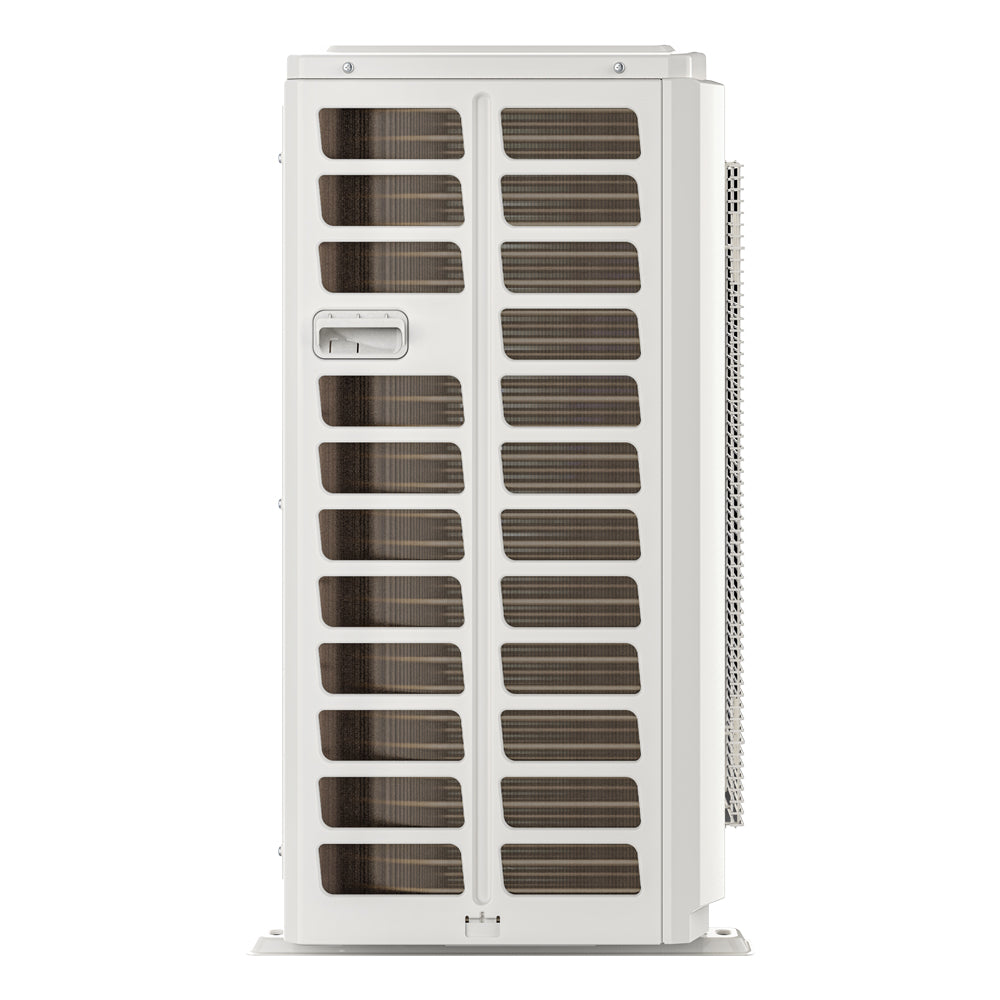

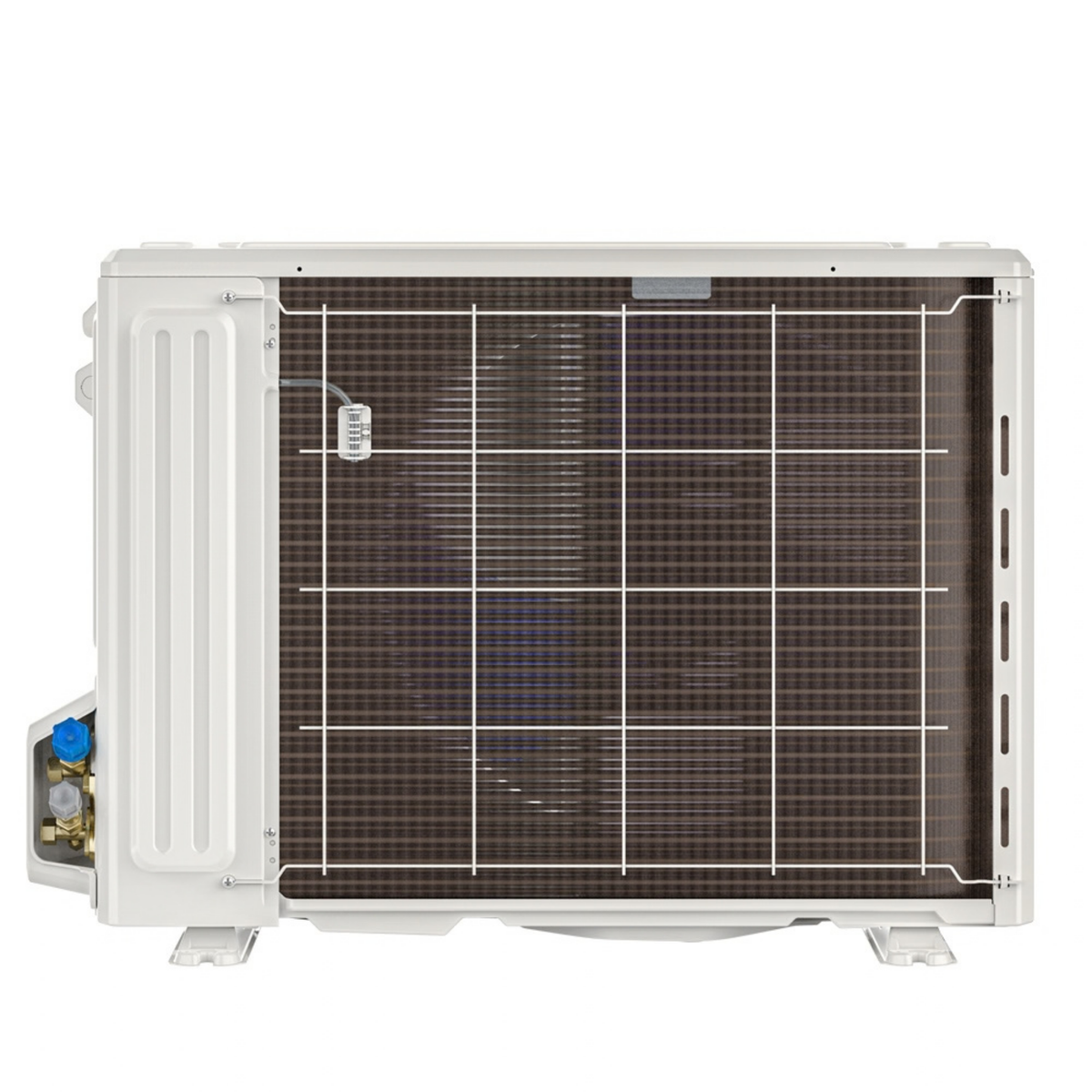

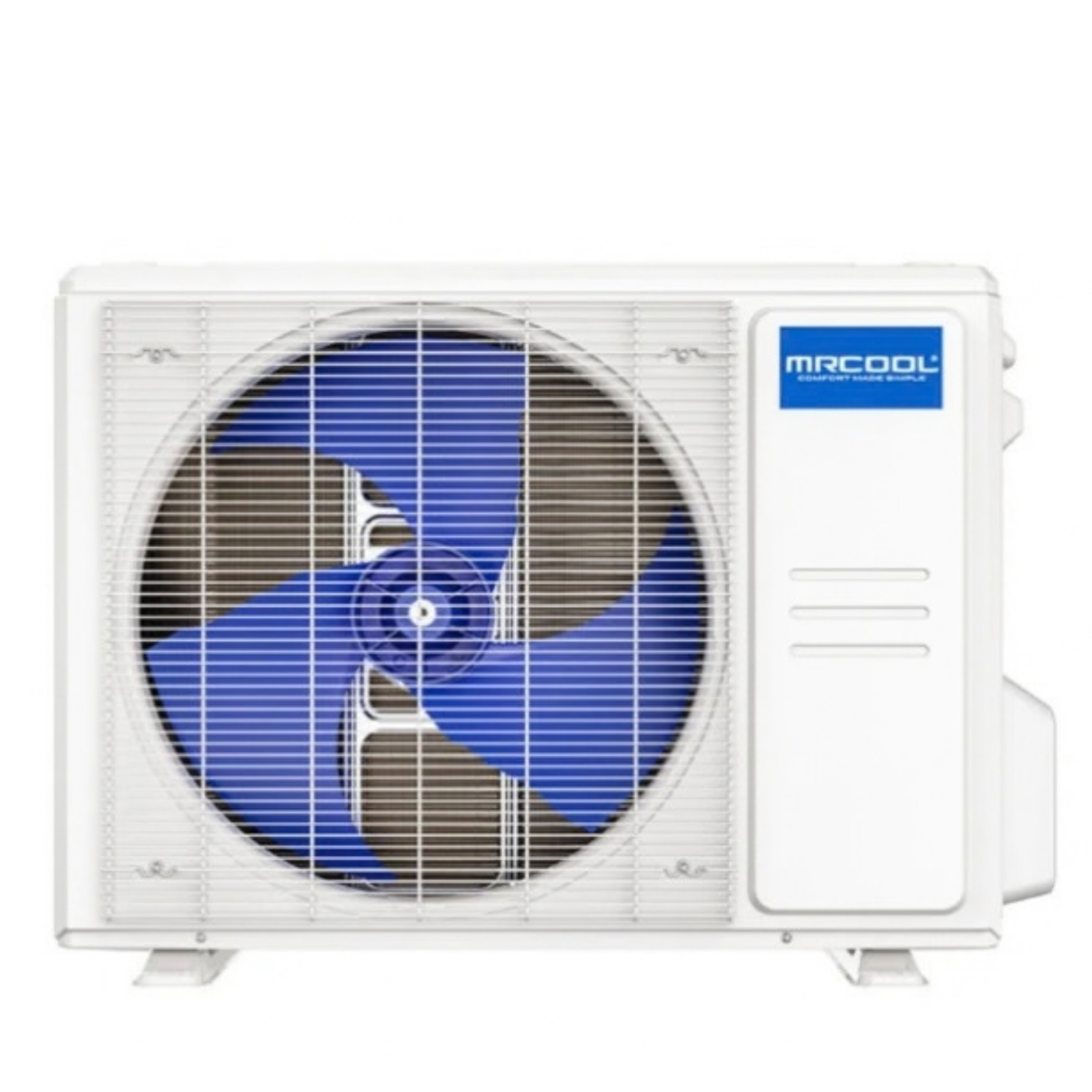

3 Ton VersaPro Inverter Heat Pump

The MVP-36-HP-C-230A00-O is a 3 ton MRCOOL VersaPro central ducted heat pump condenser designed to provide both heating and cooling.

Its DC inverter technology allows the equipment to adjust operation according to demand rather than depending solely on traditional fixed-output operation.

The compact side-discharge cabinet can also make the outdoor unit easier to accommodate in installations where space around the condenser is limited.

Heat Pump Specifications

Specification	Rating
Model	MVP-36-HP-C-230A00-O
Tonnage	3 Ton
Cooling Capacity	36,000 BTU
Heating Capacity	36,000 BTU
Refrigerant	R-454B
Voltage	208-230V
Phase	Single Phase
Frequency	60 Hz
MCA	24A
Max Fuse/Breaker	30A
Liquid Line	3/8”
Suction Line	3/4”
Sound Rating	63 dBA
Wi-Fi Compatible	Yes
App Compatible	Yes
ETL Certified	Yes



Heat Pump Dimensions

37.24” W × 31.89” H × 16.14” D

Net Weight: 153.22 lbs.



Heat Pump Efficiency

The manufacturer specifications provided for the VersaPro 3 ton condenser list:

SEER2: 16.1
EER2: 10
HSPF4: 8.7
HSPF5: 7

However, HVAC efficiency ratings depend on the complete matched indoor/outdoor equipment combination.

The EnergyGuide for model MVP-36-HP-C-230A00-O shows a cooling-efficiency range of 14.30–16.70 SEER2 and a heating-efficiency range of 8.30–9.30 HSPF2, depending on the indoor equipment used with the condenser.

Therefore, customers should not assume that the condenser’s published rating represents the certified efficiency of every possible furnace-and-coil combination.

Refer to the applicable AHRI matched-system certificate for certified system efficiency when required.

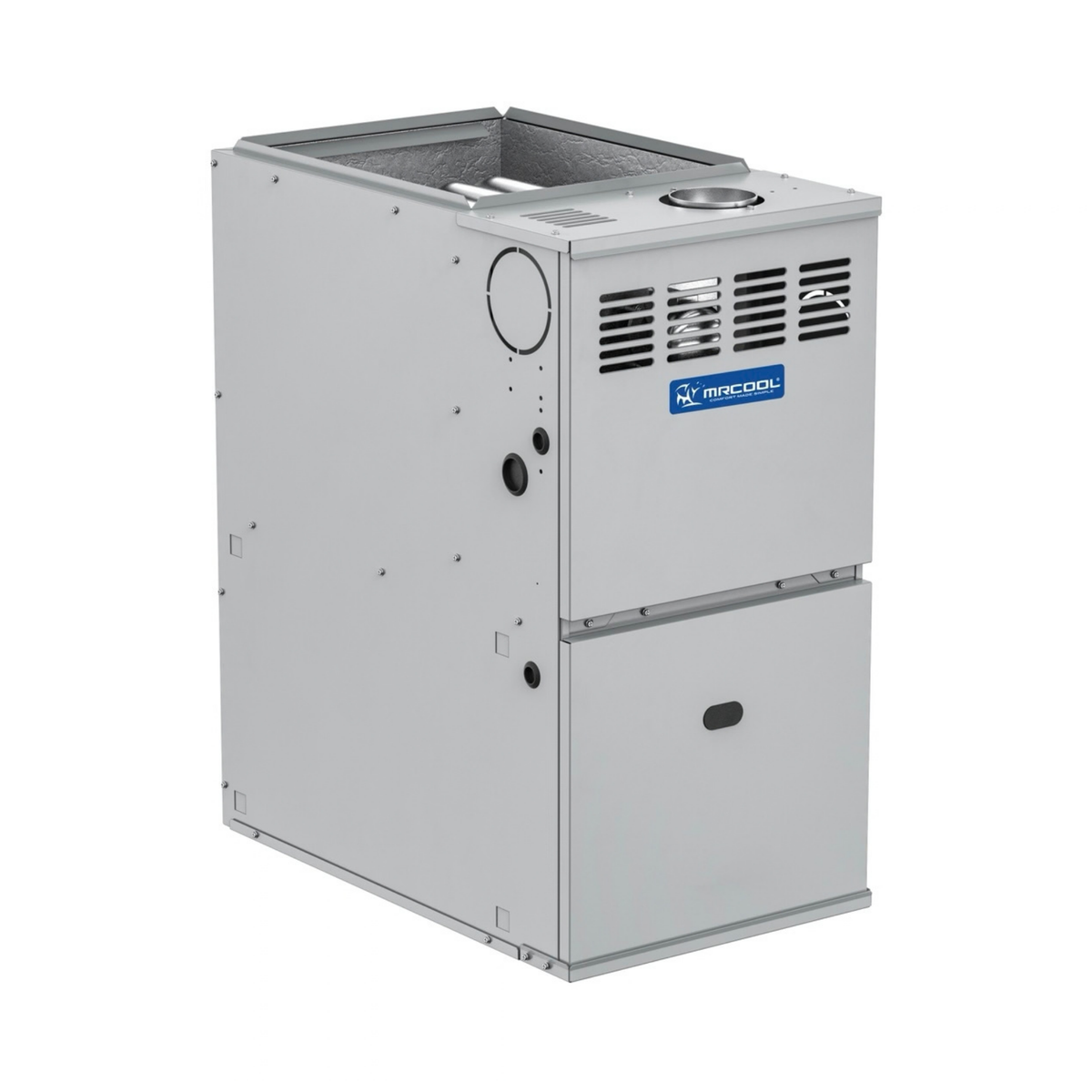

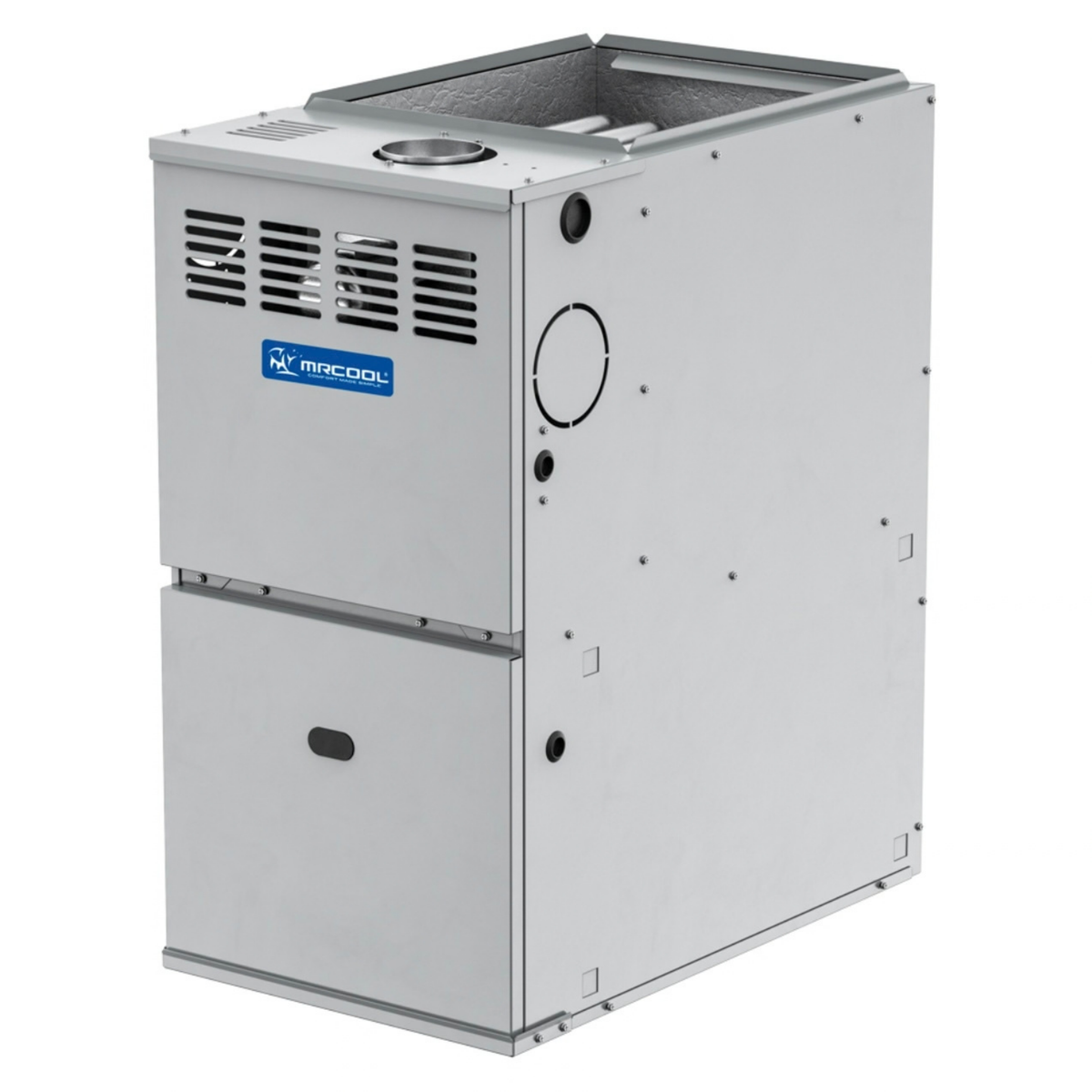

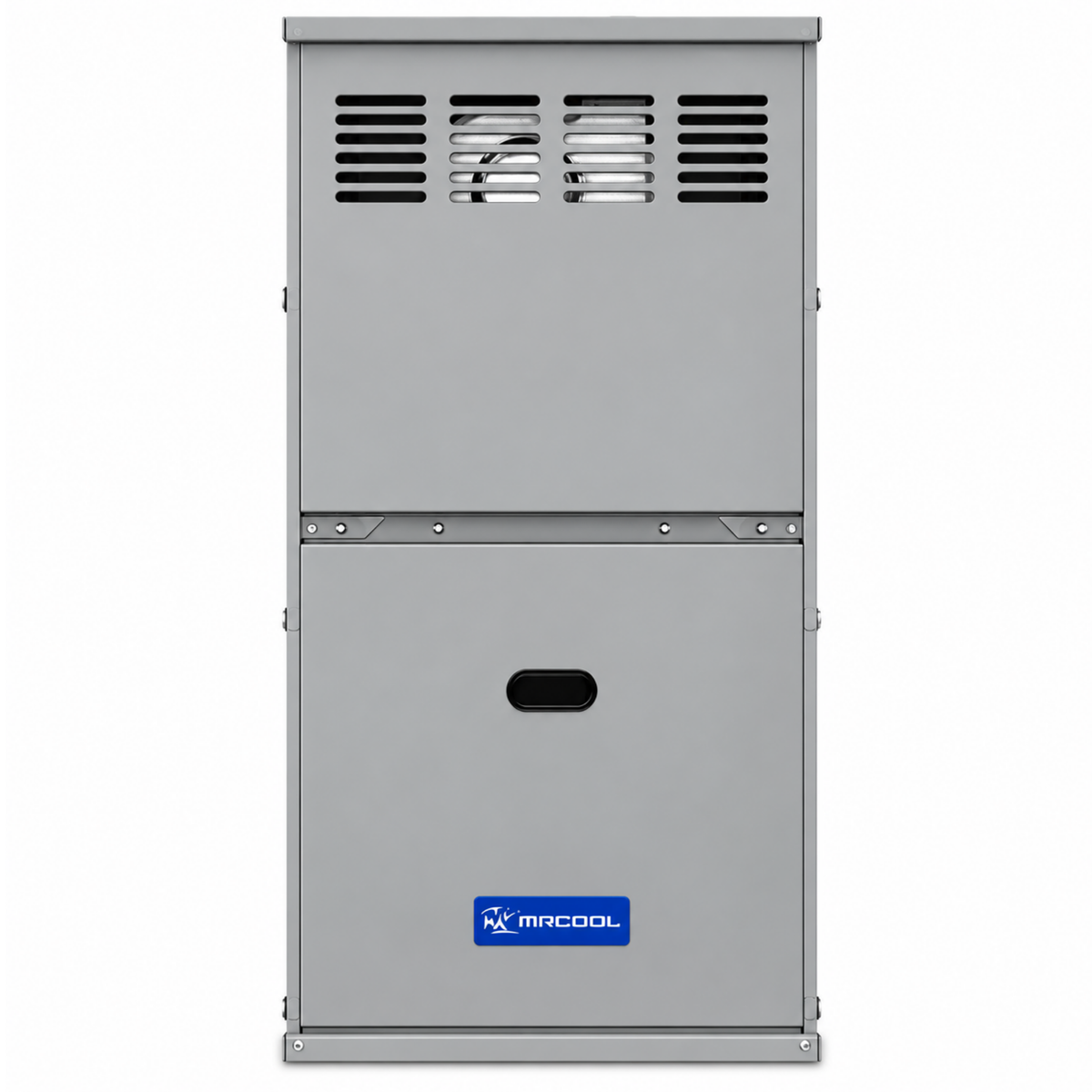

80K BTU 80% AFUE VersaPro Gas Furnace

The included MGA80SE080B4C provides dependable gas heating while serving as the indoor blower for this dual-fuel system.

The furnace has an 80,000 BTU input rating and 64,000 BTU output rating.

Its 80.0% AFUE rating is AHRI certified, providing additional third-party verification of the furnace’s heating efficiency.

Furnace Specifications

Specification	Rating
Model	MGA80SE080B4C
Furnace Type	Gas Furnace
Configuration	Multi-Position
Gas Heating Stage	Single Stage
AFUE	80.0%
Input Capacity	80,000 BTU
Output Capacity	64,000 BTU
Fuel	Natural Gas / LP Convertible
Blower	ECM
Blower Speeds	5
Blower Motor	1/2 HP
Rated Airflow	1,300 CFM
Ignition	Hot Surface
Heat Exchanger	Aluminized Tubular Steel
Gas Connection	3/4”
Voltage	115V
Phase	Single Phase
MCA	8A
Max Fuse/Breaker	15A
Cabinet Width	17.5"



Furnace Dimensions

17.5” W × 33.75” H × 28.5” D

Net Weight: 128 lbs.

Filter Size

Side Return: 16” × 25” × 1”

Bottom-return filter requirements vary according to installation and furnace casing configuration.



AHRI Certified Furnace Performance

The MGA80SE080B4C furnace is listed under:

AHRI Certified Reference Number: 216618346

The AHRI certificate verifies:

• 80.0% AFUE
• 80,000 BTU/h input
• 64,000 BTU/h output
• ECM motor
• Natural gas / propane capability
• Upflow configuration
• Downflow configuration
• Horizontal configuration

This provides independent certification of the furnace performance rather than relying solely on advertised specifications.

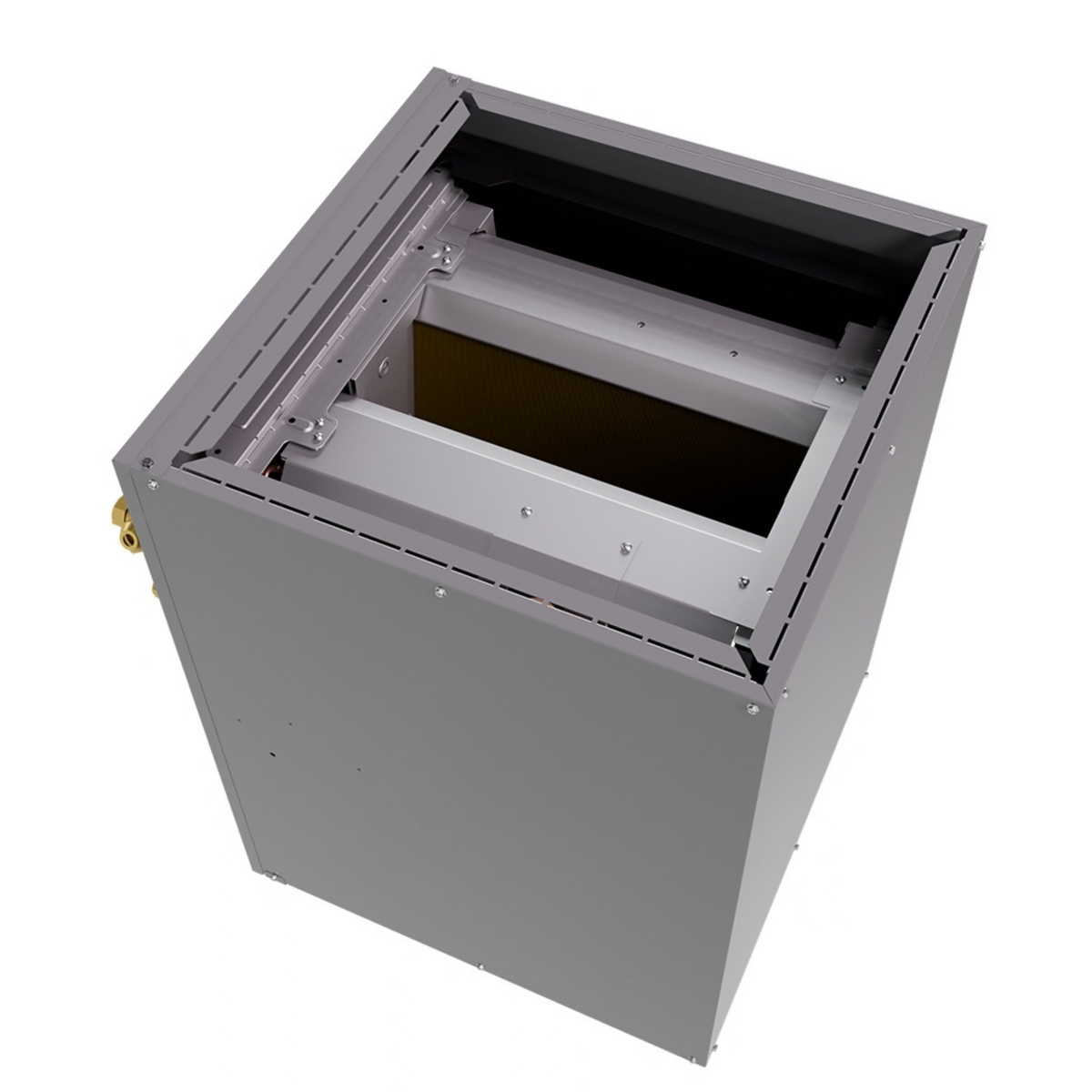

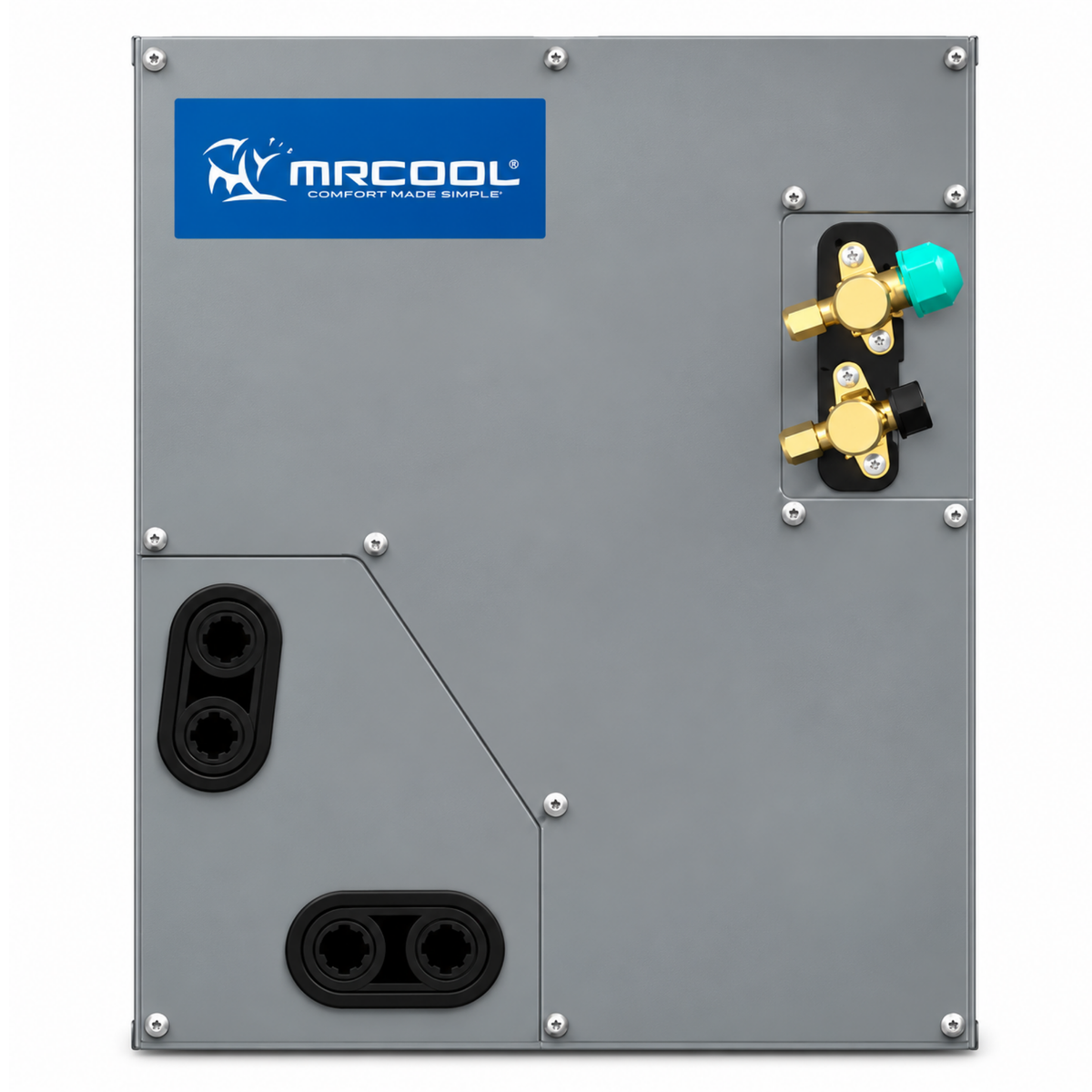

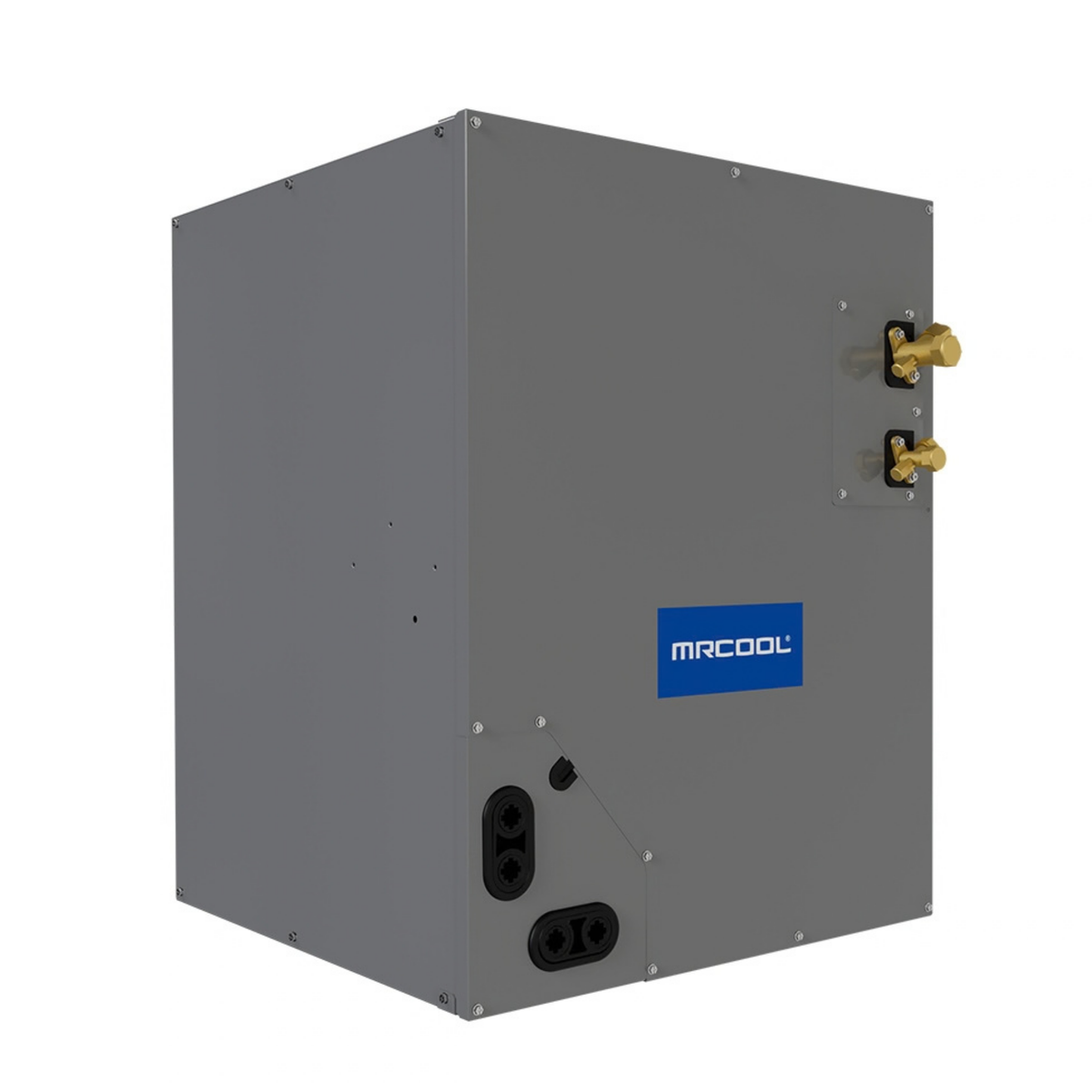

Pre-Charged R-454B Indoor Coil

The included MCMP3036BOTB is a 2.5–3 ton pre-charged cased A-coil designed for R-454B HVAC systems.

Its 17.5-inch cabinet width matches the furnace, while its multi-position design supports a variety of ductwork configurations.

Coil Specifications

Specification	Rating
Model	MCMP3036BOTB
Capacity	2.5-3 Ton
Cabinet	Cased
Cabinet Width	17.5”
Refrigerant	R-454B
Factory Pre-Charged	Yes
Metering Device	TXV
Liquid Line	3/8"
Suction Line	3/4"
Configuration	Multi-Position
Leak Detection	A2L Sensor
Coil Construction	CoolGuard® Aluminum



Coil Dimensions

17.5” W × 23.5” H × 21” D

Net Weight: 59.5 lbs.

The coil also includes dual front drains and a built-in side drain pan for horizontal applications.



Choose Your Line Set

A major advantage of this system is the ability to select the refrigerant-line installation method appropriate for the project.

MRCOOL® No-Vac® Quick Connect® Line Set

The MCMP3036BOTB pre-charged coil supports an applicable MRCOOL No-Vac® Quick Connect® pre-charged line set when installed according to MRCOOL requirements.

Required connection sizes:

3/8” Liquid Line
3/4” Suction Line

➡️ SHOP COMPATIBLE MRCOOL NO-VAC® LINE SETS

Link this text to your No-Vac collection.

Standard HVAC Line Set

This system can also be installed using an appropriately sized standard HVAC refrigerant line set with the manufacturer’s approved connection method.

Required line sizes remain:

3/8” Liquid Line
3/4” Suction Line

➡️ SHOP COMPATIBLE STANDARD HVAC LINE SETS

Link this to your standard line-set collection.

Always verify line length, connection method, refrigerant procedures, additional charge requirements when applicable, and commissioning procedures using the current MRCOOL installation documentation.



R-454B Refrigerant & A2L Safety

This system uses R-454B, a lower-global-warming-potential refrigerant used in newer residential HVAC equipment.

R-454B is classified as an A2L mildly flammable refrigerant, which means equipment installation, servicing, tools, handling, and safety procedures must comply with the manufacturer’s R-454B/A2L instructions and applicable codes.

The included MCMP3036BOTB coil incorporates an A2L refrigerant leak detection sensor.



Multi-Position Installation

This system provides substantial installation flexibility.

The furnace and coil are designed for approved:

• Upflow
• Downflow
• Horizontal

configurations.

This can make the bundle suitable for a variety of replacement and new-construction applications.

Always follow the individual component installation manuals for approved orientations, clearances, condensate requirements, venting, duct configuration, and other installation requirements.



Electrical Requirements

Outdoor Heat Pump

208–230V / 1 Phase / 60 Hz

Minimum Circuit Ampacity: 24A

Maximum Fuse/Breaker: 30A

Indoor Gas Furnace

115V / 1 Phase / 60 Hz

Minimum Circuit Ampacity: 8A

Maximum Fuse/Breaker: 15A

The furnace and outdoor condenser have separate electrical requirements. Wiring, disconnects, overcurrent protection, grounding, and other electrical components must be sized according to equipment nameplates, MRCOOL instructions, and applicable codes.



Smart Thermostat & Dual Fuel Controls

According to the manufacturer information, the VersaPro condenser includes a MRCOOL Smart Thermostat and supports Wi-Fi and app connectivity.

Dual-fuel systems require the controls to be configured correctly so the system can manage operation between the electric heat pump and gas furnace.

The proper balance point/changeover strategy depends on the installation, controls, climate, equipment configuration, and operating-cost considerations.



Furnace Warranty

The furnace warranty documentation provides different coverage depending on registration and eligibility.

Standard Limited Warranty

Subject to MRCOOL’s complete warranty terms:

Parts: 5 Years
Heat Exchanger: 20 Years

Extended Limited Warranty

With proper registration of the unit within 90 days of purchase and satisfaction of MRCOOL’s applicable warranty requirements:

Parts: 10 Years
Heat Exchanger: Limited Lifetime Replacement Warranty

Warranty coverage is subject to MRCOOL’s complete terms, conditions, exclusions, installation requirements, registration requirements, and eligibility provisions.

Warranty options may apply with MRCOOL® Care registration.

➡️ VIEW MRCOOL VERSAPRO FURNACE WARRANTY



Heat Pump Warranty

For the original end user and subject to MRCOOL’s warranty conditions, the VersaPro heat pump warranty provides:

Parts: 10 Years
Compressor: 10 Years

The warranty is non-transferable and contains installation, equipment-matching, location, maintenance, and other eligibility requirements.

Labor, refrigerant, freight, maintenance, diagnostics, and certain other costs are not covered under the manufacturer’s limited warranty.

➡️ VIEW MRCOOL VERSAPRO WARRANTY



Pre-Charged Coil Warranty

The MCMP3036BOTB is specifically listed under MRCOOL’s Pre-Charged Coil Series limited warranty.

Subject to the complete warranty terms:

Parts: 10 Years

Coverage applies to qualifying installations and is subject to MRCOOL’s equipment compatibility, installation, ownership, and other warranty requirements.

➡️ VIEW MRCOOL PRE-CHARGED COIL WARRANTY



Installation Manuals & Technical Documents

I strongly recommend keeping this section on the page.

Gas Furnace

➡️ VIEW MGA80SE080B4C INSTALLATION MANUAL

➡️ VIEW FURNACE AHRI CERTIFICATE

➡️ VIEW FURNACE ENERGYGUIDE

➡️ VIEW FURNACE WARRANTY

Heat Pump

➡️ VIEW MVP-36-HP-C-230A00-O INSTALLATION MANUAL

➡️ VIEW HEAT PUMP ENERGYGUIDE

➡️ VIEW VERSAPRO WARRANTY

Indoor Coil

➡️ VIEW MCMP3036BOTB INSTALLATION MANUAL

➡️ VIEW PRE-CHARGED COIL WARRANTY

You’ll replace those with your actual document links.



Frequently Asked Questions

What comes with this MRCOOL dual fuel system?

This bundle includes the MVP-36-HP-C-230A00-O 3 ton heat pump condenser, MGA80SE080B4C 80K BTU gas furnace, and MCMP3036BOTB 2.5–3 ton pre-charged R-454B cased coil. The manufacturer also states that the VersaPro condenser includes a MRCOOL Smart Thermostat.

What does dual fuel mean?

A dual-fuel system combines an electric heat pump and gas furnace. The heat pump can provide electric heating, while the furnace provides gas heat when the system controls call for the alternate heating source.

Is this a 3 ton system?

Yes. The outdoor heat pump has a nominal capacity of 3 tons / 36,000 BTU.

How many BTUs is the furnace?

The furnace has an 80,000 BTU input rating and 64,000 BTU output rating.

What is the furnace AFUE?

The furnace is rated at 80.0% AFUE, which is confirmed by its AHRI certification and EnergyGuide documentation.

Is this an R-454B system?

Yes. The heat pump and pre-charged indoor coil use R-454B refrigerant.

Is the coil pre-charged?

Yes. The MCMP3036BOTB is factory pre-charged with R-454B.

Can I use a No-Vac line set?

Yes. The included pre-charged coil supports an applicable MRCOOL No-Vac® Quick Connect® line set when installed according to MRCOOL requirements.

Can I use a regular HVAC line set?

Yes. A compatible standard HVAC line set can also be used with the manufacturer’s approved connection method.

What size line set do I need?

This equipment uses a 3/8” liquid line and 3/4” suction line. Line length and installation requirements should be verified using the applicable MRCOOL manuals.

Are line sets included?

Not unless the particular option you purchase specifically states that a line set is included. Compatible No-Vac and standard HVAC line sets can be purchased separately.

Is this furnace natural gas or propane?

The furnace is designed for natural gas and has LP conversion capability. Verify the proper LP conversion components and procedures before a propane installation.

Is this a single-stage furnace?

Yes. Manufacturer specifications identify the gas heating stage as single-stage. The furnace also uses an ECM blower with five available blower speeds.

Can I install it horizontally?

The furnace and coil support approved upflow, downflow, and horizontal configurations.

What size breaker does the heat pump need?

The condenser has a 24A Minimum Circuit Ampacity and 30A maximum fuse/breaker rating. Always follow the equipment nameplate and applicable electrical codes.

What power does the furnace require?

The furnace uses 115V, single-phase, 60 Hz power, with an 8A MCA and 15A maximum fuse/breaker.

Does it include a thermostat?

The manufacturer specifications state that the VersaPro condenser includes a MRCOOL Smart Thermostat. Proper control configuration is required for dual-fuel operation.

How many square feet will a 3 ton system heat and cool?

There is no single accurate square-foot rating for every home. Climate, insulation, windows, air leakage, ceiling height, ductwork, orientation and other factors affect HVAC sizing. A proper load calculation should be used instead of selecting equipment solely by square footage.

Is this a DIY system?

This complete dual-fuel furnace system should not be treated as a typical MRCOOL DIY mini-split installation.

Although the compatible No-Vac® line-set system can simplify the refrigerant-line connection process, the complete installation involves gas piping, combustion venting, electrical work, ductwork, condensate drainage, controls and R-454B/A2L equipment. All work must comply with MRCOOL instructions and applicable codes.



Need Help Choosing Your System?

Not sure whether this 3 ton heat pump + 80K BTU gas furnace combination is right for your home?

Contact MRCOOL DIRECT before ordering.

We can help you identify the correct equipment combination, line-set option, and accessories for your installation.
