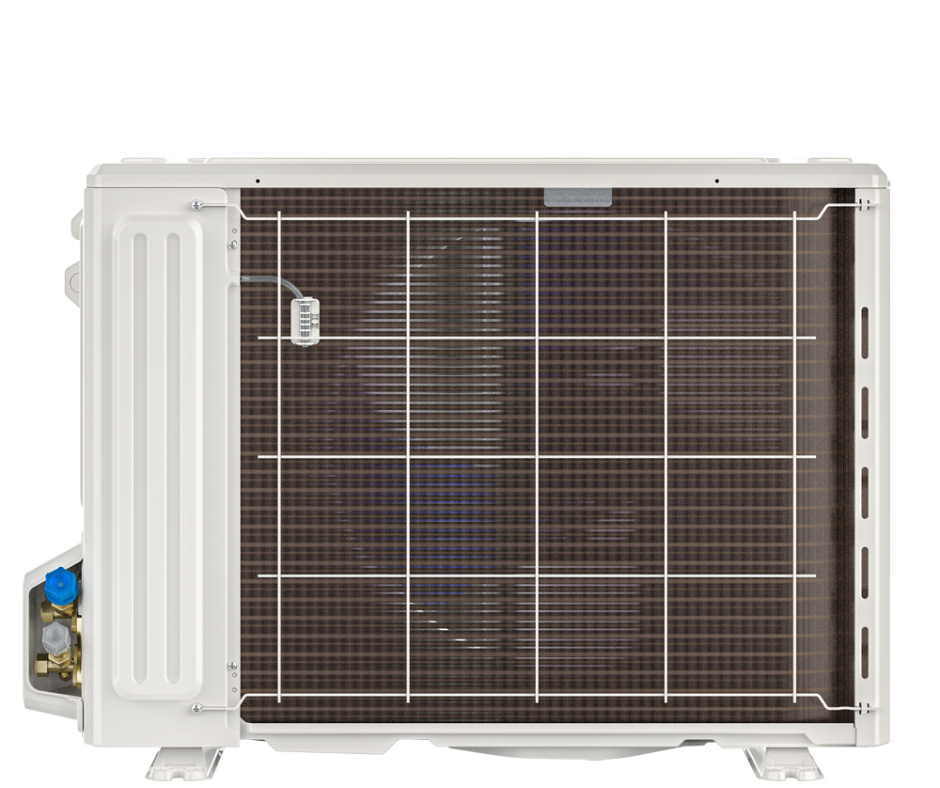

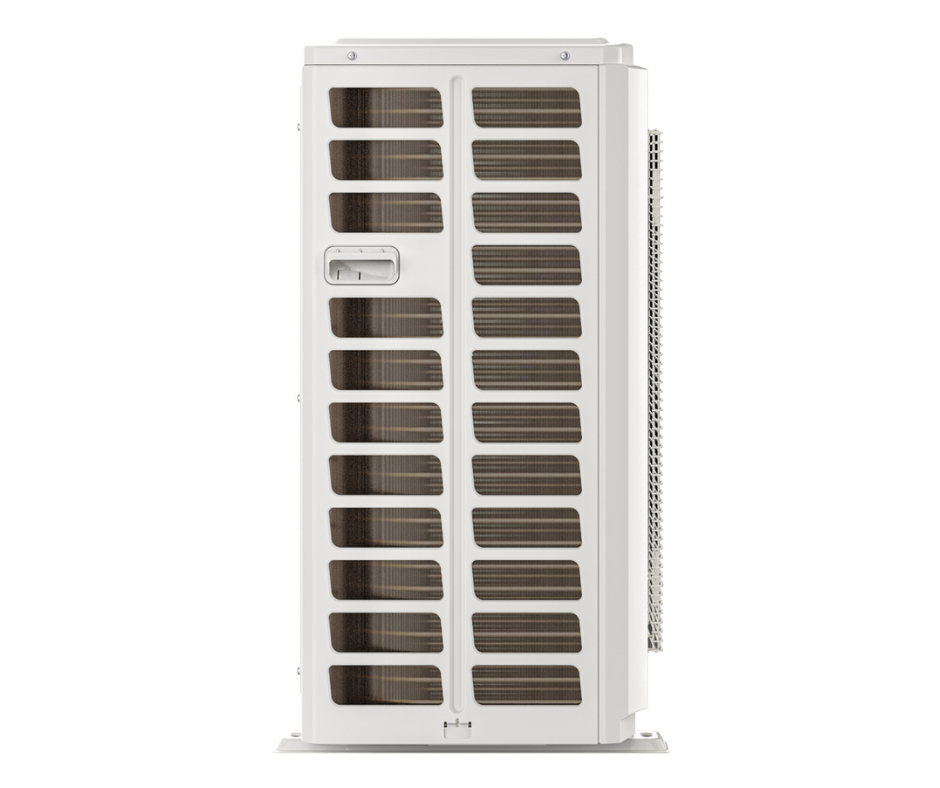

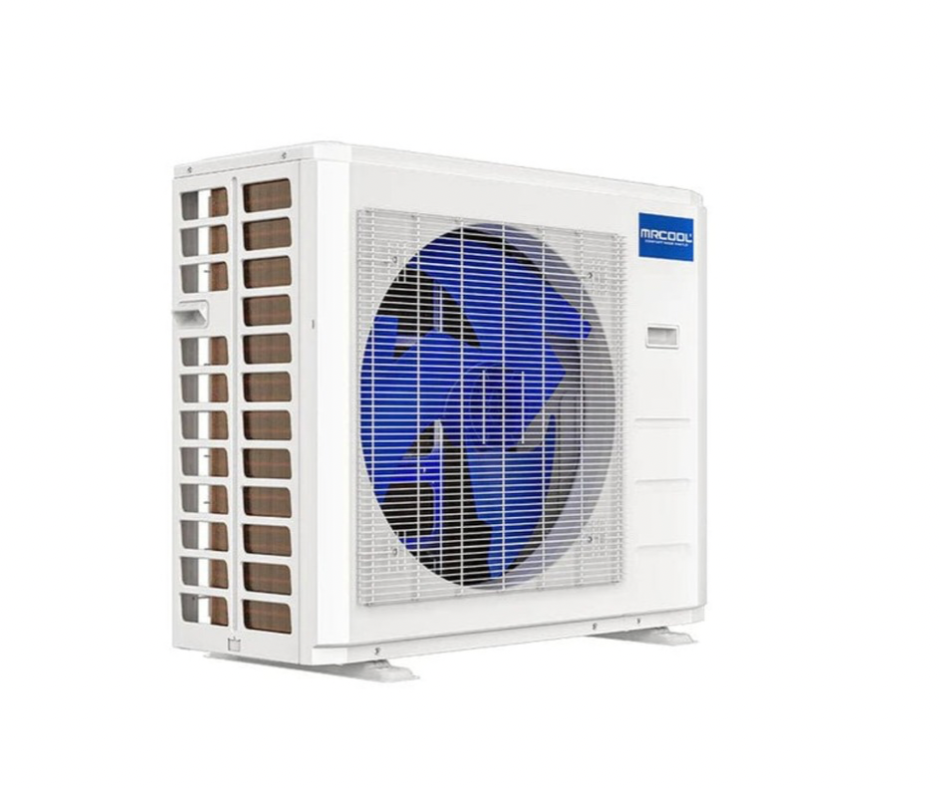

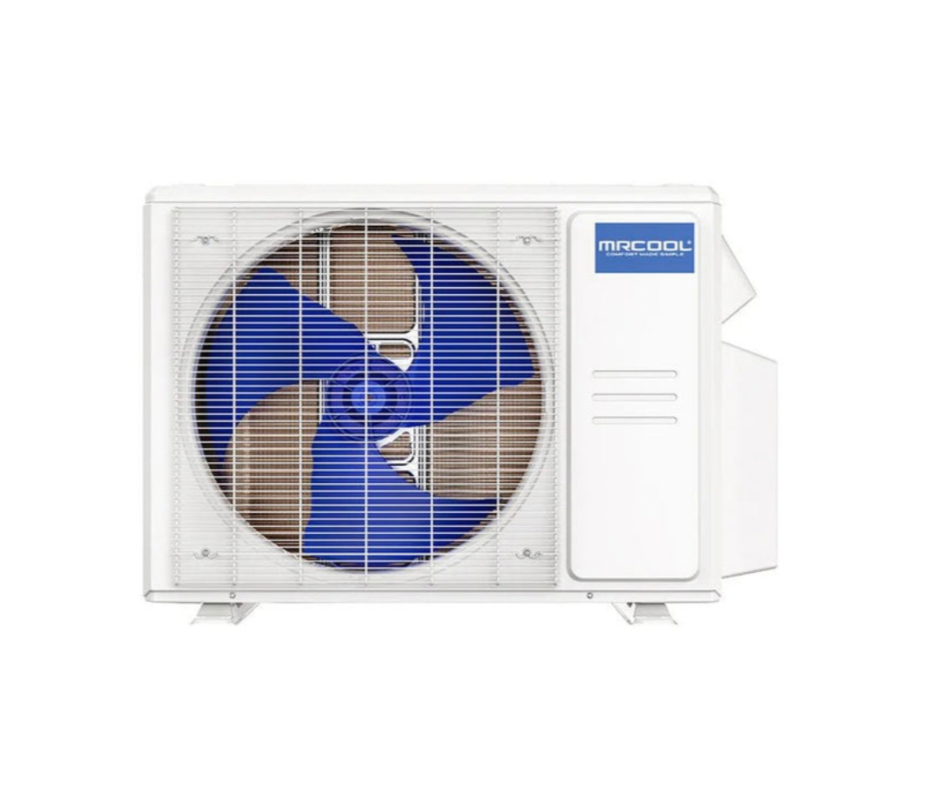

MRCOOL® VersaPro® 5-Ton Central Ducted Heat Pump Condenser — 60,000 BTU Variable-Speed R-454B (MVP-60-HP-C-230A00-O)

Product Description

The MRCOOL® VersaPro® MVP-60-HP-C-230A00-O Central Ducted Heat Pump Condenser is engineered to deliver powerful, efficient, and consistent whole-home comfort for larger residences and light-commercial applications. With a full 5-ton (60,000 BTU) variable-speed capacity, this advanced condenser provides dependable cooling during peak summer heat and strong heating performance through colder seasons—without excessive energy consumption.



Featuring DC inverter technology, the VersaPro® 60K adjusts output dynamically to match real-time demand, resulting in smoother temperature control, quieter operation, and lower utility bills compared to traditional single-stage systems. With an efficiency rating of 15.2 SEER2 and 8.4 HSPF4, it delivers reliable performance while remaining ENERGY STAR® certified for added energy savings.



Designed to pair seamlessly with the MRCOOL® VersaPro® Central Ducted Air Handler, this condenser forms a complete, high-quality HVAC system optimized for comfort, efficiency, and longevity. The system includes Wi-Fi and app compatibility, allowing homeowners to control temperature settings remotely using the MRCOOL® Smart platform.



Sustainability is built in. The system utilizes R-454B refrigerant, a next-generation, low-GWP alternative that meets modern environmental standards while maintaining excellent thermal performance. The painted galvanized steel cabinet resists corrosion and weather exposure, while the compact side-discharge design simplifies installation in tight outdoor spaces.



Integrated self-diagnostic technology streamlines maintenance and troubleshooting, helping reduce service calls and long-term ownership costs. Backed by a 10-year parts warranty and 10-year compressor warranty, the MRCOOL® VersaPro® 5-Ton condenser is a dependable, long-term investment in whole-home comfort.



KEY FEATURES & BENEFITS

• 5-Ton / 60,000 BTU Capacity – Ideal for large homes & ducted systems
• DC Inverter Technology – Variable-speed efficiency and quiet operation
• 15.2 SEER2 / 8.4 HSPF4 – Balanced efficiency and performance
• ENERGY STAR® Certified – Lower operating costs
• R-454B Refrigerant – Eco-friendly, future-ready refrigerant
• Wi-Fi & App Compatible – Smart comfort control
• Side-Discharge Design – Easier installation in tight spaces
• Painted Galvanized Steel Cabinet – Built for durability
• Integrated Self-Diagnostics – Faster troubleshooting
• Designed for VersaPro® Air Handlers – Optimized system pairing



ELECTRICAL & BREAKER REQUIREMENTS

• Voltage: 208–230V
• Phase: 1
• Frequency: 60 Hz
• Max Fuse / Breaker: 40 Amps
• Minimum Circuit Ampacity (MCA): 39 Amps



PERFORMANCE SPECIFICATIONS

• SEER2: 15.2
• EER2: 8.6
• HSPF4: 8.4
• HSPF5: 6.8
• Airflow (CFM): 3,037.1
• Cooling Capacity: 54,000 BTU
• Heating Capacity: 54,000 BTU
• Sound Rating: 65 dBA

REFRIGERATION DETAILS

• Refrigerant Type: R-454B
• Refrigerant Charge: 134.04 oz
• Liquid Line Size: 3/8”
• Suction Line Size: 3/4”



DIMENSIONS & WEIGHT

Net Dimensions

• Width: 38.58 in
• Height: 38.39 in
• Depth: 16.34 in
• Weight: 192.9 lbs

Shipping Dimensions

• Width: 45.08 in
• Height: 42.52 in
• Depth: 19.68 in
• Weight: 224.21 lbs



CERTIFICATIONS & WARRANTY

• ETL Certified: Yes
• AHRI Certified: Yes
• ENERGY STAR® Certified: Yes



Warranty Coverage

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years



FREQUENTLY ASKED QUESTIONS

Q: What air handler pairs with this condenser?

A: It is designed to work with MRCOOL® VersaPro® Central Ducted Air Handlers.



Q: Is this system variable-speed?

A: Yes. The DC inverter allows continuous modulation for better comfort and efficiency.



Q: Does this condenser support smart controls?

A: Yes. It is Wi-Fi and app compatible using MRCOOL® smart controls.



Q: Is this suitable for large homes?

A: Absolutely. A 5-ton system is ideal for larger homes with proper ductwork.
