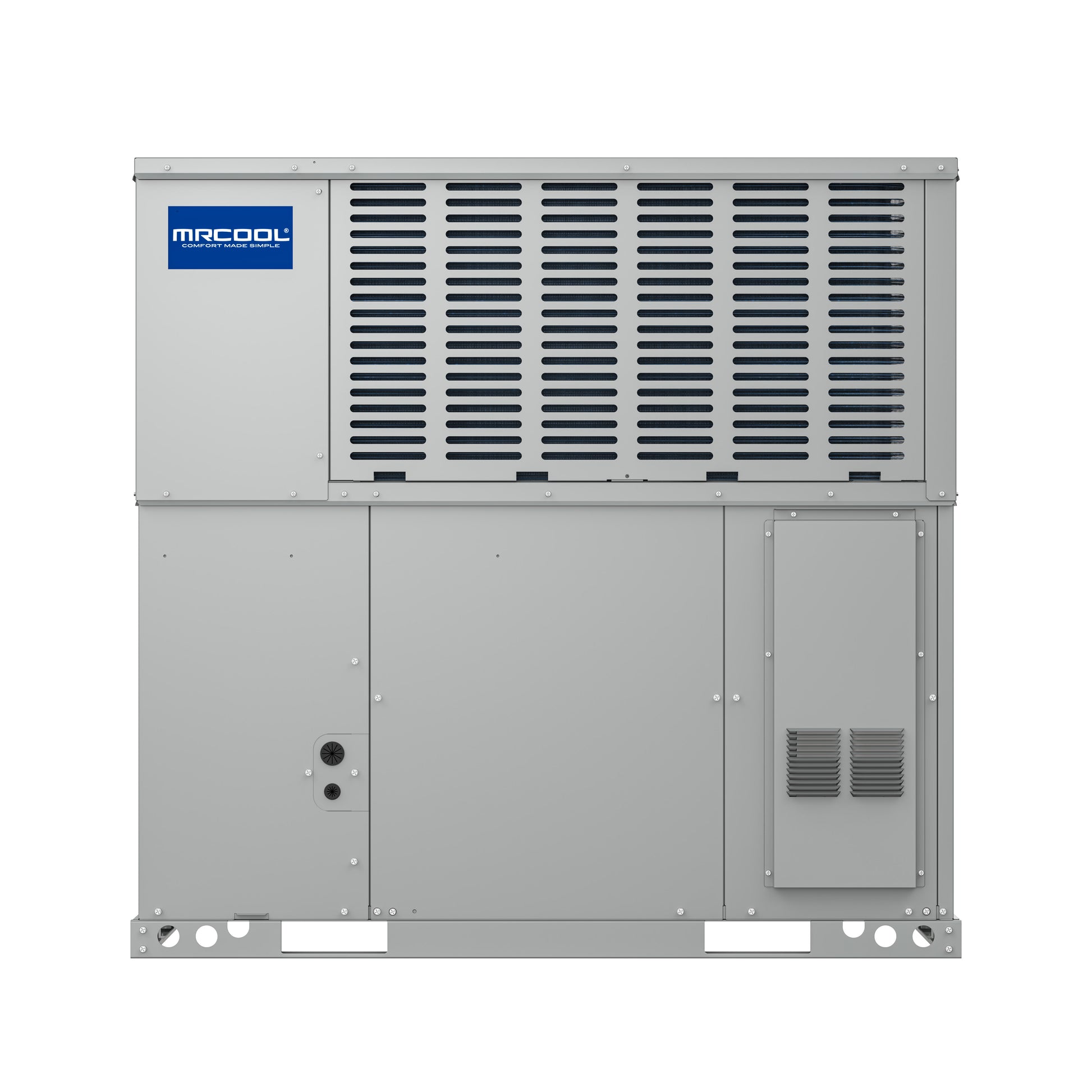

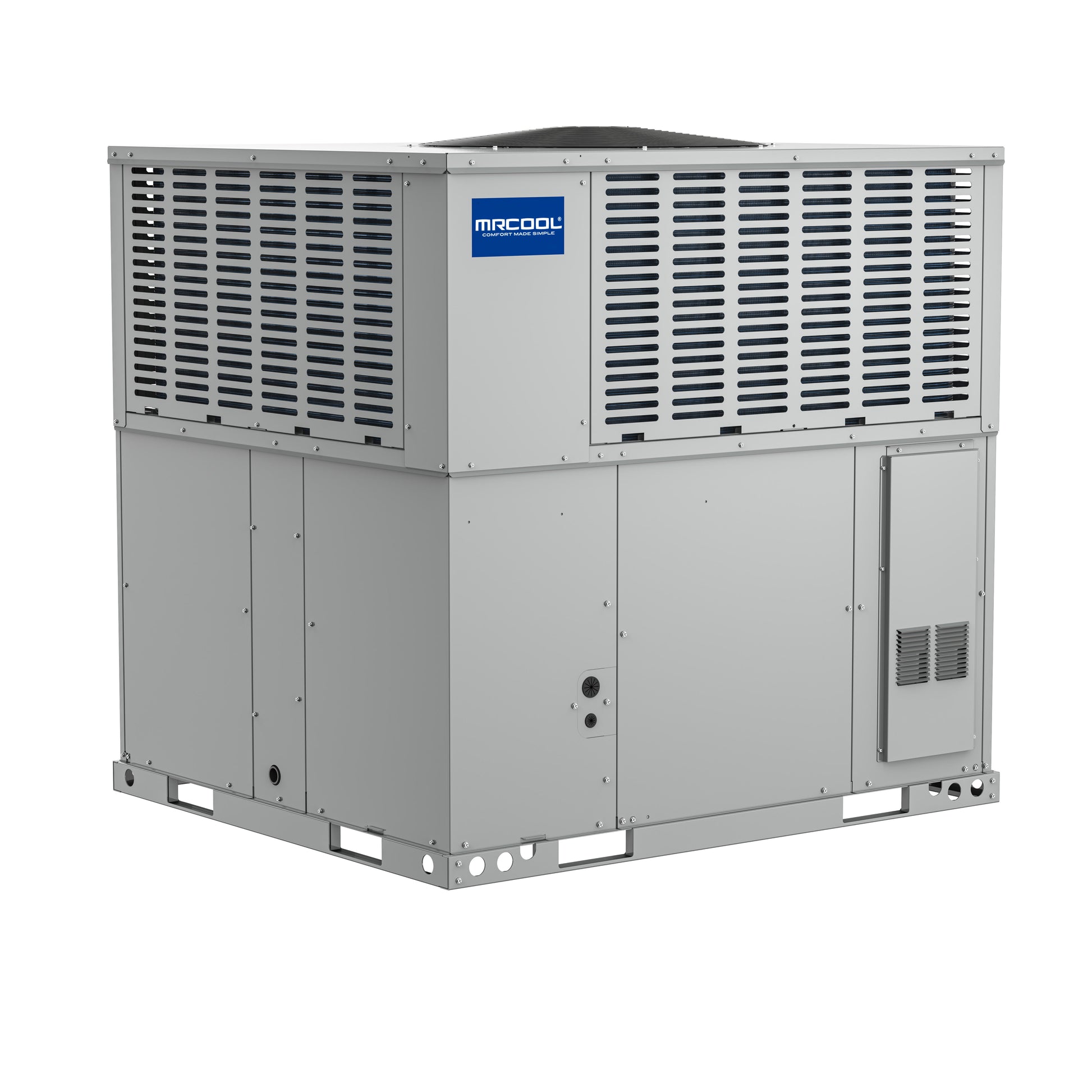

MRCOOL VersaPro 2 Ton 60,000 BTU Packaged Gas AC System – MPG24S060MO13C – R-454B – Downflow/Horizontal

Product Description

Short Description

The MRCOOL VersaPro MPG24S060MO13C is a 2 Ton / 60,000 BTU packaged gas HVAC system that combines 13.4 SEER2 cooling with an 81% AFUE furnace in a single all-in-one rooftop or ground unit. Engineered for durability, reliability, and easy installation, this VersaPro unit delivers powerful cooling in summer and dependable gas heating in winter—ideal for homes that require a single packaged solution instead of split systems.



Full Description

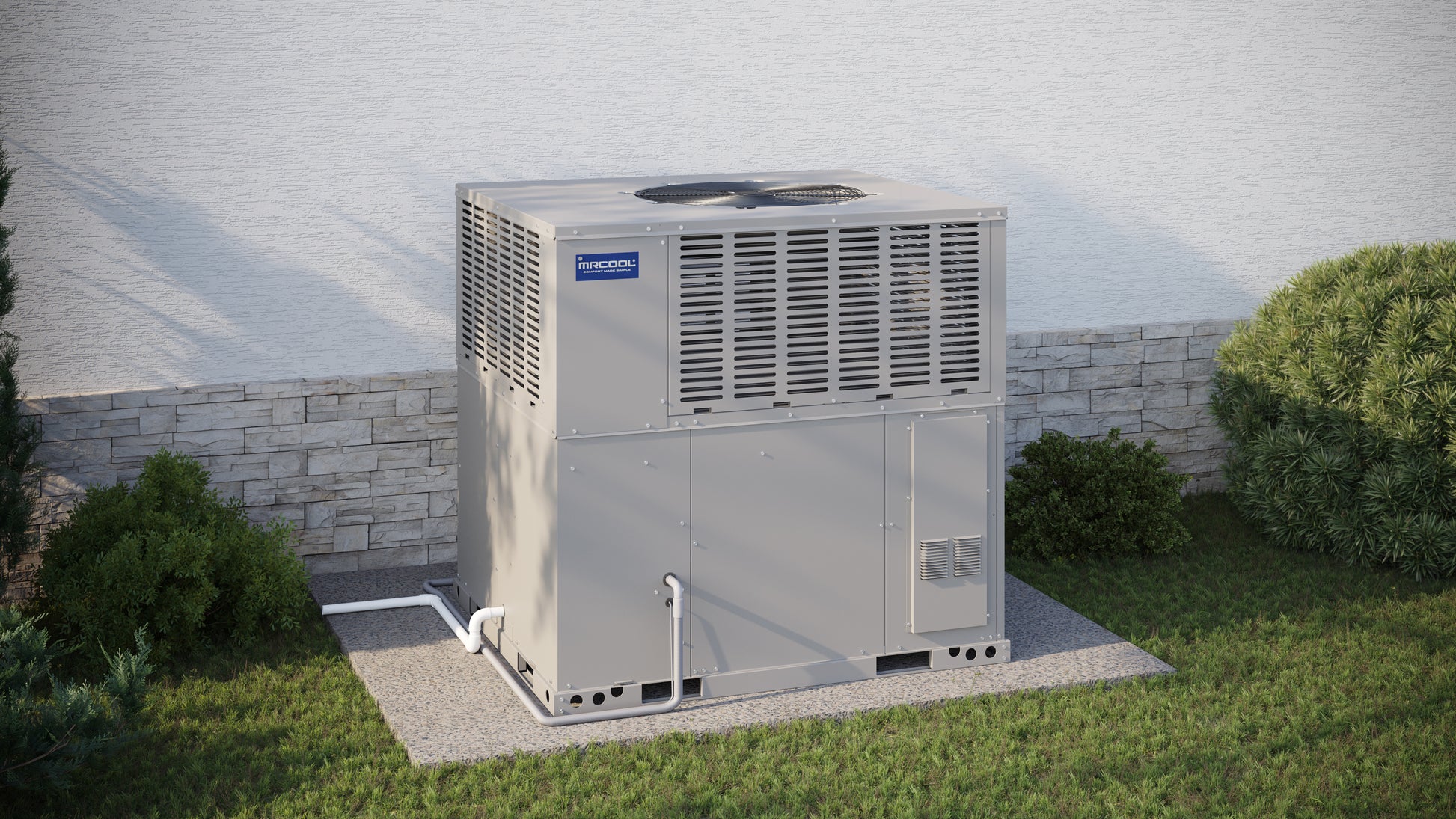

The MRCOOL® VersaPro® MPG24S060MO13C is a true all-in-one packaged gas HVAC solution built for real-world residential comfort. This 2 ton, 60,000 BTU hybrid system pairs a high-efficiency 13.4 SEER2 R-454B air conditioner with an 81% AFUE natural gas furnace, delivering strong cooling performance and reliable winter heat in one outdoor cube. It’s designed for rooftops, slab installs, manufactured homes, garages, and locations where ducted heating and cooling from a single housing is preferred.

The VersaPro system is built around a power-painted galvanized steel cabinet, engineered to resist corrosion, salt exposure, moisture, and weather damage. Inside, the system uses microchannel aluminum coils which dramatically improve heat transfer, longevity, and resistance to coil leaks vs copper tube systems.

An ECM blower motor delivers smooth airflow and lower energy draw, paired with a high-efficiency rotary compressor for dependable temperature regulation. Integrated protections monitor pressure, ignition, and coil performance—reducing failures, maintaining safe operation, and extending life expectancy.

Unlike split systems that require multiple installation points, refrigerant line sets, multi-location wiring, and drilling, the VersaPro gas pack is one housing, one connection, one install point. With support for downflow and horizontal duct configurations, this packaged system solves challenging mechanical rooms, crawlspaces, and retrofit projects.

The unit includes a propane (LP) conversion kit for homes without natural gas, making fuel changes simple and cost-effective. With 10-year registered parts coverage and a lifetime heat exchanger warranty, the VersaPro offers outstanding long-term protection and peace of mind.



WHAT’S INCLUDED

✔ VersaPro MPG24S060MO13C packaged gas unit

✔ Factory-installed gas furnace (81% AFUE)

✔ R-454B refrigerant charge

✔ Factory-wired ECM blower motor

✔ LP conversion kit included

✔ Built-in safeties & diagnostics

✔ Installer / homeowner documentation

10-year parts warranty and lifetime heat exchanger warranty with registration



INSTALLATION + CONFIGURATION

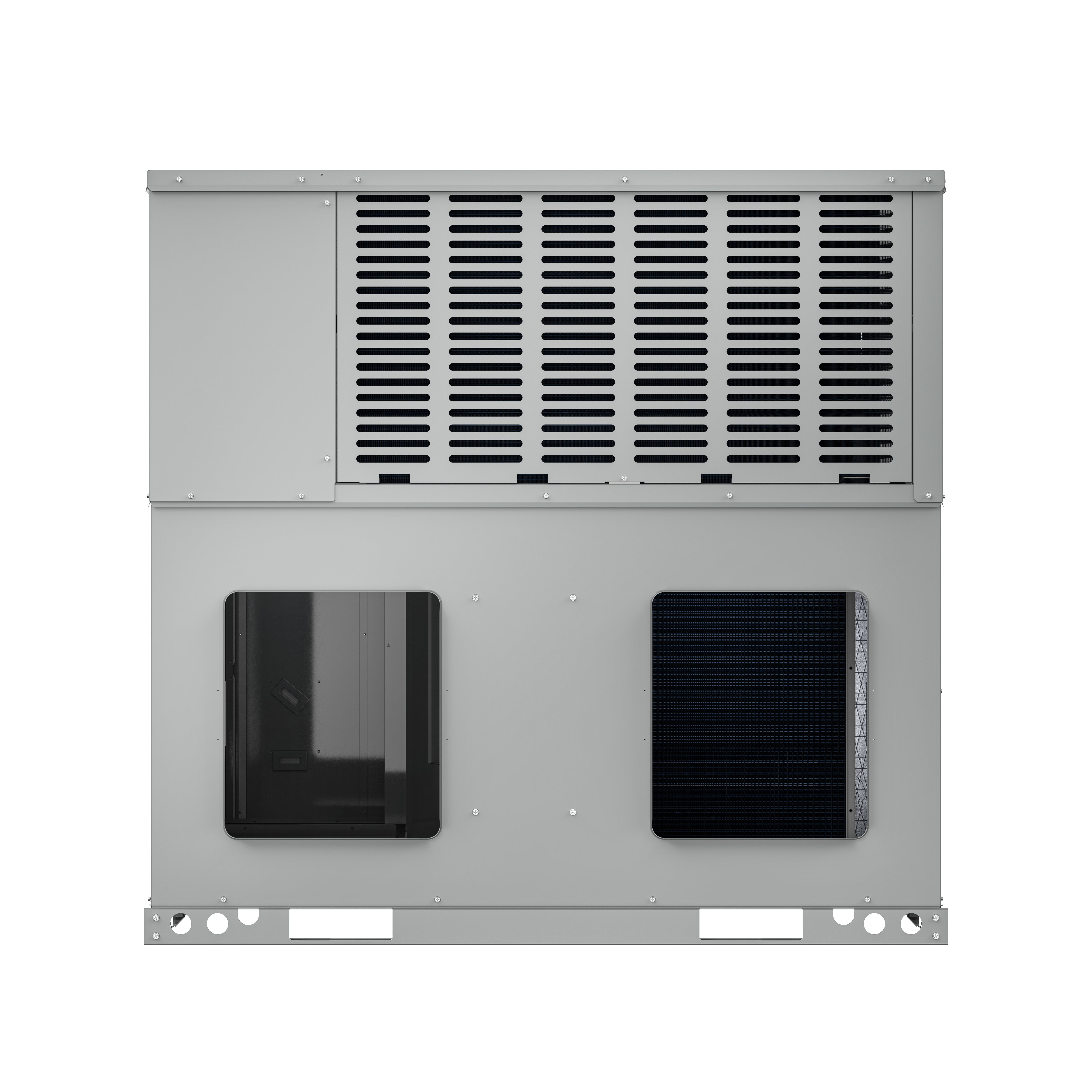

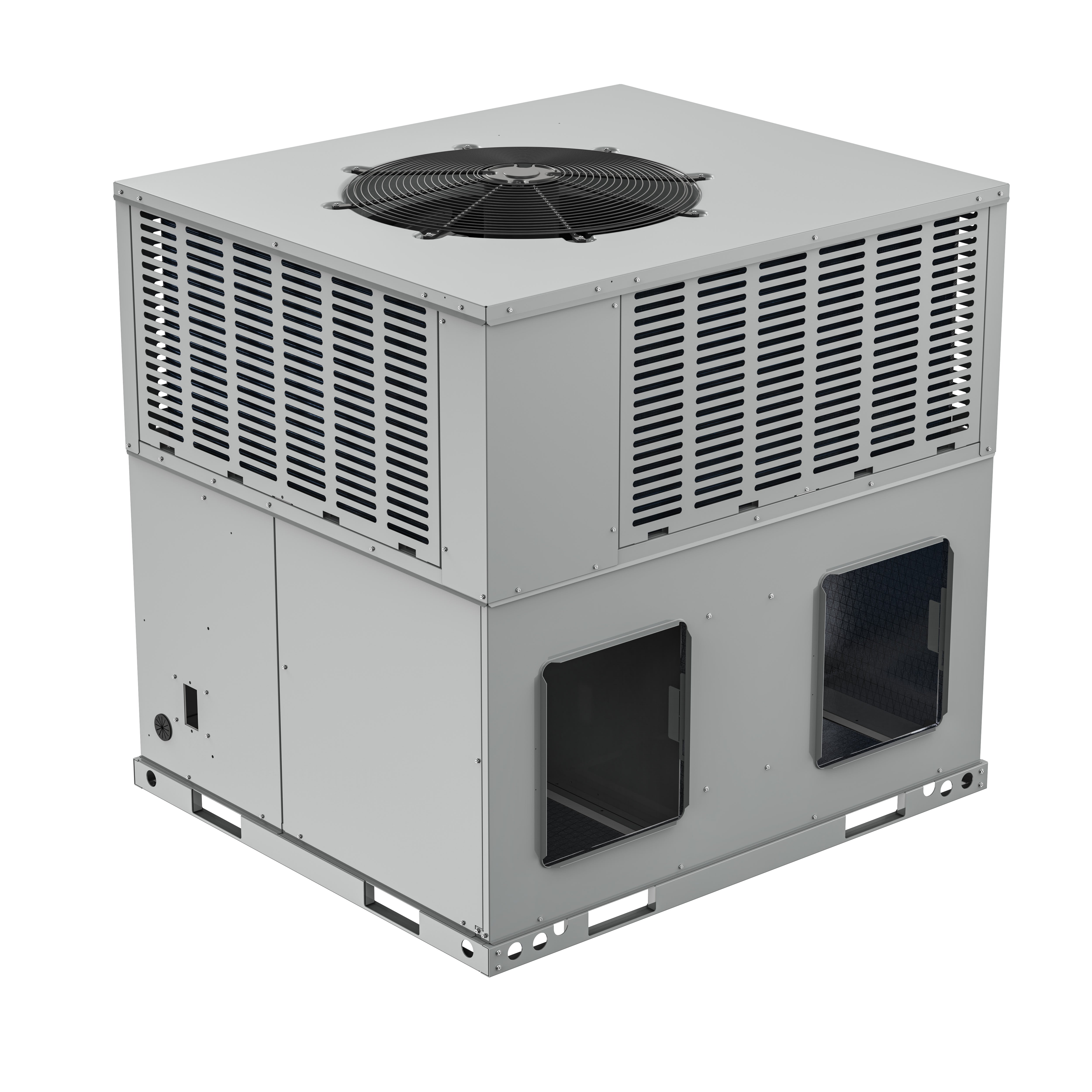

• Works in Downflow OR Horizontal duct layouts
• Ideal for slab, rooftop, mobile home, garage, or attic ducting
• Only one outdoor unit – no refrigerant line sets between components
• Standard 24V thermostat control (no proprietary wall controls)



COOLING PERFORMANCE

• Capacity: 22,800 BTU (2 Ton)
• SEER2: 13.4
• EER2: 11
• Refrigerant: Eco-friendly R-454B
• CFM: 800

HEATING PERFORMANCE

• Input: 60,000 BTU
• Output: 48,000 BTU
• AFUE: 81%
• Burners: 5
• Ignition: Direct Spark Ignition
• LP Conversion Kit: Included

ELECTRICAL / BREAKER REQUIREMENTS

Voltage: 208/230V

Phase: 1

Cycle: 60Hz

Min Circuit Ampacity: 18.8A

Max Fuse/Breaker: 25A

These values matter for inspectors, electricians, and installers.

UNIT DIMENSIONS (NET)

• Width: 50.69 in
• Height: 35.06 in
• Depth: 46.44 in
• Weight: 422 lbs

BEST USE CASES

This VersaPro gas package is ideal for:

• Homes where ducts already exist
• Manufactured homes / mobile homes
• Garages & detached buildings
• Ranch & single-story homes
• Commercial suites
• Rooftop residential installs
• Buildings with no mechanical room
• Areas with both cold winters and hot summers



If a customer wants one exterior box that heats and cools, this is exactly what they want.



SHOULD I BUY A GAS PACKAGE SYSTEM?

A packaged gas HVAC system is the correct choice when:

• You want one outdoor unit instead of a split system
• You live where winters drop below 35°F regularly
• You want the lowest maintenance HVAC setup
• You do not want indoor HVAC components
• Your project is a rooftop or slab install
• You are replacing an old gas pack
• your house ductwork is set up for package units.

FREQUENTLY ASKED QUESTIONS

Q: Is this a furnace and AC in the same unit?

A: Yes. This single housing contains the compressor, heat exchanger, blower, and condenser.

Q: Does this include refrigerant?

A: Yes — the system is factory charged with R-454B.

Q: Does it require a special thermostat?

A: No. It uses a standard 24V thermostat (Nest, Honeywell, Ecobee, etc).

Q: Does it work with propane?

A: Yes — LP kit is included.

Q: Is it inverter?

A: No. This is a single-stage compressor gas pack.



WHY BUY  DIRECT

• USA’s #1 most trusted MRCOOL dealer
• Zero 3rd-party resellers
• Warranty safe — manufacturer-backed
• Expert installation and sizing support
• Nationwide delivery



 Call 615-553-8118 to confirm sizing or duct layout.
