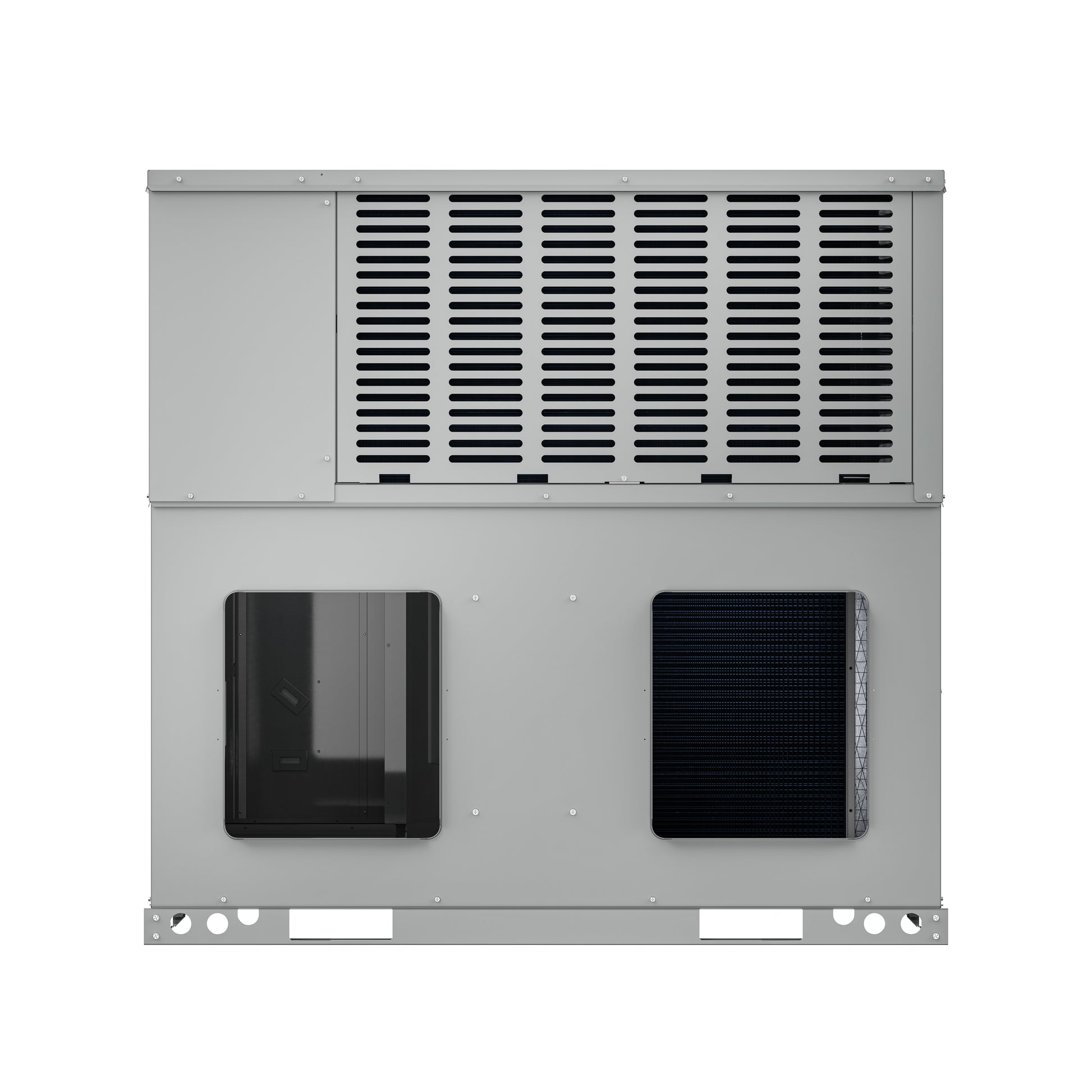

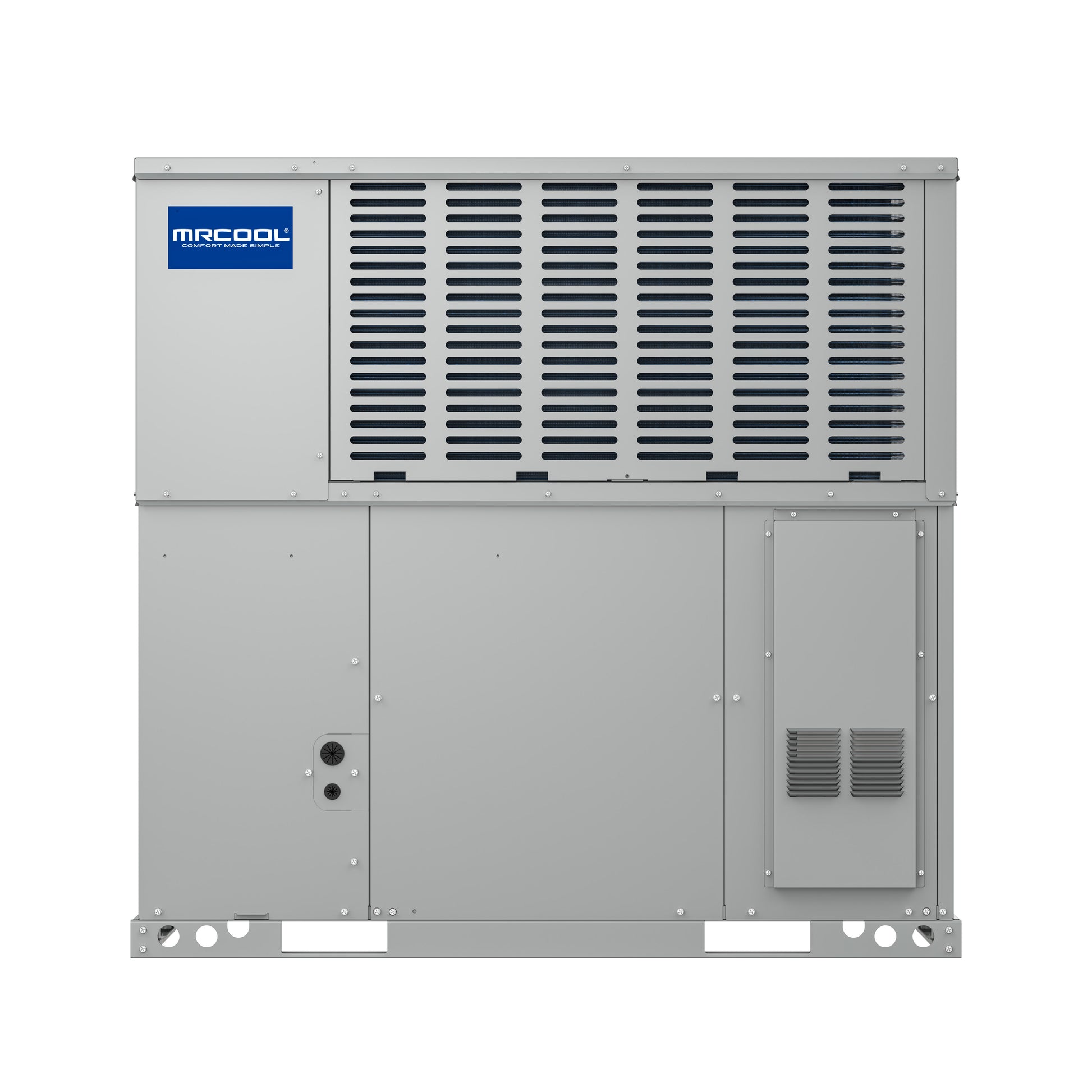

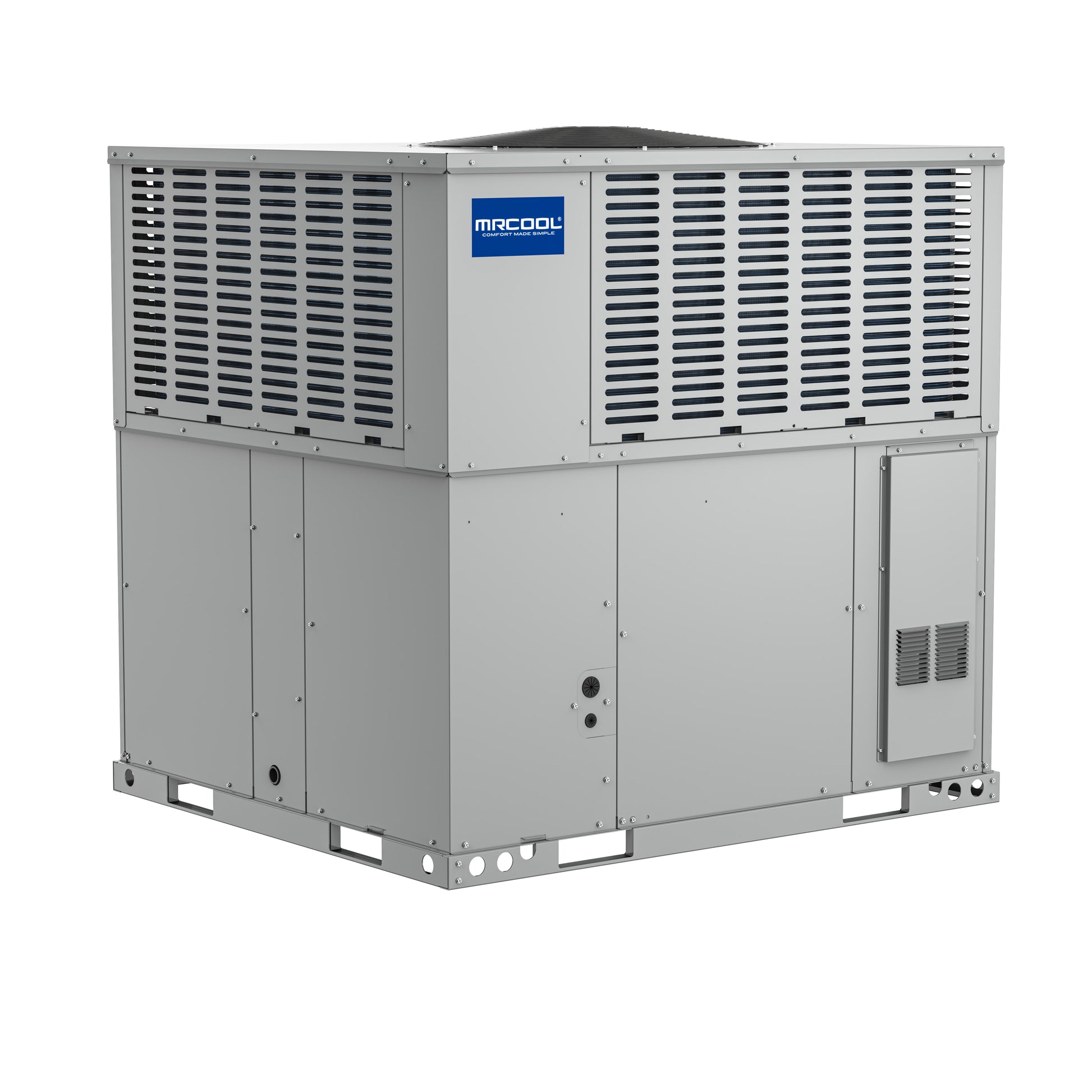

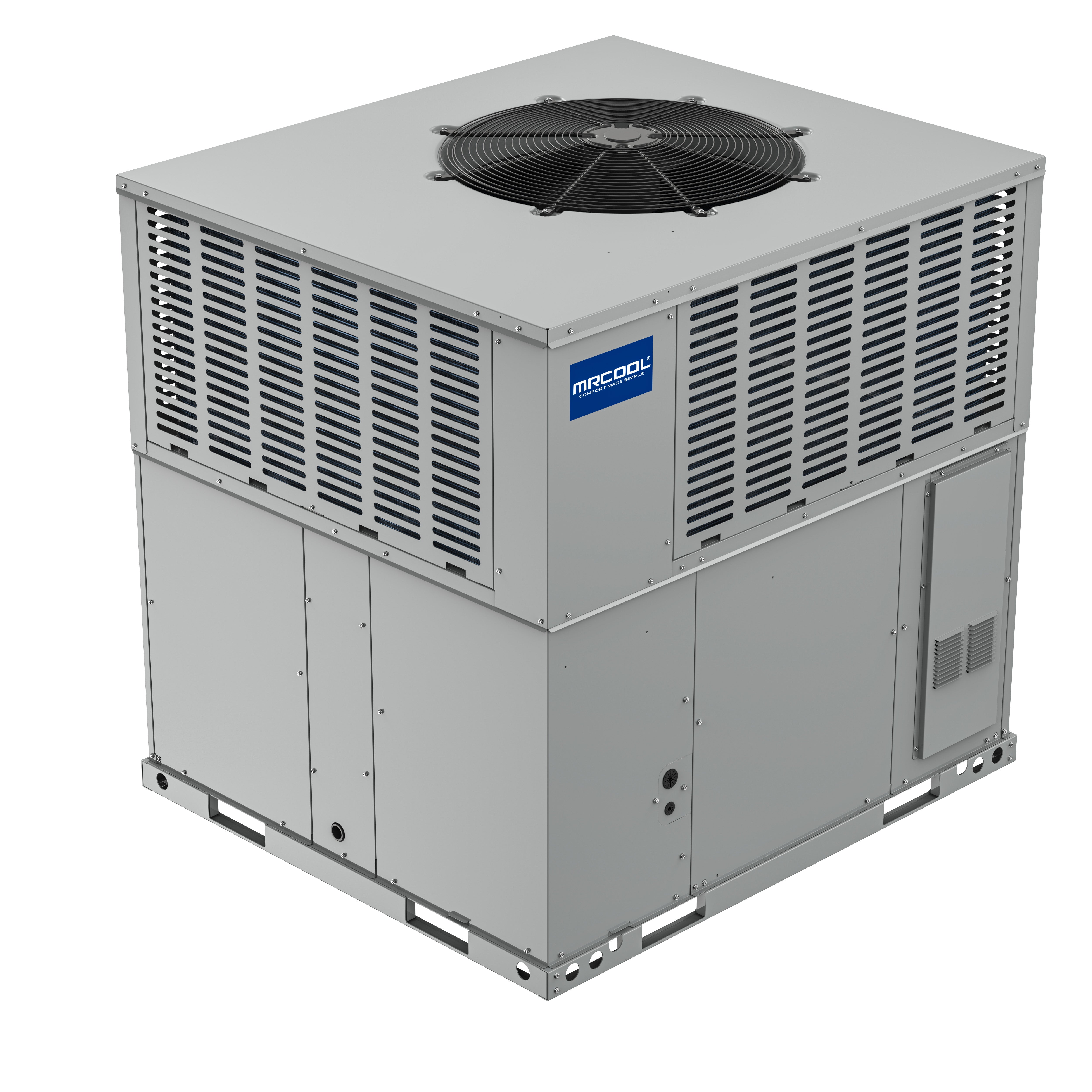

MRCOOL® VersaPro® 4-Ton 90,000 BTU Packaged Gas HVAC System 13.4 SEER2 81% AFUE (R-454B) — MPG48S090MO13C

Product Description

The MRCOOL® VersaPro® MPG48S090MO13C is a high-capacity 4-ton packaged gas HVAC system engineered to deliver powerful, dependable comfort in a single outdoor cabinet. Designed for larger homes and demanding climate conditions, this all-in-one unit pairs a 13.4 SEER2 high-efficiency air conditioner with an 81% AFUE gas furnace, providing strong summer cooling and consistent gas heat throughout winter.

This VersaPro® system uses R-454B refrigerant, a next-generation, low-GWP refrigerant that significantly reduces environmental impact while maintaining excellent performance. Inside the cabinet, microchannel aluminum coils maximize heat transfer efficiency and offer superior corrosion resistance compared to traditional copper coils—reducing maintenance and extending system lifespan.

A high-efficiency scroll compressor works alongside a powerful ECM blower motor to deliver smooth, quiet airflow with precise temperature control and improved energy efficiency. The horizontal discharge design helps keep operating noise low, while the power-painted galvanized steel cabinet is built to withstand harsh outdoor conditions year after year.

Installation flexibility is built in, with support for horizontal or downflow configurations and an included LP conversion kit for propane applications. Advanced safety controls protect against pressure extremes and temperature fluctuations, ensuring long-term reliability. Backed by one of the strongest warranties in its class, the MPG48S090MO13C is a smart, long-term investment in comfort, efficiency, and durability.



KEY FEATURES & BENEFITS

• 4-Ton Cooling Capacity (47,000 BTU) – Ideal for larger homes
• 90,000 BTU Gas Furnace Input / 72,000 BTU Output – Strong winter heating
• 13.4 SEER2 Cooling Efficiency – Reduced energy costs
• 81% AFUE Gas Furnace – Reliable, proven heating performance
• R-454B Refrigerant – Lower environmental impact, future-ready
• All-In-One Packaged System – Simplified installation & servicing
• ECM Blower Motor (3/4 HP) – Quiet operation, precise airflow control
• Scroll Compressor – Smooth, efficient cooling performance
• Microchannel Aluminum Coils – Enhanced heat transfer & corrosion resistance
• Horizontal Discharge Cabinet – Reduced operational noise
• Horizontal & Downflow Installation Options
• LP Conversion Kit Included – Natural gas or propane ready
• AHRI Certified / UL / CSA / ETL Listed – Verified performance & safety



ELECTRICAL & GAS REQUIREMENTS

• Voltage: 208/230V
• Phase: Single
• Max Fuse / Breaker: 50 Amps
• Minimum Circuit Ampacity (MCA): 36.4 Amps
• Fuel Type: Natural Gas or Propane
• Gas Connection Size: 1/2 in
• Drain Connection Size: 3/4 in
• Control Type: 24V Thermostat



DIMENSIONS & WEIGHT

Installed Unit Dimensions

• Width: 51.56 in
• Height: 44.81 in
• Depth: 49.75 in

Weight

• Net Weight: 560 lbs
• Shipping Weight: 581 lbs

WARRANTY INFORMATION

• Registered Warranty

• 10-Year Parts Warranty
• Lifetime Heat Exchanger Warranty
• Base Warranty (Unregistered)

• 5-Year Parts Warranty
• 20-Year Heat Exchanger Warranty



FREQUENTLY ASKED QUESTIONS

Q: Is this a complete heating and cooling system?

A: Yes. This packaged unit includes both central air conditioning and a gas furnace in one outdoor cabinet.

Q: Can this unit run on propane?

A: Yes. An LP conversion kit is included for propane installations.

Q: What refrigerant does this system use?

A: R-454B refrigerant, designed for lower environmental impact.

Q: What installation orientations are supported?

A: Horizontal and downflow installations are supported.

Q: Is professional installation required?

A: Professional installation is strongly recommended to meet gas, electrical, and local code requirements.
