MRCOOL® VersaPro® 5-Ton 110,000 BTU Packaged Gas HVAC System 13.4 SEER2 81% AFUE (R-454B) — MPG60S110MO13C

Product Description

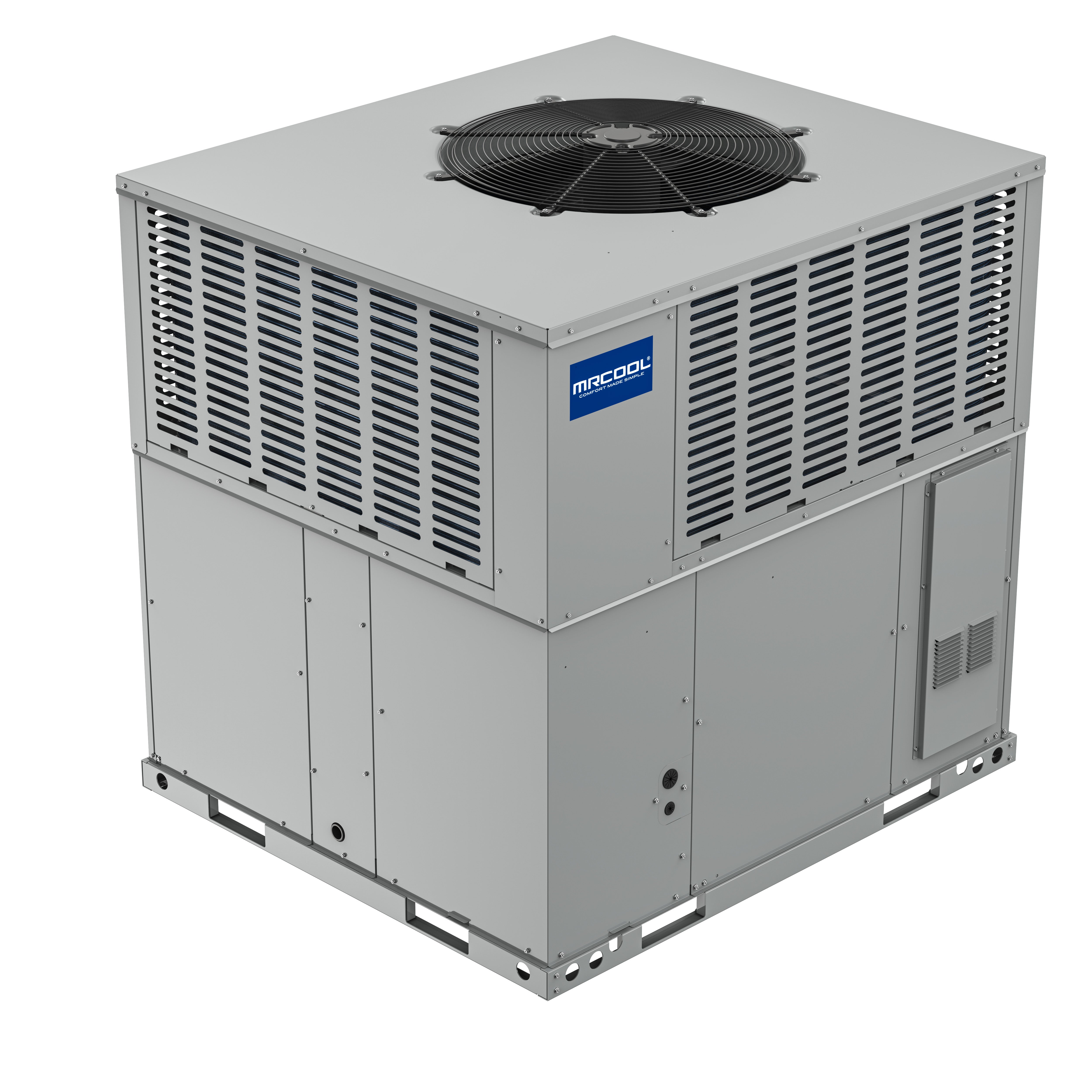

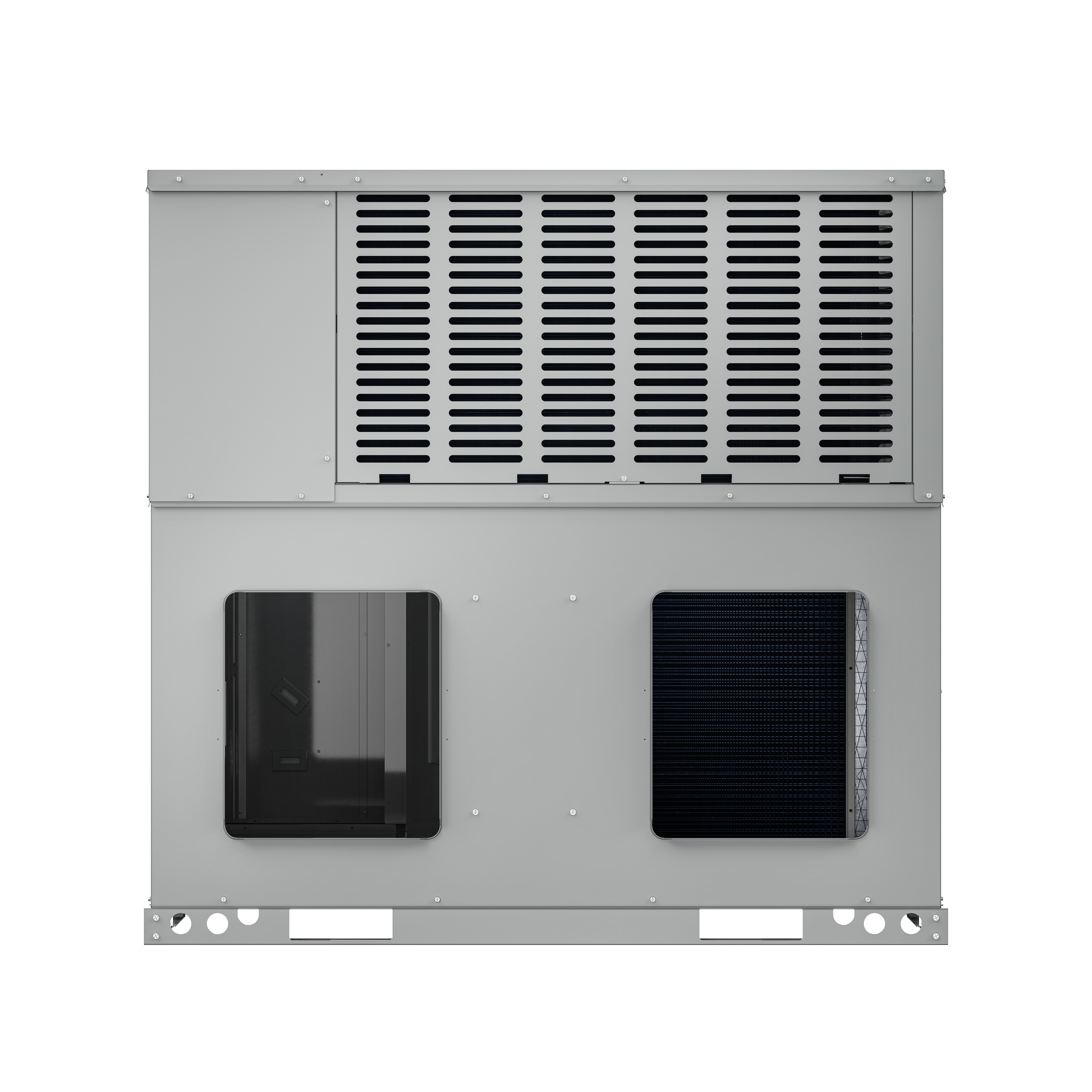

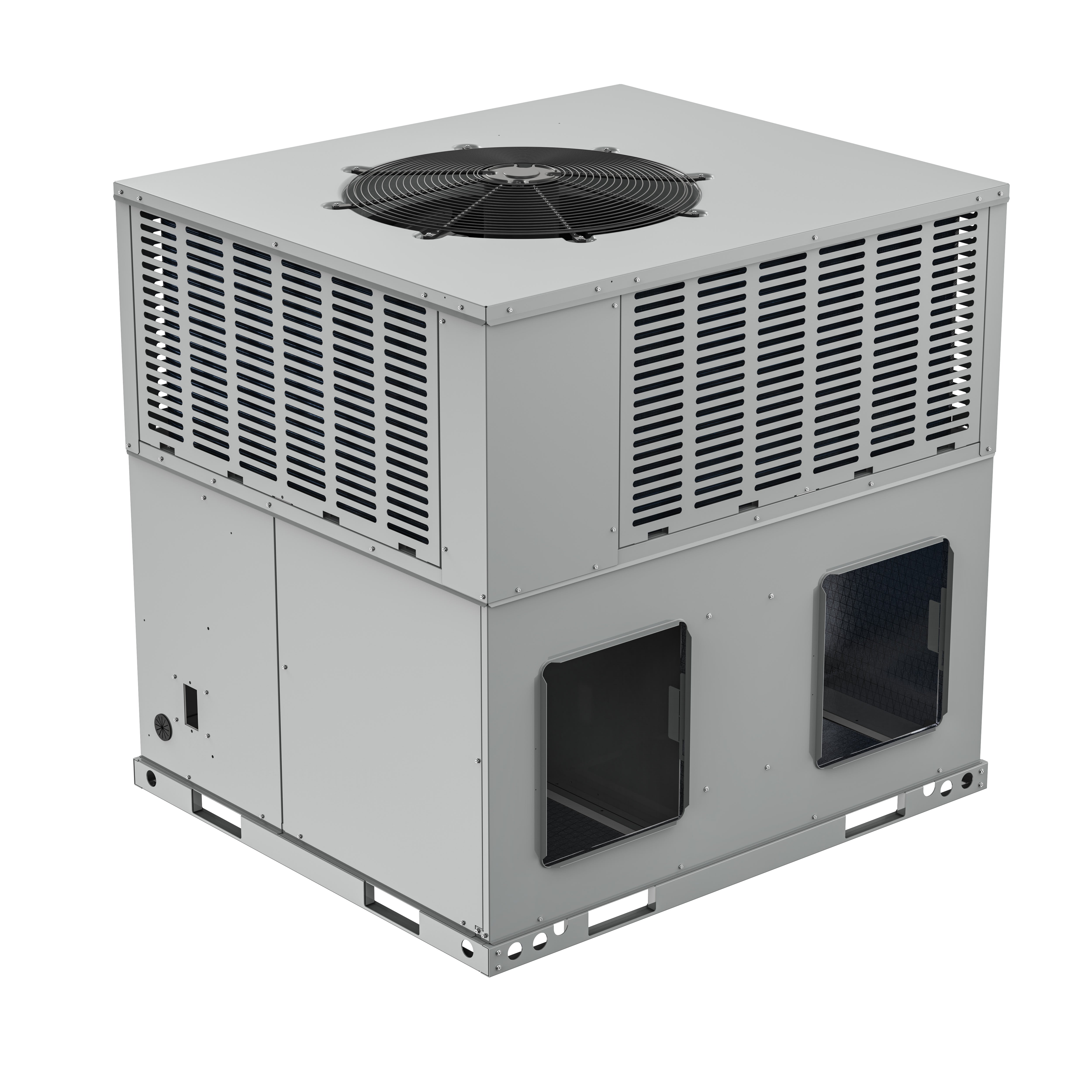

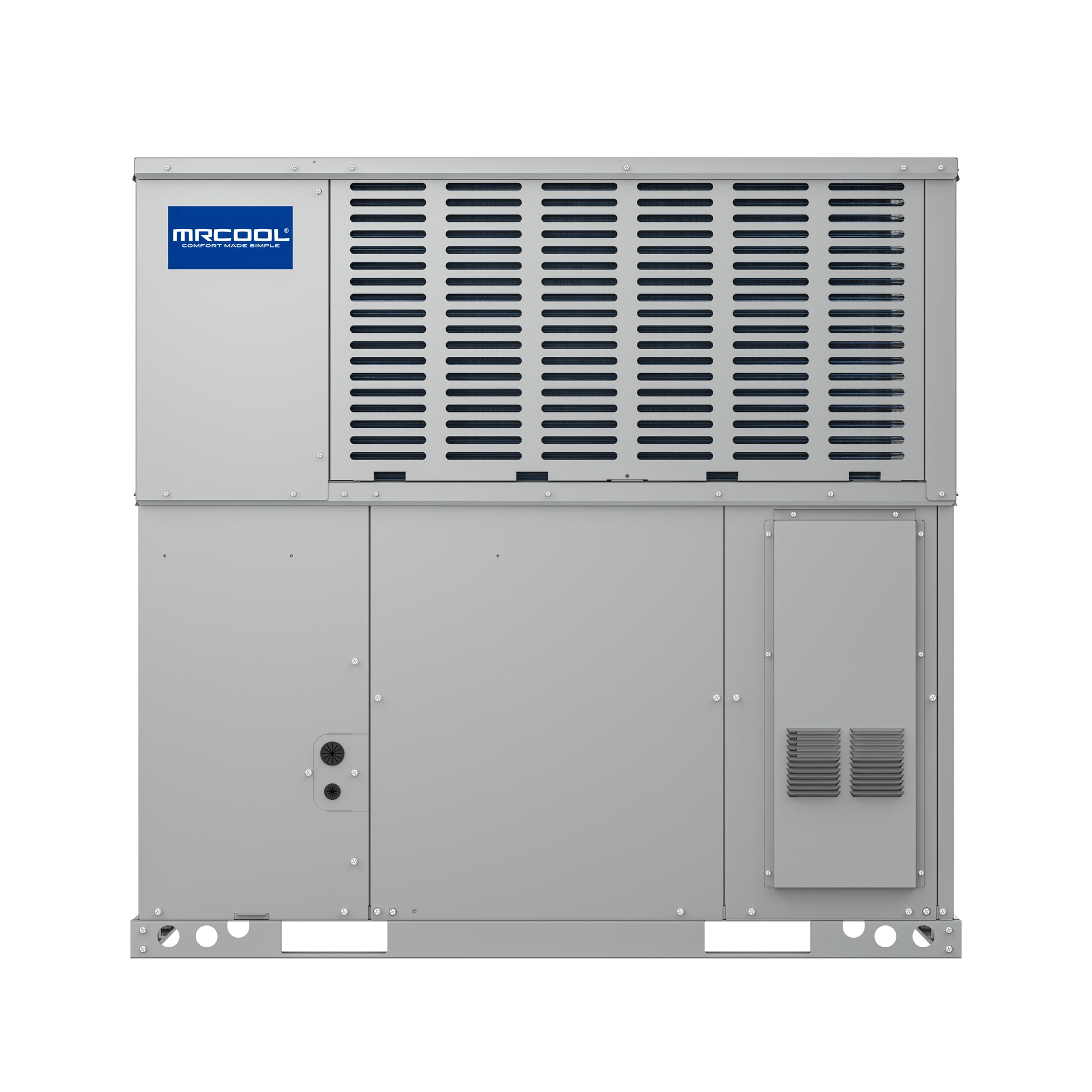

The MRCOOL® VersaPro® MPG60S110MO13C is a high-capacity 5-ton packaged gas HVAC system built to deliver powerful, dependable comfort for large homes, commercial spaces, and demanding climates. This all-in-one outdoor system combines a 13.4 SEER2 high-efficiency air conditioner with an 81% AFUE gas furnace, providing strong cooling performance in extreme summer heat and reliable gas heating throughout winter.

Designed with longevity and efficiency in mind, this system operates on R-454B refrigerant, a next-generation, low-GWP refrigerant that significantly reduces environmental impact while maintaining excellent performance. Inside the cabinet, microchannel aluminum coils improve heat transfer and resist corrosion far better than traditional copper coils, helping lower maintenance needs and extend system lifespan.

A high-efficiency scroll compressor paired with a heavy-duty ECM blower motor delivers smooth, consistent airflow with reduced energy consumption and quieter operation. The horizontal discharge design helps minimize operational noise, while the power-painted galvanized steel cabinet protects the unit from rust, harsh weather, and long-term wear.

The VersaPro® 60K 110,000 BTU system supports horizontal or downflow installation, making it ideal for rooftop or ground-level applications. An LP conversion kit is included, allowing easy conversion from natural gas to propane. Advanced safety controls monitor pressure levels and coil temperatures to ensure dependable performance even under fluctuating load conditions. Backed by one of the strongest warranties in its class, the MPG60S110MO13C is a long-term investment in comfort, efficiency, and reliability.



 KEY FEATURES & BENEFITS

• 5-Ton Cooling Capacity (57,000 BTU) – Designed for large spaces
• 110,000 BTU Gas Furnace Input / 88,000 BTU Output – Powerful winter heating
• 13.4 SEER2 Cooling Efficiency – Lower operating costs
• 81% AFUE Gas Furnace – Proven, dependable heating performance
• R-454B Refrigerant – Low-GWP, environmentally responsible
• All-In-One Packaged Design – Simplified installation & servicing
• ECM Blower Motor (3/4 HP) – Quiet, efficient airflow control
• Scroll Compressor – Smooth, high-efficiency cooling
• Microchannel Aluminum Coils – Enhanced heat transfer & corrosion resistance

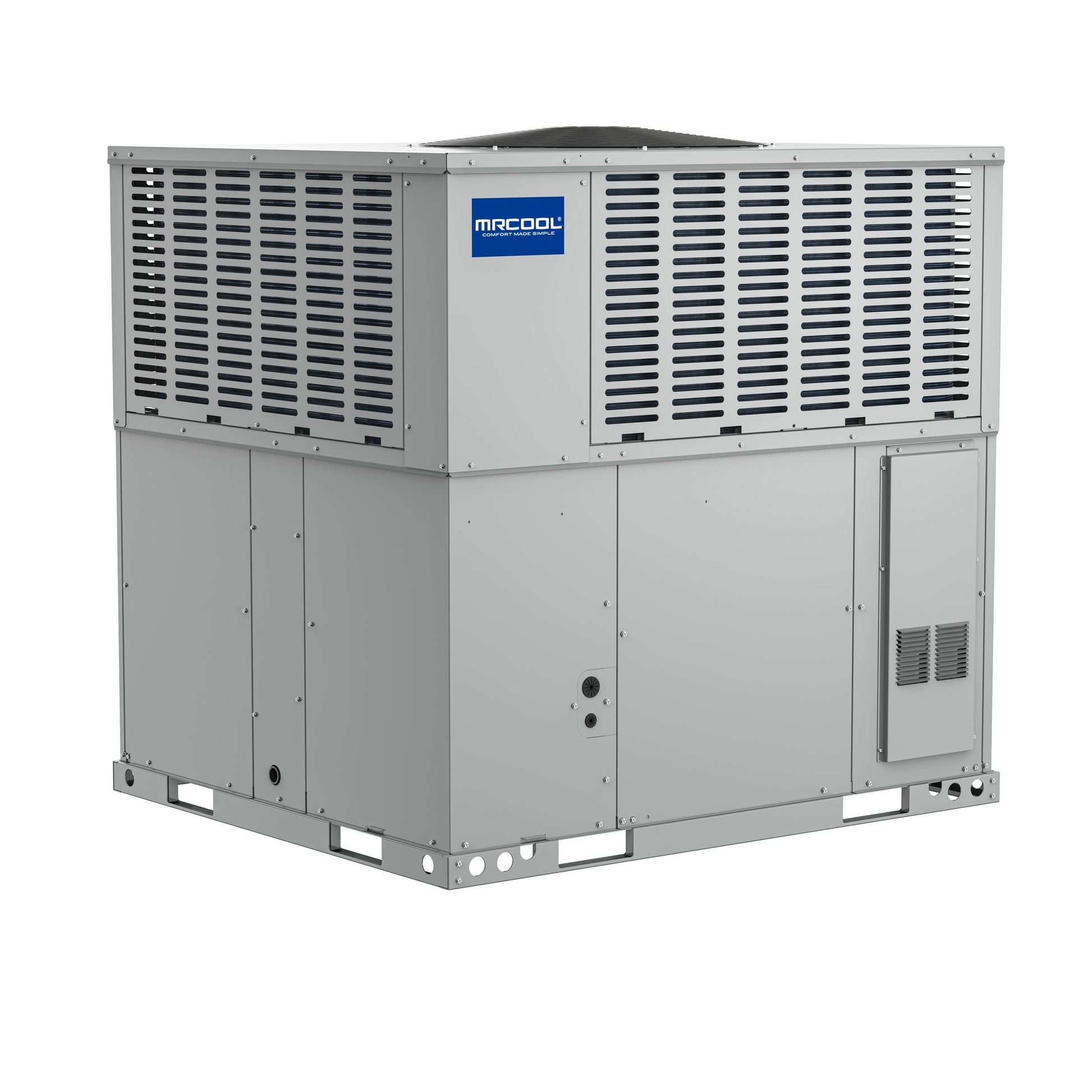

• Horizontal Discharge Cabinet – Reduced operating noise
• Horizontal & Downflow Installation Options
• LP Conversion Kit Included – Natural gas or propane compatible
• AHRI Certified / UL / CSA / ETL Listed – Verified performance & safety



ELECTRICAL & GAS REQUIREMENTS

• Voltage: 208/230V
• Phase: Single
• Max Fuse / Breaker: 60 Amps
• Minimum Circuit (MCA): 41.4 Amps
• Fuel Type: Natural Gas or Propane
• Gas Connection Size: 1/2 in
• Drain Connection Size: 3/4 in
• Control Type: 24V Thermostat



 DIMENSIONS & WEIGHT

Installed Unit Dimensions

• Width: 51.56 in
• Height: 44.81 in
• Depth: 49.75 in

Weight

• Net Weight: 562 lbs
• Shipping Weight: 584 lbs



WARRANTY INFORMATION

• Registered Warranty

• 10-Year Parts Warranty
• Lifetime Heat Exchanger Warranty
• Base Warranty (Unregistered)

• 5-Year Parts Warranty
• 20-Year Heat Exchanger Warranty



FREQUENTLY ASKED QUESTIONS

Q: Is this a complete heating and cooling system?

A: Yes. This is a packaged gas HVAC system that includes both air conditioning and a gas furnace in one outdoor cabinet.



Q: Can this unit be installed on propane?

A: Yes. An LP conversion kit is included for propane installations.



Q: What refrigerant does this system use?

A: R-454B refrigerant, designed to meet modern environmental standards.



Q: What installation configurations are supported?

A: Horizontal and downflow installations are supported.



Q: Is professional installation required?

A: Yes. Professional installation is strongly recommended to meet gas, electrical, and local code requirements.
