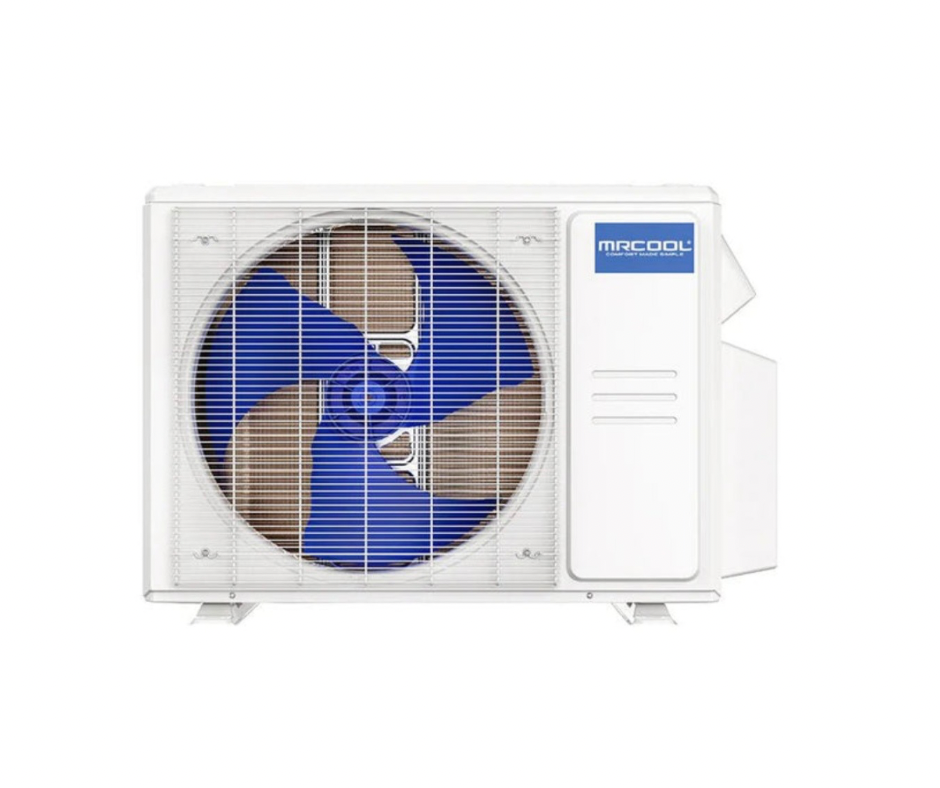

MRCOOL® Hyper Heat 2nd Gen 48K BTU 4 Ton 16.5 SEER2 Central Ducted Heat Pump Condenser, CENTRAL-48-HP-C-230B00-O

Product Description



The MRCOOL® Central Hyper Heat 48K (4-Ton) Condenser is engineered for large homes and demanding climates, delivering dependable comfort through freezing winters and extreme summer heat. Built with DC inverter and variable-speed technology, this 2nd Generation Hyper Heat system provides smooth operation, precise temperature control, and long-term energy savings.

With a 16.5 SEER2 efficiency rating and an impressive 50,000 BTU heating capacity, this condenser is designed to maintain strong heating output where standard heat pumps struggle. It pairs seamlessly with the MRCOOL® VersaPro® 4-Ton Central Ducted Air Handler and is also compatible with dual-fuel systems using gas or electric furnaces, giving installers and homeowners maximum flexibility.

The system operates on R-454B refrigerant, a next-generation, low-GWP refrigerant that meets modern efficiency and environmental standards. The outdoor unit features a painted galvanized steel cabinet for durability, operates at 65 dBA, and the WiFi and app-based smart control through the MRCOOL® Smart Thermostat (sold separately)

Backed by a 10-year warranty covering the compressor, parts, and labor, the MRCOOL Central Hyper Heat 48K condenser delivers powerful performance, efficiency, and long-term peace of mind.



COMPATIBILITY & SYSTEM PAIRINGS

✔ MRCOOL® VersaPro® 4-Ton Central Ducted Air Handler

✔ Compatible with gas or electric furnaces (dual-fuel ready)

✔ Optional electric heat kits supported

✔ MRCOOL® Smart Thermostat (sold separately)

✔ WiFi & mobile app control



TECHNICAL SPECIFICATIONS

Brand: MRCOOL

Series: Central Ducted Hyper Heat – 2nd Gen

Model: CENTRAL-48-HP-C-230B00-O

Unit Type: Split System Heat Pump

Equipment Type: Outdoor Condenser



Cooling Capacity: 48,000 BTU

Heating Capacity: 50,000 BTU

Tonnage: 4 Ton



SEER2: 16.5

EER2: 10.5

HSPF2 (Region 4): 9.5

HSPF2 (Region 5): 8



Voltage: 208/230V

Phase: 1

Frequency: 60 Hz

Max Breaker: 40A

Circuit Ampacity: 38A



Refrigerant Type: R-454B

Refrigerant Charge: 134.04 oz

Liquid Line: 3/8”

Suction Line: 3/4”



Sound Rating: 65 dBA



Certifications: ENERGY STAR®, AHRI, ETL

WiFi / App Control: Yes



Warranty:

• 10-Year Compressor

• 10-Year Parts

• 10-Year Labor



DIMENSIONS & WEIGHT

Net Dimensions:

• Width: 38.58”

• Depth: 16.34”

• Height: 38.39”



Net Weight: 201.06 lbs

Shipping Dimensions:

• Width: 45.08”

• Depth: 19.68”

• Height: 42.52”

Shipping Weight: 232.36 lbs

Note: These units are designed for use with No Vac Quick Connect Line Sets, which come pre-charged with R-454B refrigerant for a quicker and easier installation. Line sets are not included but can be purchased separately. If you prefer the traditional flare nut configuration, you're in luck—stub pipes and copper nuts are included







Frequently Asked Questions

Is this condenser compatible with furnaces?

Yes. This unit supports dual-fuel installations with gas or electric furnaces when paired with a compatible air handler.

Is this true Hyper Heat performance?

Yes. MRCOOL Hyper Heat systems are engineered to maintain strong heating output in cold climates where standard heat pumps lose capacity.

What refrigerant does this system use?

It uses R-454B, a low-GWP refrigerant designed to meet modern environmental standards.
