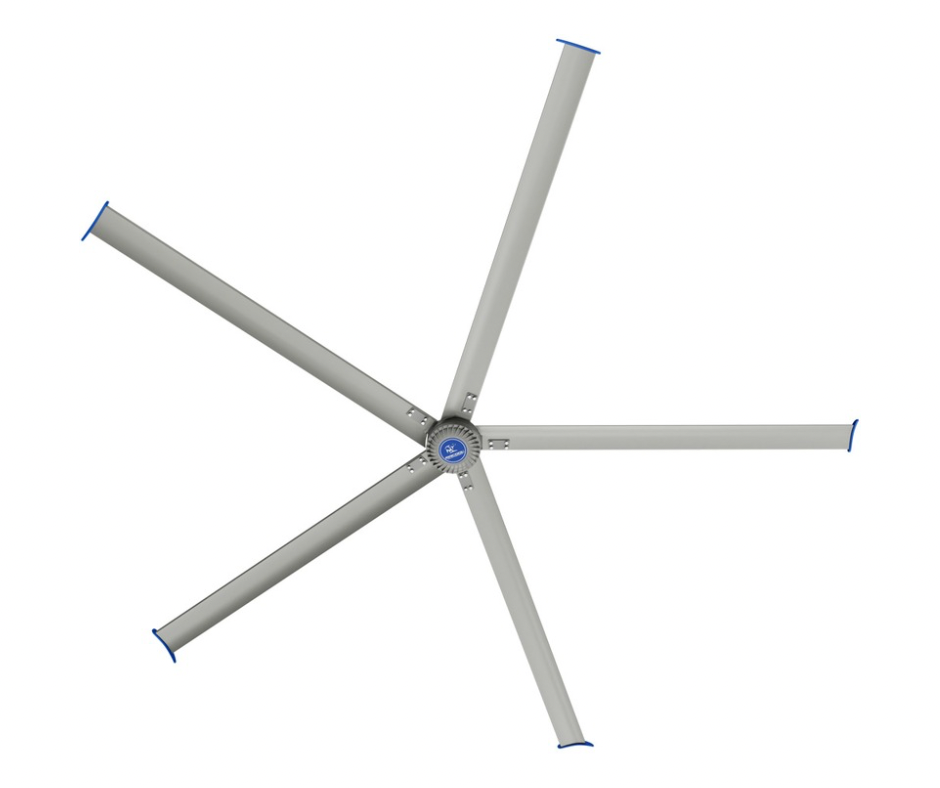

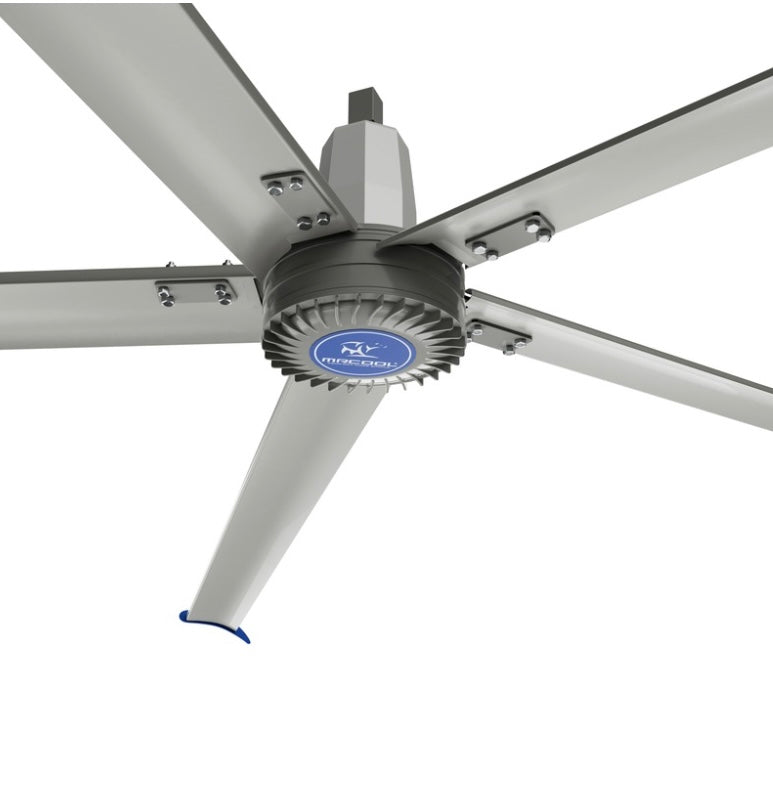

MRCOOL® CoolBlade® 16-Ft Industrial HVLS Ceiling Fan — Ultra-Quiet High-Volume Commercial Fan (MCFAN16PBGR)

Product Description

The MRCOOL® CoolBlade® MCFAN16PBGR Industrial HVLS Ceiling Fan is a high-volume, low-speed (HVLS) commercial fan engineered to move massive amounts of air efficiently, quietly, and safely across large spaces. Designed for warehouses, manufacturing facilities, workshops, barns, gyms, distribution centers, and commercial buildings, this 16-foot fan delivers powerful airflow while maintaining whisper-quiet operation.



With an impressive air volume of 10,000 m³/min and coverage up to 1,640 square feet, the CoolBlade® HVLS fan improves comfort by evenly circulating air, reducing hot spots, controlling humidity, and enhancing perceived cooling without relying on expensive air conditioning. Operating at only 38 dBA, it’s one of the quietest industrial fans in its class.



Safety is a core focus of the CoolBlade® design. Reinforced magnesium alloy blades, an integrated motor bracket, anti-falling expansion sleeve, steel wire safety rope, and electrical overload protection ensure reliable long-term operation in demanding environments. A locking control box with emergency stop adds another layer of operational security for commercial and industrial settings.



The advanced push-button digital control system features four-button operation, speed adjustment, real-time display, and IP66 protection, making it suitable for dusty, humid, or challenging conditions. Flexible mounting options allow installation on I-beam steel, square steel, or concrete ceilings, giving installers maximum versatility.



Backed by a 2-year parts warranty, the MRCOOL® CoolBlade® 16-Ft Industrial HVLS Fan is a cost-effective solution for improving airflow, reducing energy costs, and enhancing comfort in large commercial and industrial spaces.



 KEY FEATURES & BENEFITS

• 16-Foot HVLS Design – Massive airflow with minimal energy usage
• 10,000 m³/min Air Volume – High-performance circulation for large spaces
• Ultra-Quiet Operation – Only 38 dBA
• Reinforced Magnesium Alloy Blades – Lightweight, strong, and durable
• Industrial-Grade Safety System – Anti-fall protection, safety rope, overload protection
• Digital Push-Button Control Panel – Simple speed adjustment & monitoring
• IP66 Rated Control System – Dust-tight and water-resistant
• Multiple Mounting Options – I-beam, square steel, or concrete
• Energy-Efficient Cooling Alternative – Reduces HVAC runtime and costs



 PERFORMANCE & ELECTRICAL

• Voltage: 220–240V
• Phase: Single Phase
• Frequency: 60 Hz
• Sound Level: 38 dBA
• Maximum Coverage Area: 1,640 sq ft
• Air Volume: 10,000 m³/min

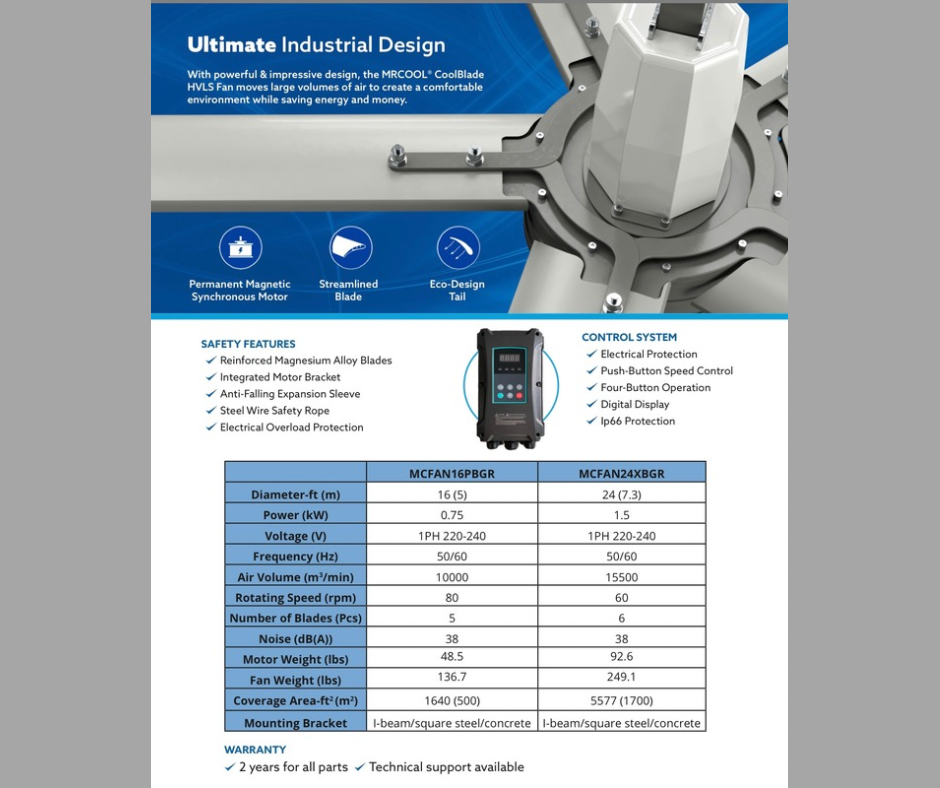

TECHNICAL SPECIFICATIONS

• Model: MCFAN16PBGR
• Brand: MRCOOL
• Series: CoolBlade® Industrial HVLS Fan
• Fan Diameter: 16 ft
• Number of Blades: 5
• Blade Material: Reinforced Magnesium Alloy
• Motor Weight: 48.5 lbs
• Total Fan Weight: 136.7 lbs
• Mounting Bracket Compatibility:

• I-Beam
• Square Steel
• Concrete

SAFETY & CONTROL FEATURES

Safety Systems

• Reinforced Magnesium Alloy Blades
• Integrated Motor Bracket
• Anti-Falling Expansion Sleeve
• Steel Wire Safety Rope
• Electrical Overload Protection
• Locking Control Box with Emergency Stop



Control System

• Push-Button Speed Control
• Four-Button Operation
• Digital Display
• Electrical Protection
• IP66 Rated Enclosure



DIMENSIONS & WEIGHT

• Motor Weight: 48.5 lbs
• Total Fan Weight: 136.7 lbs

(Exact installation height and spacing vary by application and ceiling type.)



WARRANTY INFORMATION

• Parts Warranty: 2 Years



FREQUENTLY ASKED QUESTIONS

Q: What type of buildings is this fan designed for?

A: Ideal for warehouses, factories, gyms, barns, workshops, distribution centers, and large commercial spaces.



Q: Is this fan loud?

A: No. It operates at just 38 dBA, making it extremely quiet for an industrial HVLS fan.



Q: Can it be mounted on steel or concrete?

A: Yes. It supports I-beam steel, square steel, and concrete mounting.



Q: Does it help reduce HVAC costs?

A: Yes. HVLS fans improve air circulation, allowing HVAC systems to run less while maintaining comfort.
