MRCOOL® DIY® 5th Gen Multi-Zone 3-Zone 36,000 BTU 23 SEER2 (6K + 9K + 9K)- 3x 16ft line sets- Ductless Mini-Split Air Conditioner & Heat Pump- DIYM336HPW03D00

Product Description

Model: DIYM336HPW03D00



The MRCOOL® DIYM336HPW03D00 is a high-efficiency 3-zone ductless mini-split system engineered for homeowners who want room-by-room comfort, lower energy costs, and a true DIY installation—without sacrificing professional-grade performance.

This system is powered by the MRCOOL® DIY® 5th Generation 36,000 BTU multi-zone condenser and paired with one 6,000 BTU air handler and two 9,000 BTU air handlers, making it ideal for bedrooms, offices, guest rooms, bonus rooms, and smaller living areas. Each zone operates independently, allowing precise temperature control while maximizing efficiency and comfort.

Installation is simplified using MRCOOL® DIY® QuickConnect® technology. The included 16-ft pre-charged QuickConnect® line sets arrive factory-sealed with R-454B refrigerant, eliminating the need for vacuum pumps, refrigerant gauges, or licensed HVAC labor. The included DIYPRO® cable removes the need for electrical conduit, further reducing installation time and cost.

With DC inverter technology, Gold Fin® corrosion protection, Follow Me® temperature sensing, and full MRCOOL® Smart HVAC Controller® App integration, this system delivers quiet operation, long-term reliability, and smart energy savings—making it one of the strongest DIY multi-zone systems available today.

 KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 36,000 BTU total system capacity
• 3 independently controlled zones
• (1) 6K + (2) 9K BTU wall-mounted air handlers
• 23 SEER2 high-efficiency rating
• DC inverter variable-speed compressor
• DIY® QuickConnect® pre-charged line sets
• 16-ft line-set reach included
• DIYPRO® cable (no conduit required)
• Gold Fin® anti-corrosion coating
• Follow Me® remote-based temperature control
• MRCOOL® Smart HVAC Controller® App
• Alexa® & Google Home® compatibility
• ENERGY STAR® & AHRI certified



ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

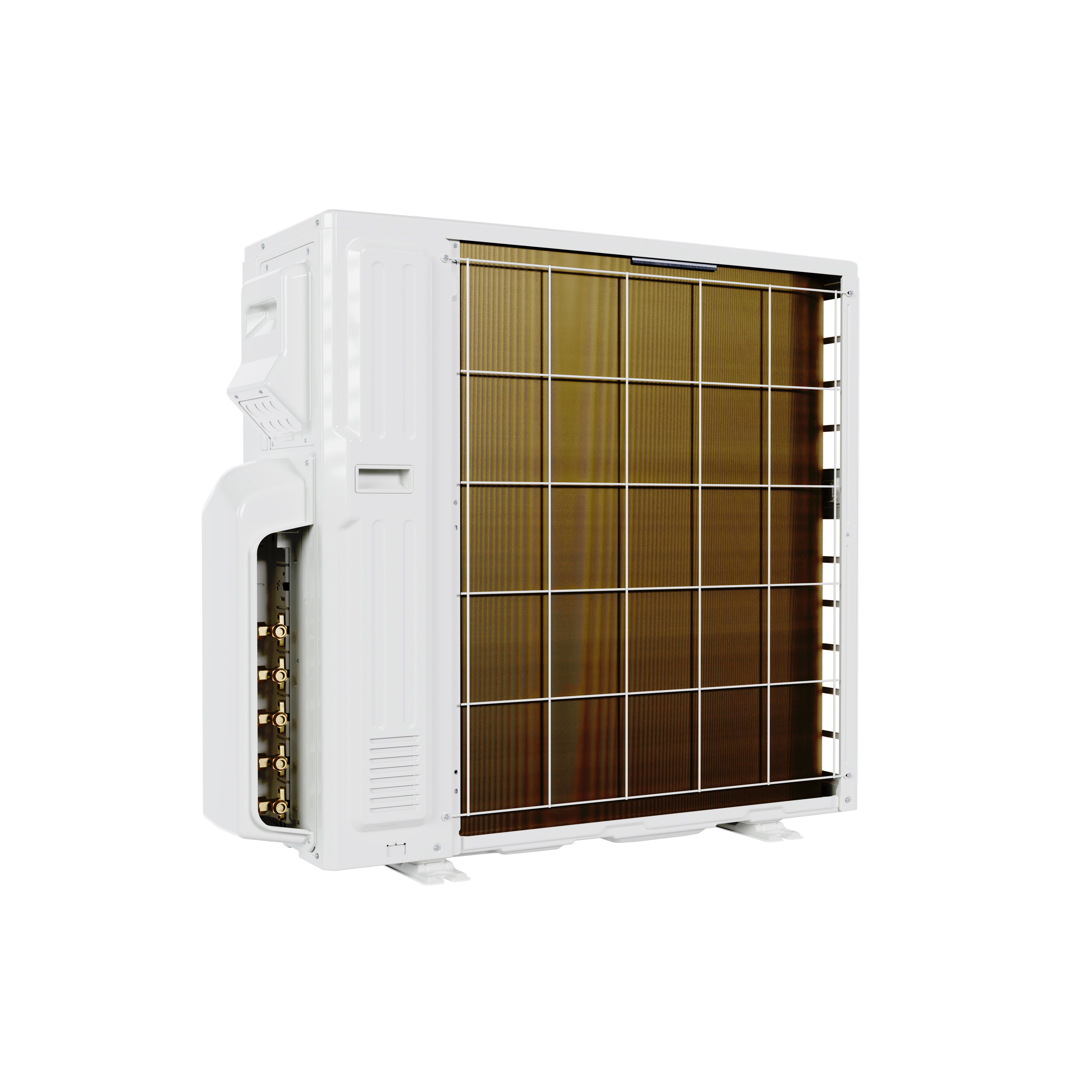

Outdoor Condenser — DIY-MULTI5-36HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 30.5 Amps
• Maximum Breaker Size: 35 Amps
• Dedicated Circuit Required: Yes



DIMENSIONS & WEIGHT

Outdoor Condenser

• Width: 37.24 in
• Height: 31.89 in
• Depth: 16.14 in
• Net Weight: ~169 lbs

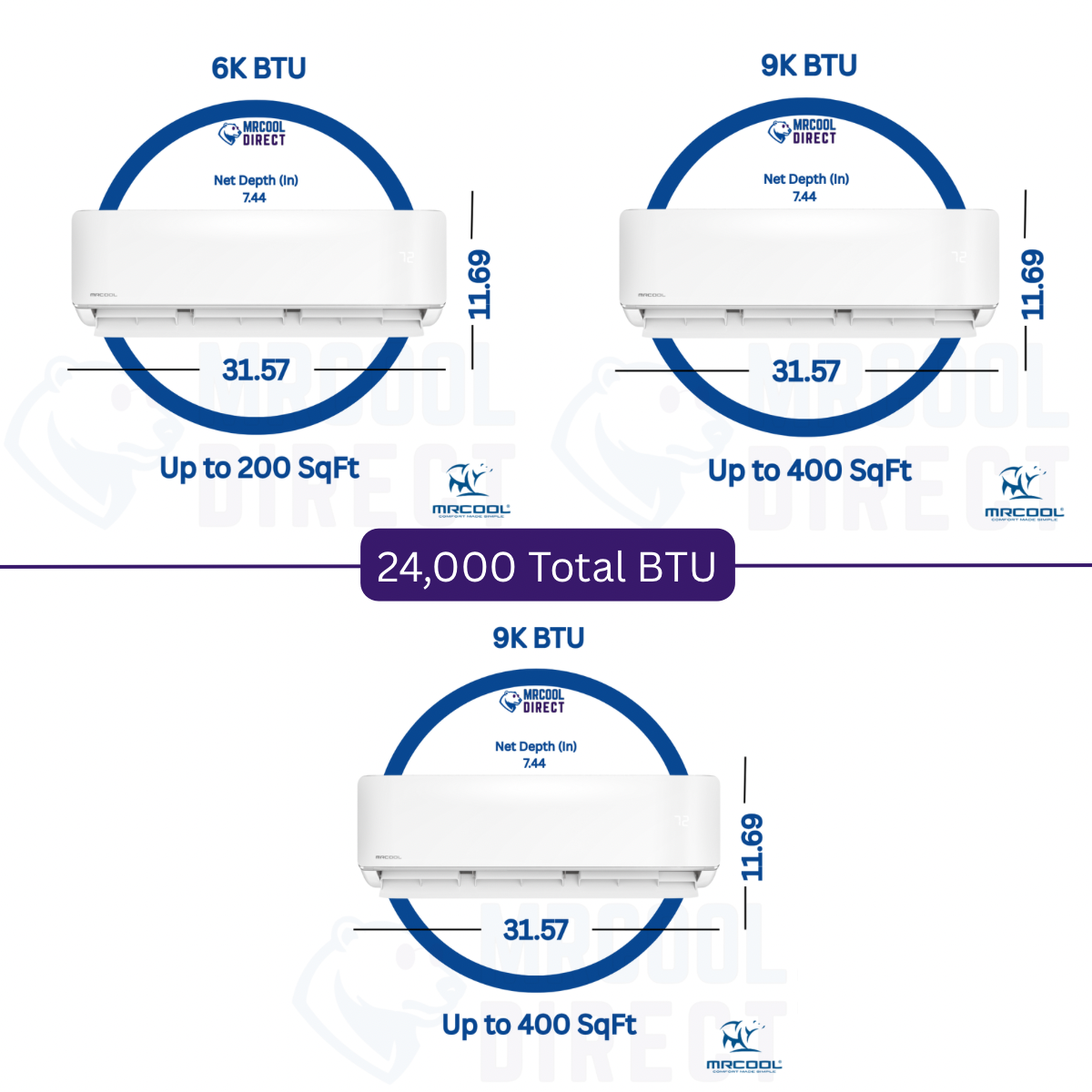

6K Indoor Air Handler

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Net Weight: ~24.5 lbs

9K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Net Weight: ~24.5 lbs

WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Limited Lifetime Replacement Warranty
  (with MRCOOL® Care Program registration)



WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 36,000 BTU Multi-Zone Outdoor Condenser
• ✔ (1) 6,000 BTU Wall-Mounted Indoor Air Handler
• ✔ (2) 9,000 BTU Wall-Mounted Indoor Air Handlers
• ✔ (3) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each indoor unit
• ✔ Mounting hardware & installation manuals

Smart phone not included.





FREQUENTLY ASKED QUESTIONS (FAQ)

Can each room be controlled independently?

Yes. Each indoor unit has its own thermostat and control.



Is professional HVAC installation required?

No. This system is designed for true DIY installation.



Does it support Wi-Fi and voice control?

Yes. Works with the MRCOOL® Smart HVAC Controller® App, Alexa®, and Google Home®.



Can I upgrade line-set length later?

Yes. Longer DIY® QuickConnect® line sets are available separately.
