MRCOOL® 36k 5th Gen DIY® Multi-Zone Bundle with Dual 12K Air Handlers & 25ft Line Sets (230V) R-454B — DIYM236HPW04D06

Product Description

Model: DIYM236HPW04D06

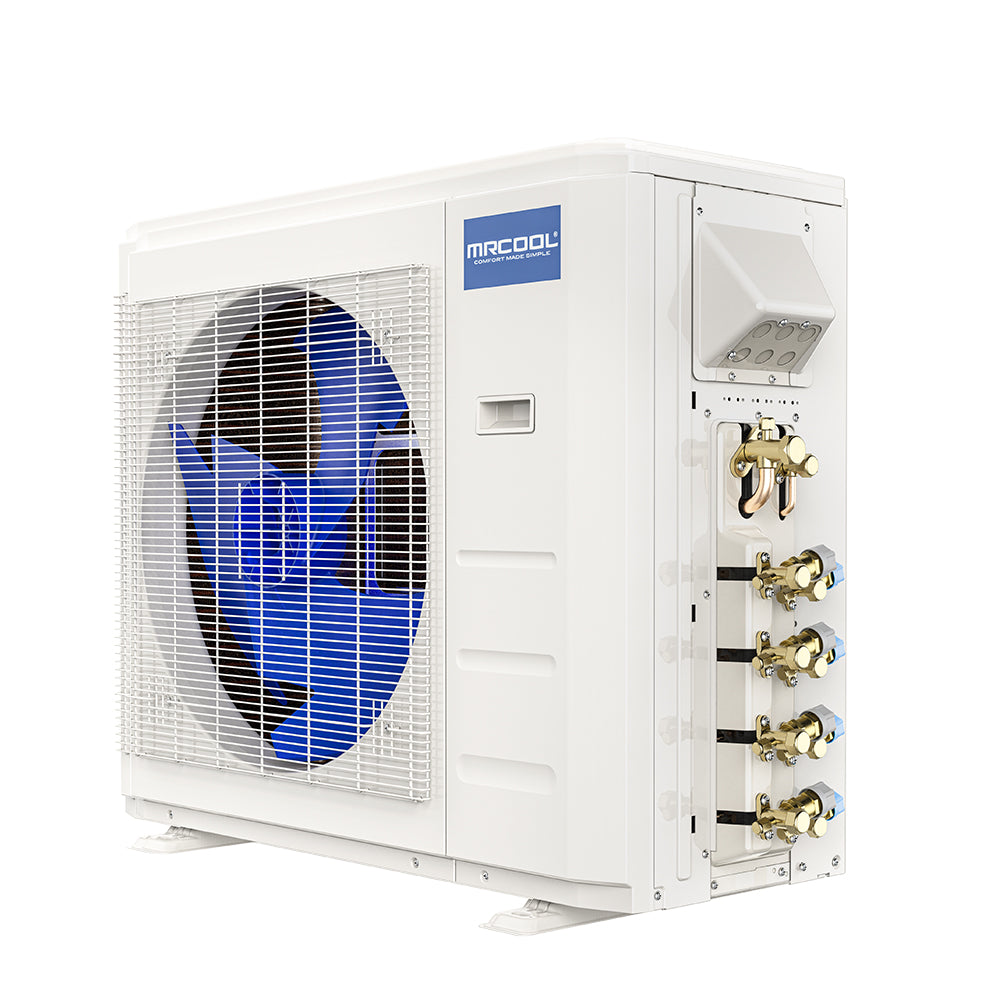

MRCOOL DIYM236HPW04D06 – 36k 5th Gen DIY Multi-Zone Bundle with Dual 12K & 25ft Line Sets

The MRCOOL DIYM236HPW04D06 bundle delivers balanced two-zone comfort with enough line length to match real-world house layouts. It combines the 36,000 BTU 5th Gen DIY multi-zone condenser (DIY-MULTI5-36HP230D-O) with two 12,000 BTU wall-mount air handlers (DIY-12-HP-WMAH-230D25-O) and two 25 ft pre-charged R-454B Quick-Connect® line sets (DIY25-1438-O).

Each 12K indoor unit can condition up to about 550 sq. ft., making this bundle ideal for two bedrooms, two offices, or a bedroom + living area. The 25 ft line sets give you the flexibility to put the outdoor unit off to the side or around the corner without killing the install.

Because it’s part of the MRCOOL DIY family, everything is built around true DIY installation: the line sets are factory pre-charged with R-454B, fully sealed, and ready to connect—no vacuum pump, no gauges, and no refrigerant handling.



What’s Included in the MRCOOL DIYM236HPW04D06 Bundle



✔ 1 × 36,000 BTU 5-Zone DIY Condenser —

DIY-MULTI5-36HP230D-O

• 36,000 BTU 5th Gen DIY® multi-zone condenser, 208/230V, 1-phase
• Supports up to 5 indoor zones from a single outdoor unit
• Efficiency up to 23 SEER2, 12 EER2, 9.9 HSPF2-4, 7.5 HSPF2-5
• Charged with R-454B (more efficient, lower GWP than R-410A)
• Works with MRCOOL 5th Gen DIY indoor units from 6K to 36K BTU
• Uses Quick-Connect® pre-charged line sets — no evacuation required
• SmartHVAC® app control + Amazon Alexa + Google Assistant
• DC inverter rotary compressor for quiet, modulating operation
• Corrosion-resistant outdoor coil with Gold Fin® coating
• Designed to cover up to roughly 1,500 sq. ft. depending on layout & climate

Electrical (Condenser):

• Voltage: 208/230V, 1-Phase, 60 Hz
• Minimum Circuit Ampacity (MCA): 30.5A
• Maximum Fuse / Breaker: 35A



✔ 2 × 12,000 BTU DIY Wall-Mount Air Handlers —

DIY-12-HP-WMAH-230D25-O

 (x2)

• 12,000 BTU 5th Gen DIY ductless heat pump wall mount, 208/230V
• Designed for spaces up to ~550 sq. ft. each
• Ideal for bedrooms, offices, bonus rooms, small living rooms, or rental suites
• True DIY install when paired with MRCOOL pre-charged Quick-Connect® line sets
• Includes DIYPRO® cable to eliminate separate conduit and protect wiring

Comfort & control:

• Wireless remote with LCD
• SmartHVAC® app (iOS & Android)
• Works with Amazon Alexa and Google Assistant
• Follow Me® function for remote-based temperature sensing
• Dry Mode for better humidity control
• Quiet Mode and multiple fan speeds for bedroom-friendly sound



Key specs (per 12K air handler):

• Mount type: Wall
• Voltage: 208/230V, 1-phase, 60 Hz
• Max coverage area: ~550 sq. ft.
• Oscillation: Yes
• Filter type: Reusable
• Fan only option: Yes
• Quiet Mode & Auto Cool: Yes
• WiFi & app ready: Yes
• Certifications: UL listed, ETL listed, AHRI certified
• Warranty when registered:

• 5-year parts
• 7-year compressor
• Extended Limited Lifetime replacement via MRCOOL® Care (per MRCOOL terms)



✔ 2 × 25 ft R-454B Quick-Connect Line Sets (1/4” × 3/8”) —

DIY25-1438-O

 (x2)

• Two (2) × 25 ft pre-charged R-454B Quick-Connect® line sets
• Size: 1/4” liquid line × 3/8” suction line
• Designed for 6K, 9K & 12K MRCOOL DIY indoor units
• Factory vacuum-sealed and pre-charged with 2.12 oz of R-454B
• Quick-Connect** threaded fittings** that attach directly to the condenser and air handlers
• White insulated exterior with Bronze/Copper Metallic core
• 25 ft gives you flexible outdoor unit placement with fewer compromises on line routing



Why the DIYM236HPW04D06 Setup Is So Strong

This bundle is perfect when:

• You want two equal-sized zones (dual 12K) instead of a small + big combo
• You need more than 16 ft but don’t want to mess with couplers
• You’re cooling/heating two main rooms that both deserve real capacity

Great fits:

• Two upstairs bedrooms
• Bedroom + home office
• Duplex / ADU / in-law suite with two primary rooms
• Small homes or apartments with two key zones needing independent control



Key Benefits at a Glance

• True DIY: Pre-charged R-454B line sets, no vacuum or gauges
• High efficiency 5th Gen inverter performance (up to 23 SEER2)
• Balanced dual 12K zoning for smoother comfort
• Smart control built-in: app + Alexa + Google
• 25 ft line sets for flexible condenser location
• Expandable: 36k condenser supports up to 5 indoor units total
• Strong MRCOOL warranty with optional extended lifetime replacement



FAQ – MRCOOL DIYM236HPW04D06 36k 5th Gen DIY Multi-Zone Bundle (Dual 12K, 25ft)



1. Can I install this system myself?

Yes. The DIYM236HPW04D06 bundle is designed for DIY installation with pre-charged R-454B Quick-Connect® line sets, so you don’t need a vacuum pump or refrigerant tools.



2. How many zones can the 36k condenser support?

The DIY-MULTI5-36HP230D-O can support up to 5 indoor units. This bundle uses two 12K units, so you can still add up to three more zones later.





3. What size rooms are the 12K air handlers best for?

Each 12K air handler is typically suited for spaces up to about 550 sq. ft., depending on insulation, ceiling height, and climate.





4. What breaker size does this system need?

The condenser is rated for:

• Minimum Circuit Ampacity (MCA): 30.5A
• Maximum Fuse / Breaker: 35A

Always follow MRCOOL’s installation manual and local electrical codes.



5. How long are the included line sets?

This bundle includes two 25 ft line sets (DIY25-1438-O), each 1/4” × 3/8”, pre-charged with R-454B.



6. Can I extend beyond 25 ft?

Yes. You can extend with MRCOOL DIY coupler kits and additional pre-charged line sets, as long as you stay within the condenser’s maximum total line length and design restrictions.



7. What refrigerant does this system use?

All components in this bundle use R-454B, a next-generation refrigerant with higher efficiency and lower global warming potential than R-410A.





8. Is this system quiet enough for bedrooms?

Yes. The 12K indoor units have Quiet Mode and low sound levels, making them a solid option for bedrooms, nurseries, and home offices.





9. Does this system dehumidify?

Yes. Using DRY MODE, the system focuses on removing humidity while still providing cooling, which is ideal for humid climates.

 10. Can I control each 12K zone separately?

Absolutely. Each 12K air handler has its own remote and WiFi control, so you can set different temperatures and schedules for each room. You just can’t have one on heat and the other on A/C



11. Is smart home integration included?

Yes. The system works with the SmartHVAC® app, Amazon Alexa, and Google Assistant for voice and app-based control.



12. Is my warranty valid if I buy from MRCOOL Direct?

Yes. MRCOOL Direct is an authorized MRCOOL dealer, so your warranty remains valid when installed and registered correctly.





13. What warranties are included?

Typical MRCOOL DIY coverage includes:

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Extended Limited Lifetime Replacement Warranty when enrolled in MRCOOL® Care (per MRCOOL terms).





14. Is this bundle good for two bedrooms or a bedroom + office?

Yes. Dual 12K with 25 ft line sets is a killer layout for two similar-size rooms that both need serious comfort.



15. Do I need an electrician for the condenser power?

If you’re not comfortable with 208/230V electrical work, you should use a licensed electrician to install the breaker, disconnect, and wiring.
