MRCOOL® 36k 5th Gen DIY® Multi-Zone 12K + 24K Bundle (16ft + 25ft Line Sets, 230V) R-454B — DIYM236HPW06D01

Product Description

Model: DIYM236HPW06D01



The MRCOOL DIYM236HPW06D01 is a powerful 36k BTU 5th Generation DIY multi-zone system designed for homeowners who need a 12K zone and a 24K zone with two different line set lengths. This configuration includes:

• 12K indoor unit with a short 16 ft pre-charged line set
• 24K indoor unit with a longer 25 ft pre-charged line set

This bundle is engineered for homes where:

• One room is close to the condenser
• The second room is further away
• You want to maintain ideal refrigerant flow rates
• You want the exact line set lengths needed—without excess coiling or restrictions

You get true DIY installation, R-454B refrigerant, SmartHVAC app control, Gold Fin® outdoor protection, and MRCOOL’s famous Quick-Connect system that requires no vacuum pump and no gauges.



What’s Included in This Bundle

✔ 36k 5-Zone Outdoor Condenser (DIY-MULTI5-36HP230D-O)

• 34,000 BTU cooling / 36,000 BTU heating
• Supports up to 5 total zones
• 23 SEER2, 12 EER2, 9.9 HSPF2-4
• Pre-charged R-454B refrigerant
• DC inverter efficiency
• WiFi, Alexa, Google Assistant
• Up to 221 ft total line set capability
• Gold Fin® anti-corrosion treatment



Electrical

• Voltage: 208/230V
• MCA: 30.5A
• Max Fuse/Breaker: 35A

✔ 12,000 BTU 5th Gen Wall Mount AH (DIY-12-HP-WMAH-230D25-O)

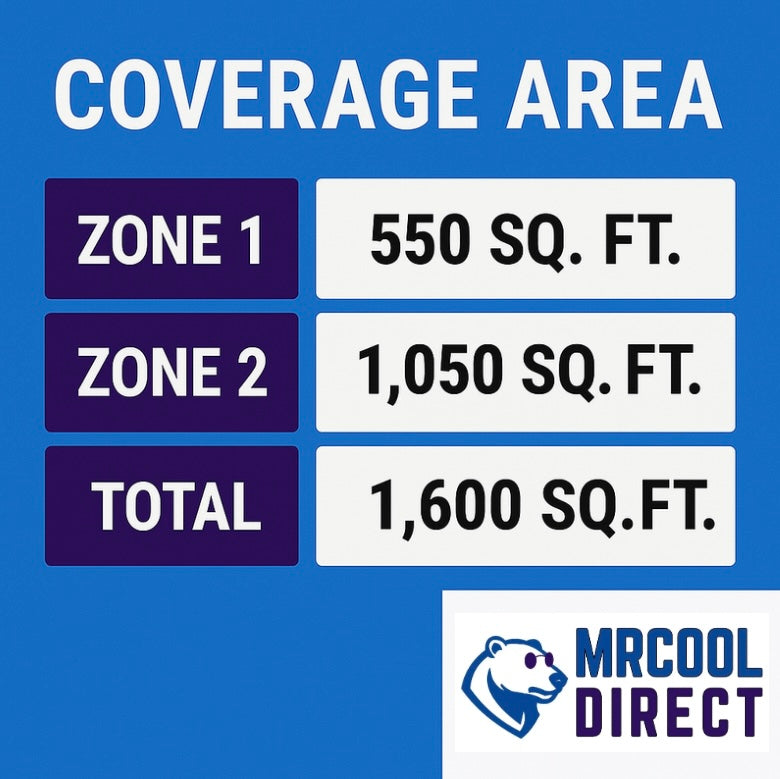

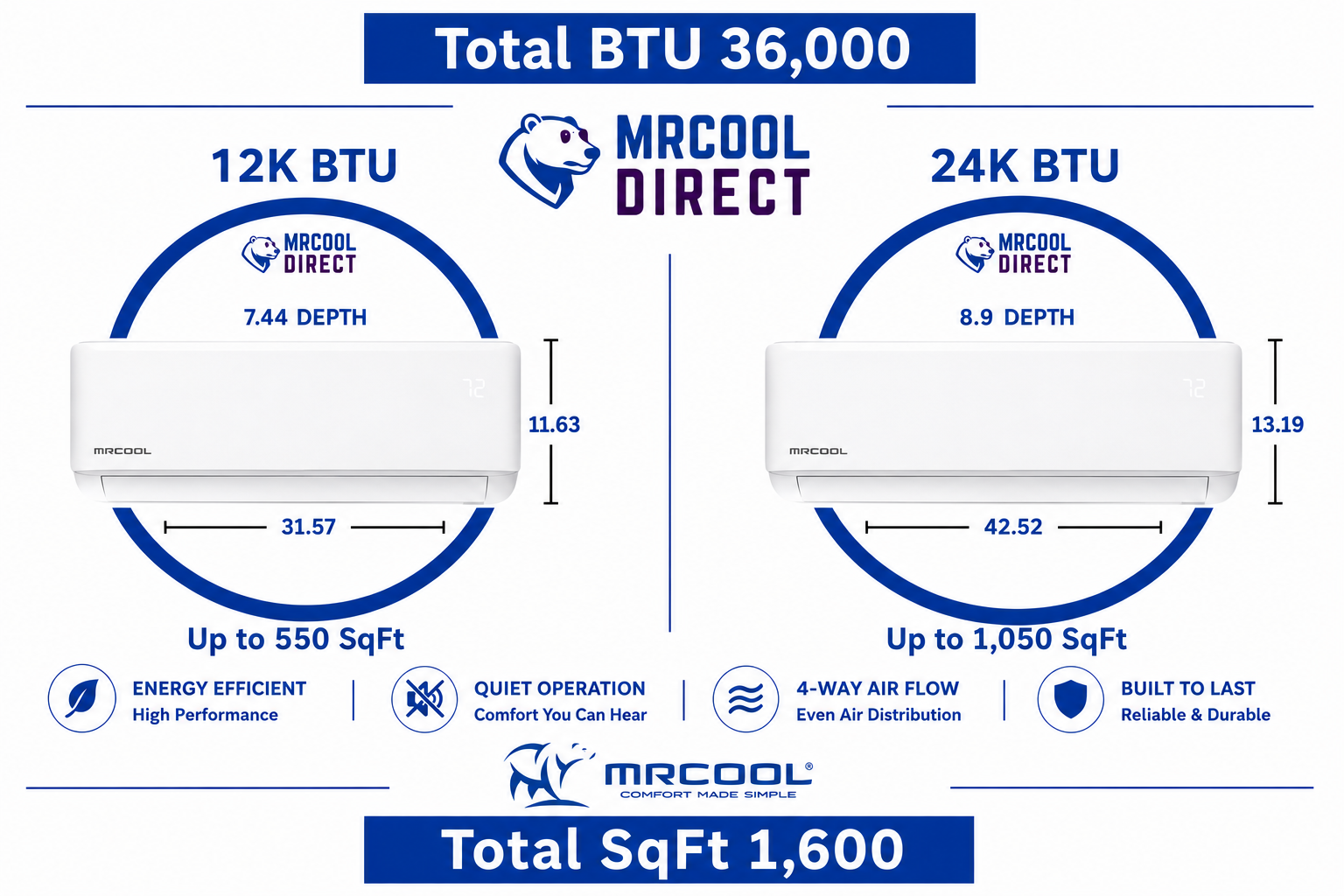

• Covers up to 550 sq ft
• Whisper-quiet operation
• Follow Me® temperature tracking
• SmartHVAC wireless + app control
• Perfect for bedrooms, offices, small living rooms
• Uses 16 ft 1/4 × 3/8 line set (DIY16-1438-O)

✔ 24,000 BTU 5th Gen Wall Mount AH (DIY-24-HP-WMAH-230D25-O)

• Comfort for up to 1,050 sq ft
• Heavy-duty airflow for large spaces
• Multi-speed fan + quiet mode
• SmartHVAC app + remote control
• Uses 25 ft 3/8 × 5/8 line set (DIY25-3858-O)

✔ 16 ft R-454B Line Set (DIY16-1438-O)

• 1/4 × 3/8 Quick-Connect
• Pre-charged with R-454B
• Ideal for the 12K indoor unit

✔ 25 ft R-454B Line Set (DIY25-3858-O)

• 3/8 × 5/8 Quick-Connect
• Pre-charged with R-454B
• Perfect for the 24K indoor unit



FAQ – MRCOOL DIYM236HPW06D01

1. Why does this bundle use both a 16 ft and a 25 ft line set?

Because the indoor units are placed at different distances from the condenser. This keeps each head optimized for performance.





2. Is this a true DIY system?

Yes — all line sets are factory pre-charged with R-454B and require no vacuum pump.



3. How many zones can the condenser support?

Up to 5 total zones if you expand later.



4. What breaker size does it need?

A 35A breaker with 30.5A MCA.



5. Do both indoor units have their own thermostat?

Yes — each room has independent temperature and fan control.





6. Is it compatible with Alexa/Google?

Yes — full smart home integration.
