MRCOOL® 36k 5th Gen DIY® Multi-Zone Mini Split (12K + 24K) with Dual 25ft Line Sets, 230V - R-454B — DIYM236HPW06D07
MRCOOL® 36k 5th Gen DIY® Multi-Zone Mini Split (12K + 24K) with Dual 25ft Line Sets, 230V - R-454B — DIYM236HPW06D07
Available in stock (71)
Product Description
Model: DIYM236HPW06D07
DIYM236HPW06D07 — The Ultimate Dual-Zone DIY System for Real Homes That Need Real Comfort
The MRCOOL DIYM236HPW06D07 is one of the strongest-performing dual-zone 5th Generation DIY systems available today. Built on MRCOOL’s newest R-454B Quick-Connect® platform, this bundle delivers exceptional comfort, unmatched installation simplicity, and true long-term energy efficiency — all without paying an HVAC contractor.

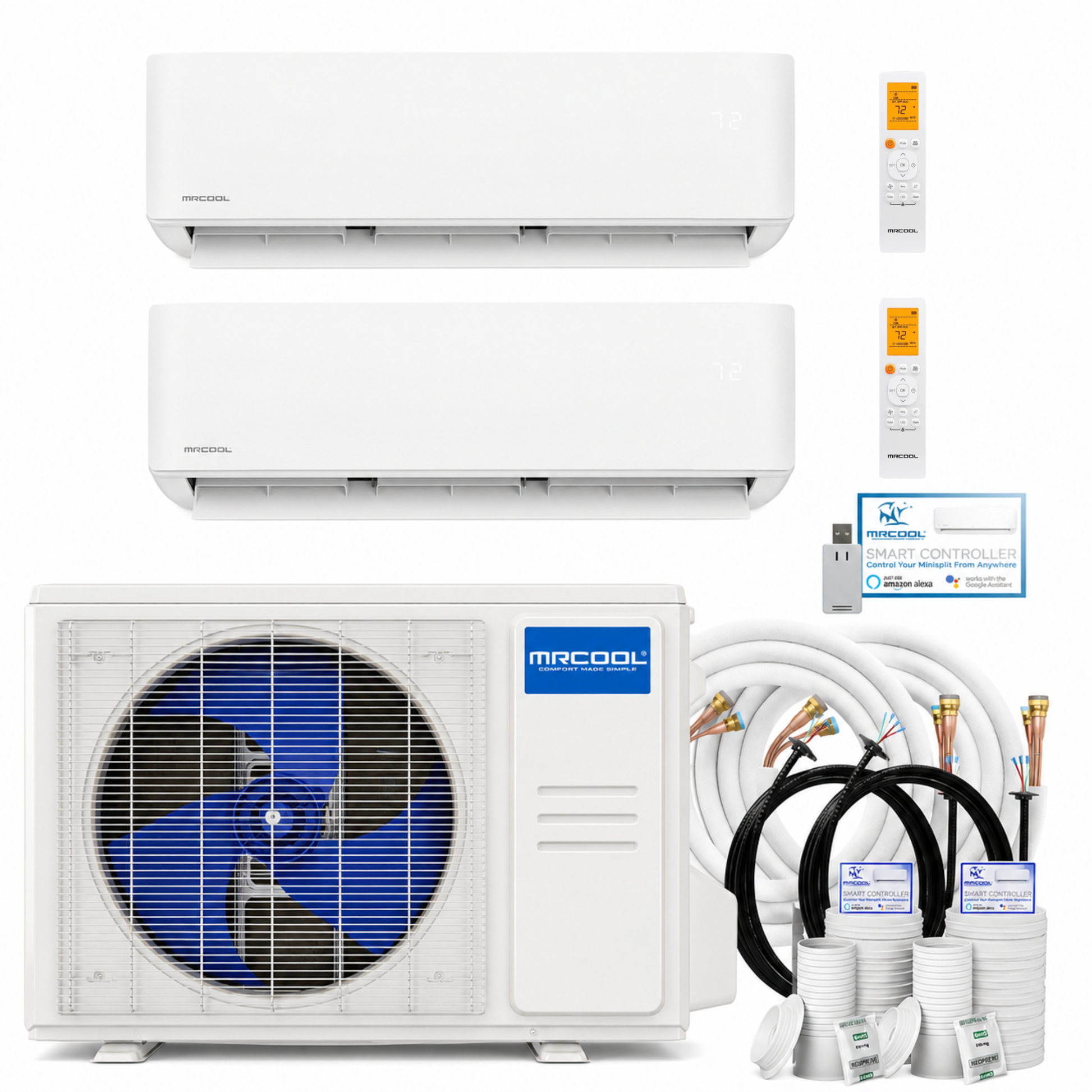

This specific configuration includes:
- A 36,000 BTU 5-Zone outdoor condenser
- A 12,000 BTU wall mount indoor air handler
- A 24,000 BTU wall mount indoor air handler
- Two 25 ft pre-charged line sets, designed for perfect matching and maximum efficiency
It’s the ideal setup for homeowners who need powerful comfort in two medium-to-large spaces while keeping installation clean, simple, and exactly to spec.
💥 Why This Bundle Beats Every Competing Setup
Most multi-zone systems force you to accept line set lengths you don’t truly need.
This bundle solves that by giving:
✔ Two full-length 25 ft line sets
Perfect when both rooms are located farther from the condenser, or when the line set route requires extra travel.
✔ True DIY installation
No vacuum pump.
No gauges.
No EPA license.
Everything comes factory-sealed, pressurized, and ready to connect.
✔ Maximum flexibility
The 12K and 24K indoor units:
- Operate independently
- Have separate thermostats
- Maintain different temperatures
- Run separate schedules
- Deliver full output even in extreme weather
The 36k multi-zone outdoor condenser still has 3 open ports, allowing future expansion at any time.
❄️ Performance That’s Built to Dominate Your Climate
The DIY-MULTI5-36HP230D-O condenser is one of the highest-performing multi-zone DIY units on the market:
• 23 SEER2 Efficiency
Among the highest in the DIY category.
• R-454B Refrigerant
Cooler, safer, and 65% lower GWP compared to R-410A systems sold by competitors.
• Extreme Low-Temperature Heating
Advanced inverter technology maintains reliable heating performance even when traditional heat pumps shut down.
SmartHVAC App Control
Control both rooms with:
– Smartphone
– Alexa
– Google Assistant
– Automated schedules
– Energy monitoring
No other DIY system offers this level of smart home integration out of the box.
Detailed Component Breakdown
✔ 36K 5th Gen Multi-Zone Condenser (DIY-MULTI5-36HP230D-O)
- Supports 5 zones total
- Cooling: 34,000 BTU
- Heating: 36,000 BTU
- Ultra-quiet DC inverter
- AHRI certified
- 5-year parts + 7-year compressor warranty
- Eligible for MRCOOL Limited Lifetime Warranty (with registration)

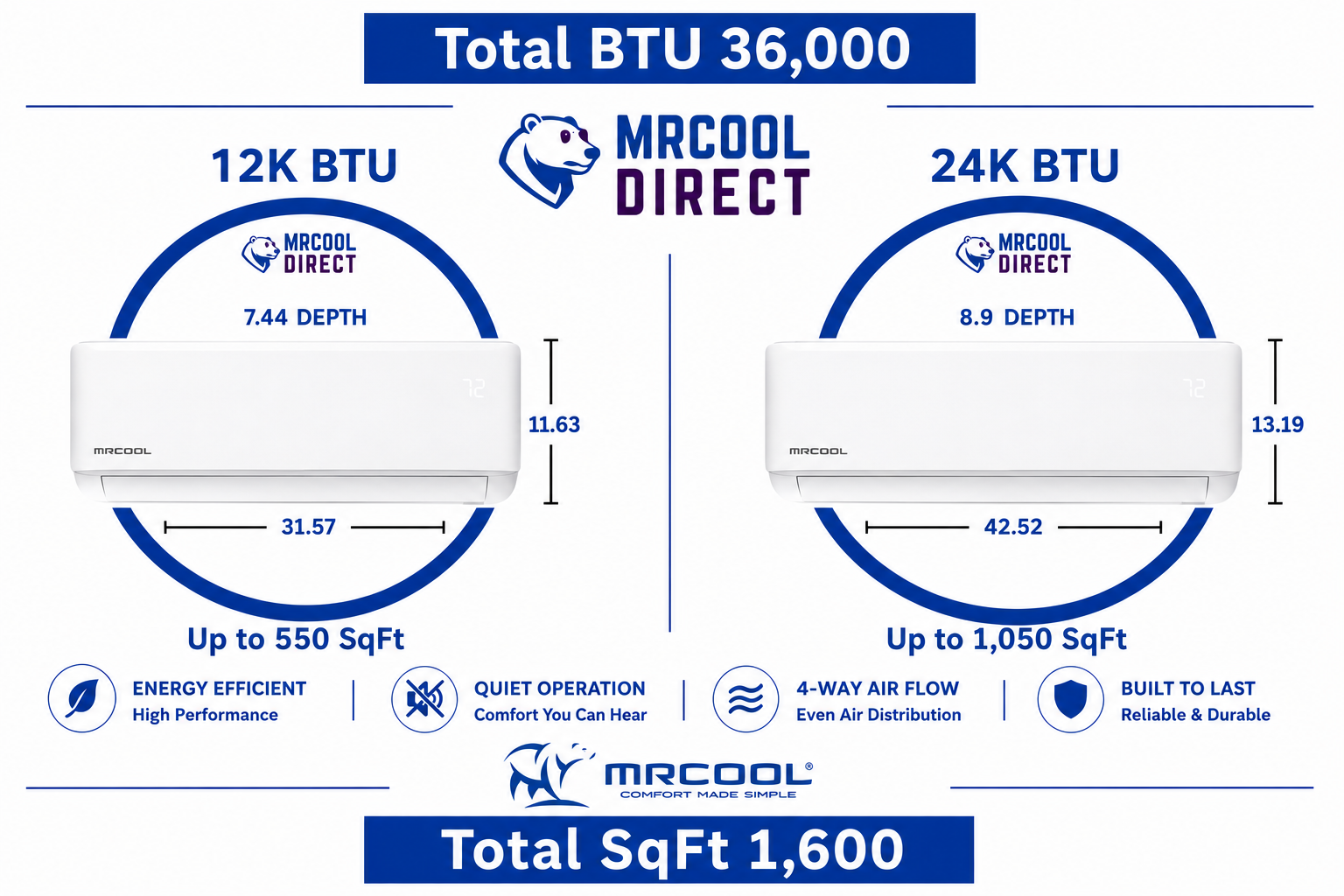

✔ 12K Wall Mount Air Handler (DIY-12-HP-WMAH-230D25-O)
- Ideal for up to 550 sq ft
- Whisper-quiet airflow
- Dry Mode for humidity control
- Follow Me® built-in temperature tracking
- Energy-efficient variable-speed fan
✔ 24K Wall Mount Air Handler (DIY-24-HP-WMAH-230D25-O)
- Comfort for up to 1,050 sq ft
- Heavy-duty airflow and consistent room coverage
- Multi-speed operation
- SmartHVAC wireless control
- Excellent for living rooms, large master bedrooms, or open layouts
✔ 25 ft R-454B Quick-Connect Line Set (DIY25-1438-O)
For the 12K air handler
- 1/4 × 3/8
- Factory pre-charged
- No handling refrigerant
✔ 25 ft R-454B Quick-Connect Line Set (DIY25-3858-O)
For the 24K air handler
- 3/8 × 5/8
- Heavy-duty design for large-capacity systems
Frequently Asked Questions
Is the MRCOOL DIYM236HPW06D07 a true DIY system?
Yes—no vacuum pump, gauges, or EPA certification required.
Can this system heat in freezing temperatures?
Absolutely. The 5th Gen inverter delivers strong cold-climate heating.
Are both indoor units independently controlled?
Yes. Each room has its own remote + app control + scheduling.
Can I expand later?
Yes—3 additional zones can be added in the future.
What breaker size does it require?
A 35A breaker with 30.5A MCA.
