The MRCOOL Easy Pro 24K BTU mini split system delivers powerful heating and cooling for spaces up to 1,050 sq ft. With an 11.5 ft pre-charged line set, this DIY system installs fast with no HVAC tools required.
Product Description
Maximum Power Meets Easy DIY Installation
The MRCOOL Easy Pro® 24K BTU Mini Split System is built for larger homes and open spaces that demand powerful performance — without complicated installation.
With the included 11.5 ft pre-charged Quick Connect® line set, this system eliminates the most difficult parts of installing HVAC.
👉 No vacuum pumps
👉 No refrigerant handling
👉 No HVAC experience needed
Designed for Large Spaces Up to 1,050 Sq Ft
Perfect for:
- Living rooms
- Open floor plans
- Large basements
- Garages
- Bonus rooms
This 24,000 BTU system delivers strong, even comfort across larger areas.
High-Efficiency Performance That Saves Money
- 18.9 SEER2 cooling efficiency
- 8.7 HSPF2 heating efficiency
- Inverter compressor technology
- Reduced energy consumption
👉 More coverage + efficient operation = long-term savings
True DIY Installation System

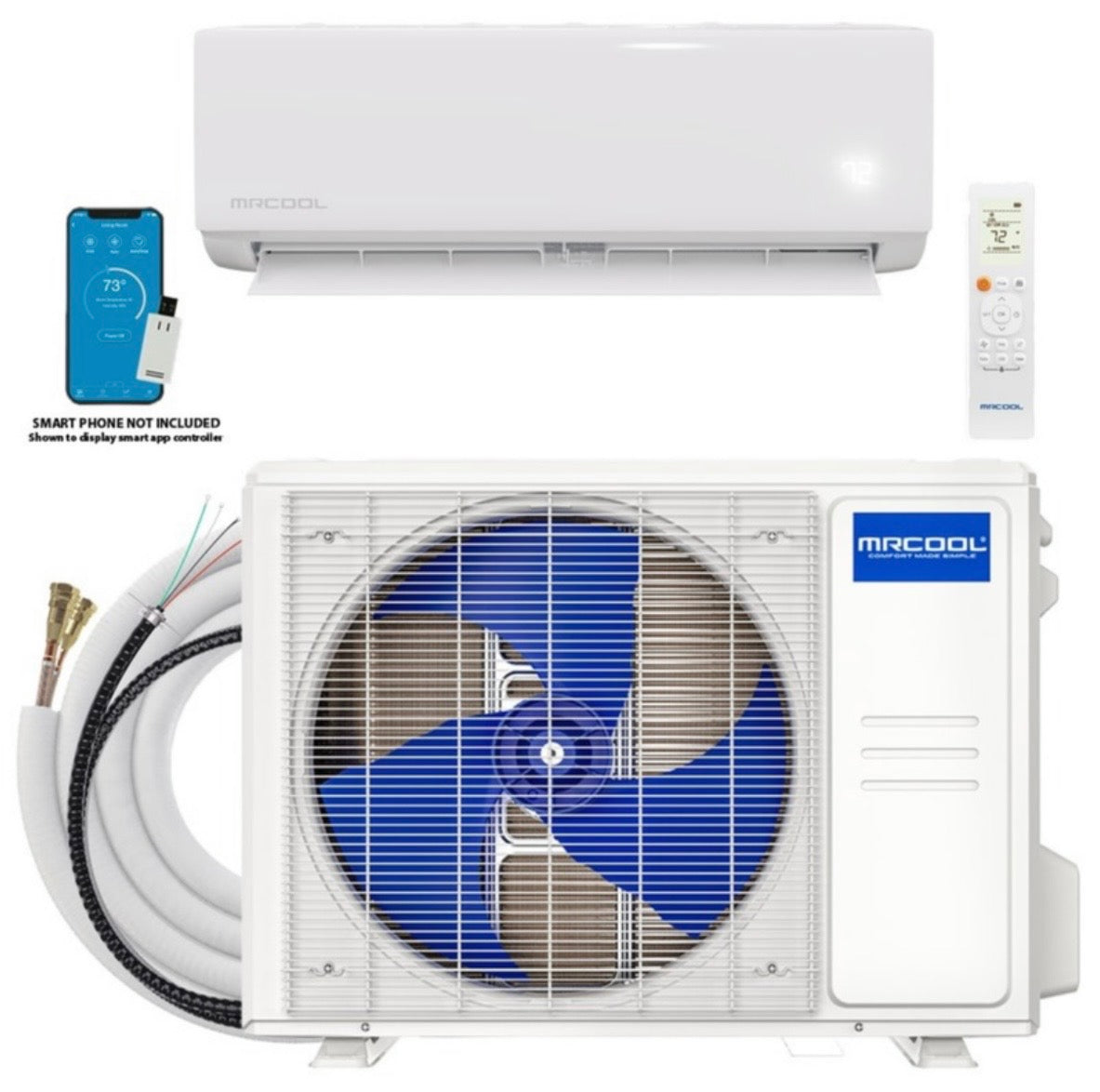

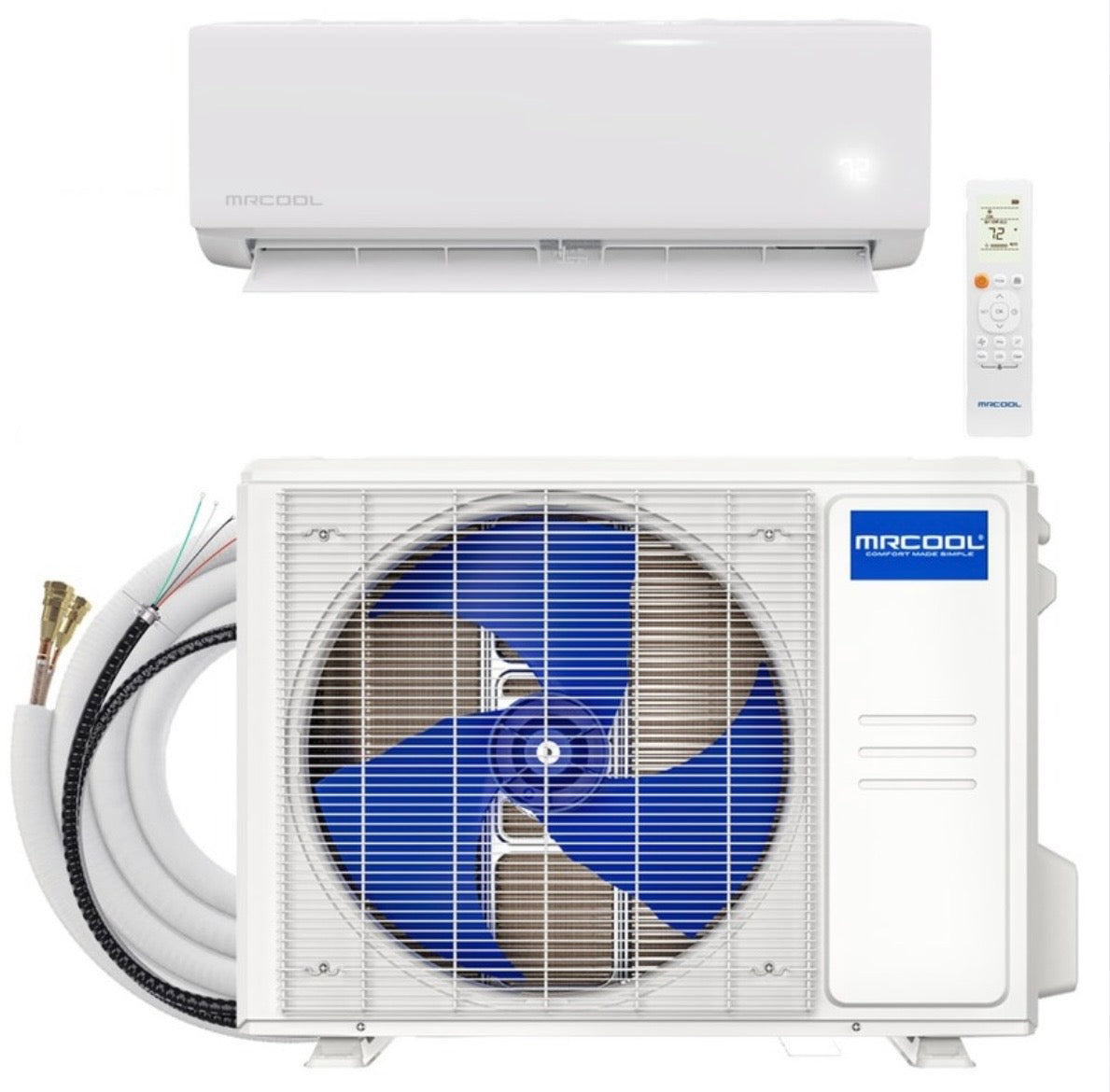

Everything needed is included:
- 11.5 ft pre-charged R-454B line set
- Quick Connect® system
- DIYPRO® cable (no conduit required)
- Plug-and-play install
👉 Install it in hours, not days.
Smart Comfort Anywhere
Control your system easily:
- MRCOOL SmartHVAC™ App
- Amazon Alexa compatibility
- Google Assistant compatibility
- Wireless remote included
Built for Long-Term Durability
- Gold Fin® corrosion protection
- Heavy-duty outdoor unit
- Quiet operation (21.5 dBA indoor low)
- DC motor technology
Strong Warranty Protection
- 5-Year Compressor Warranty
- 3-Year Parts Warranty
👉 Built for reliability and peace of mind
KEY FEATURES
- 24,000 BTU Heating & Cooling
- Covers up to 1,050 sq ft
- 230V Power
- 18.9 SEER2 Efficiency
- 11.5 ft Pre-Charged Line Set Included
- R-454B Refrigerant
- DIY Installation System
- Smart App + Voice Control
- Inverter Heat Pump Technology
- Large Space Cooling Solution
FULL TECHNICAL SPECIFICATIONS
Performance
- Cooling Capacity: 24,000 BTU
- Heating Capacity: 25,000 BTU
- SEER2: 18.9
- EER2: 9.7
- HSPF2-4: 8.7
Electrical
- Voltage: 208/230V
- Max Breaker: 20A
- Minimum Circuit Ampacity: 19A
Line Set
- Length: 11.5 ft
- Liquid Line: 3/8”
- Suction Line: 5/8”
- Max Length: 75 ft

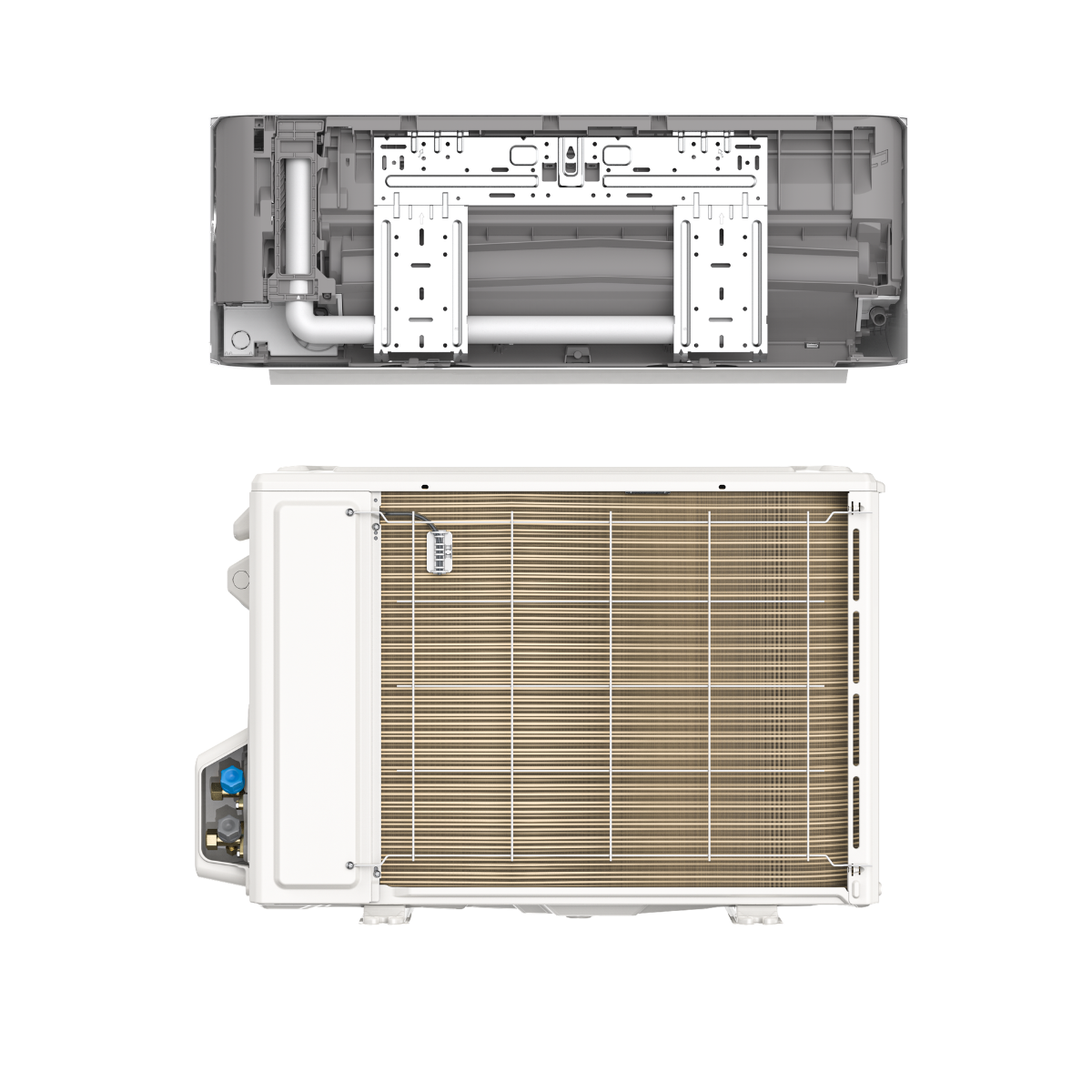

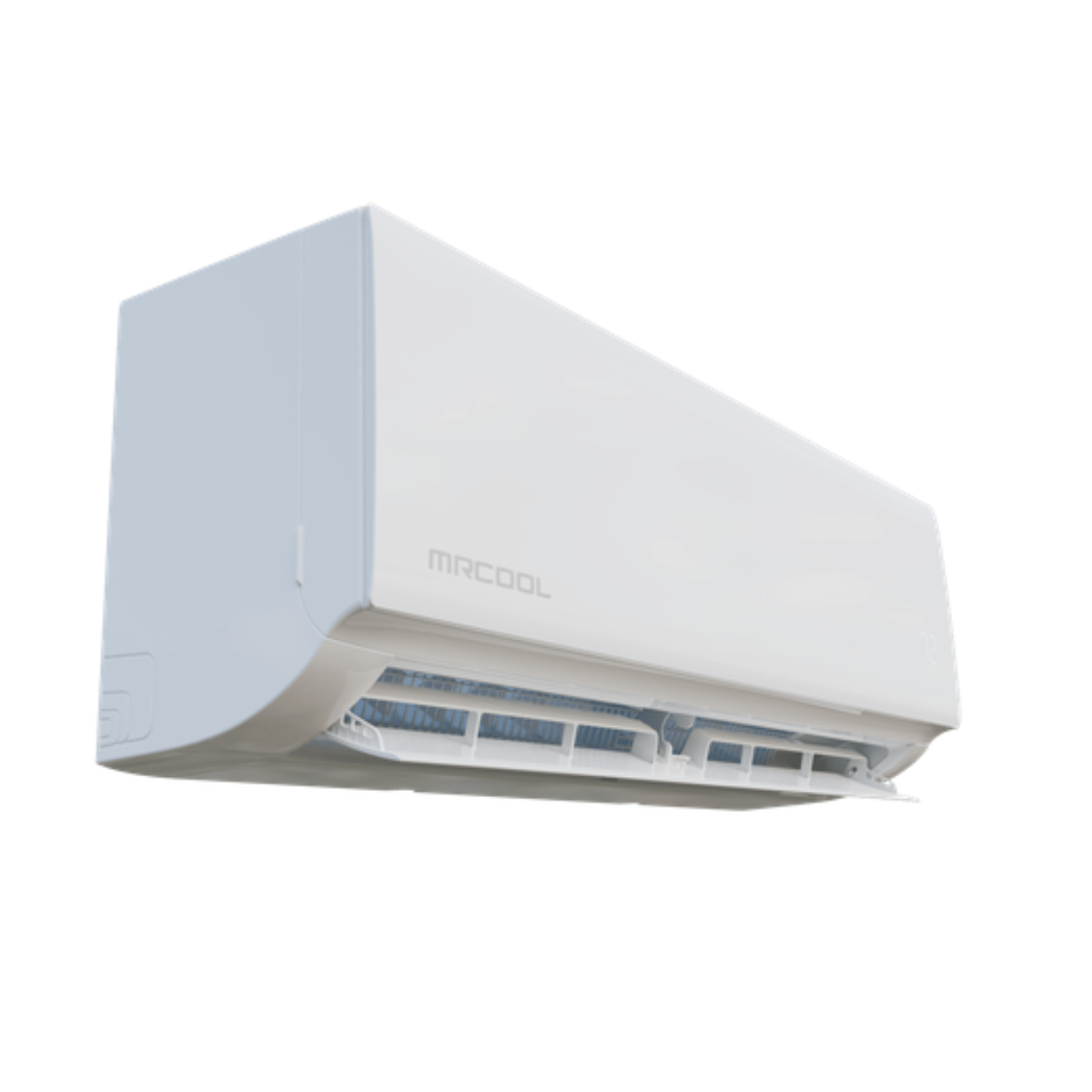

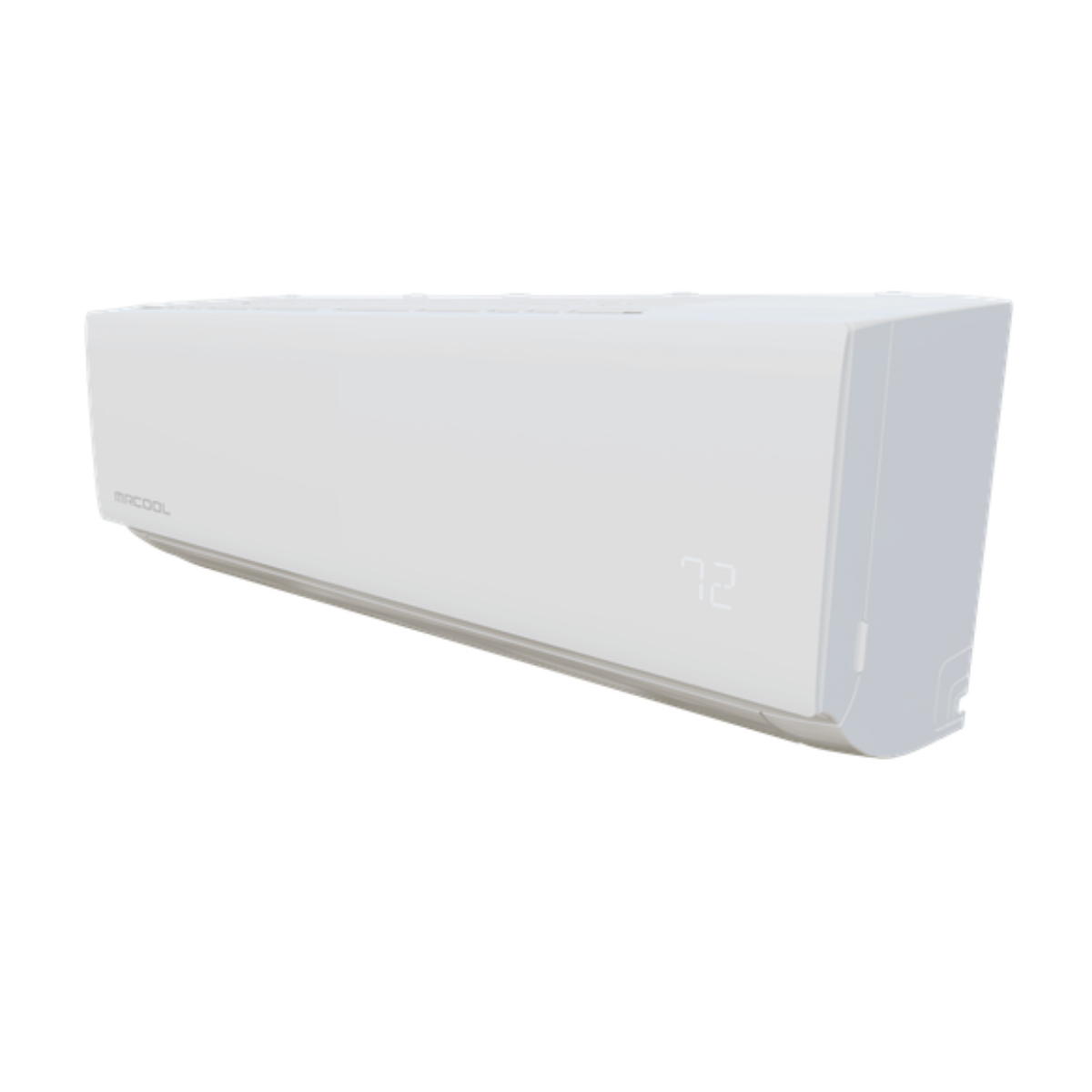

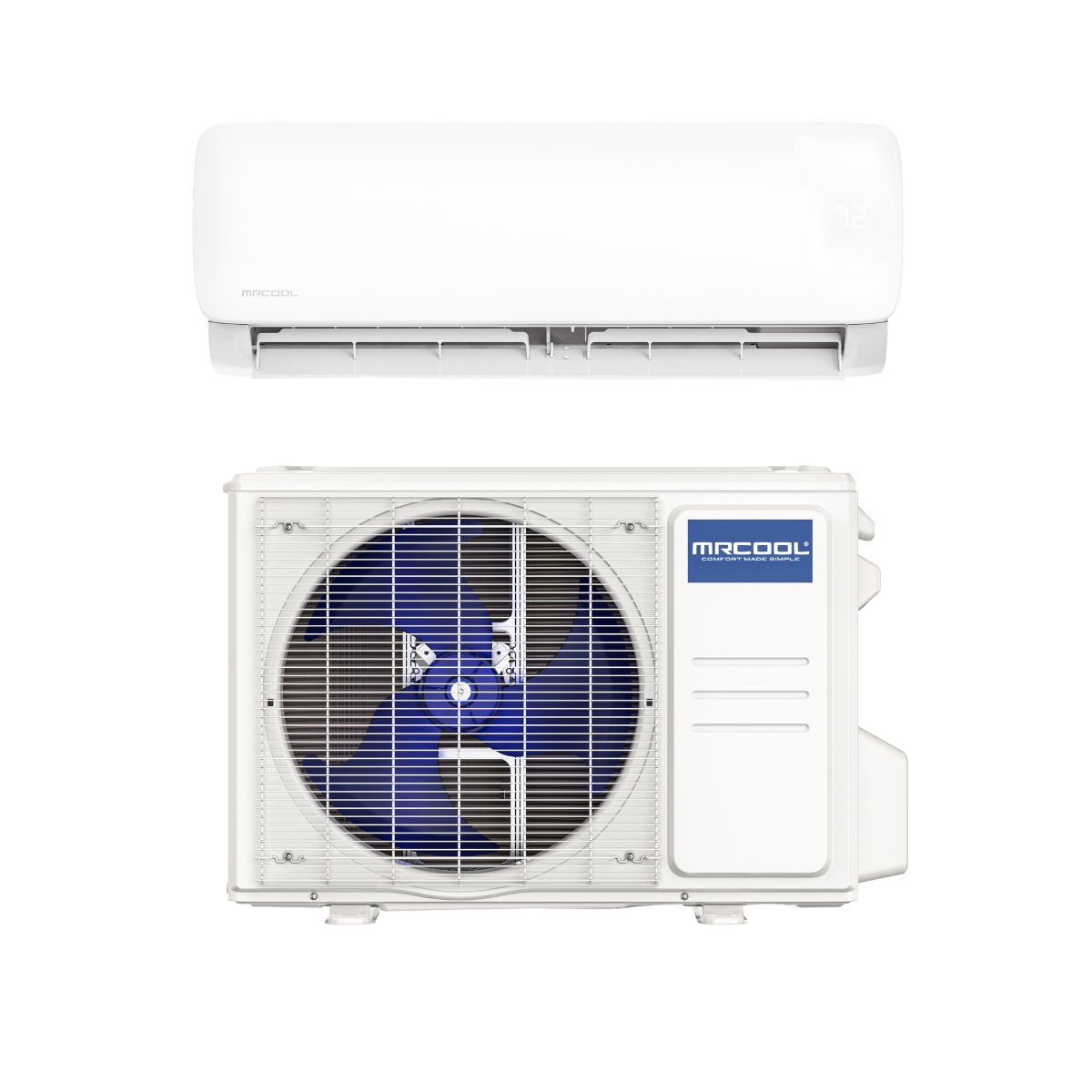

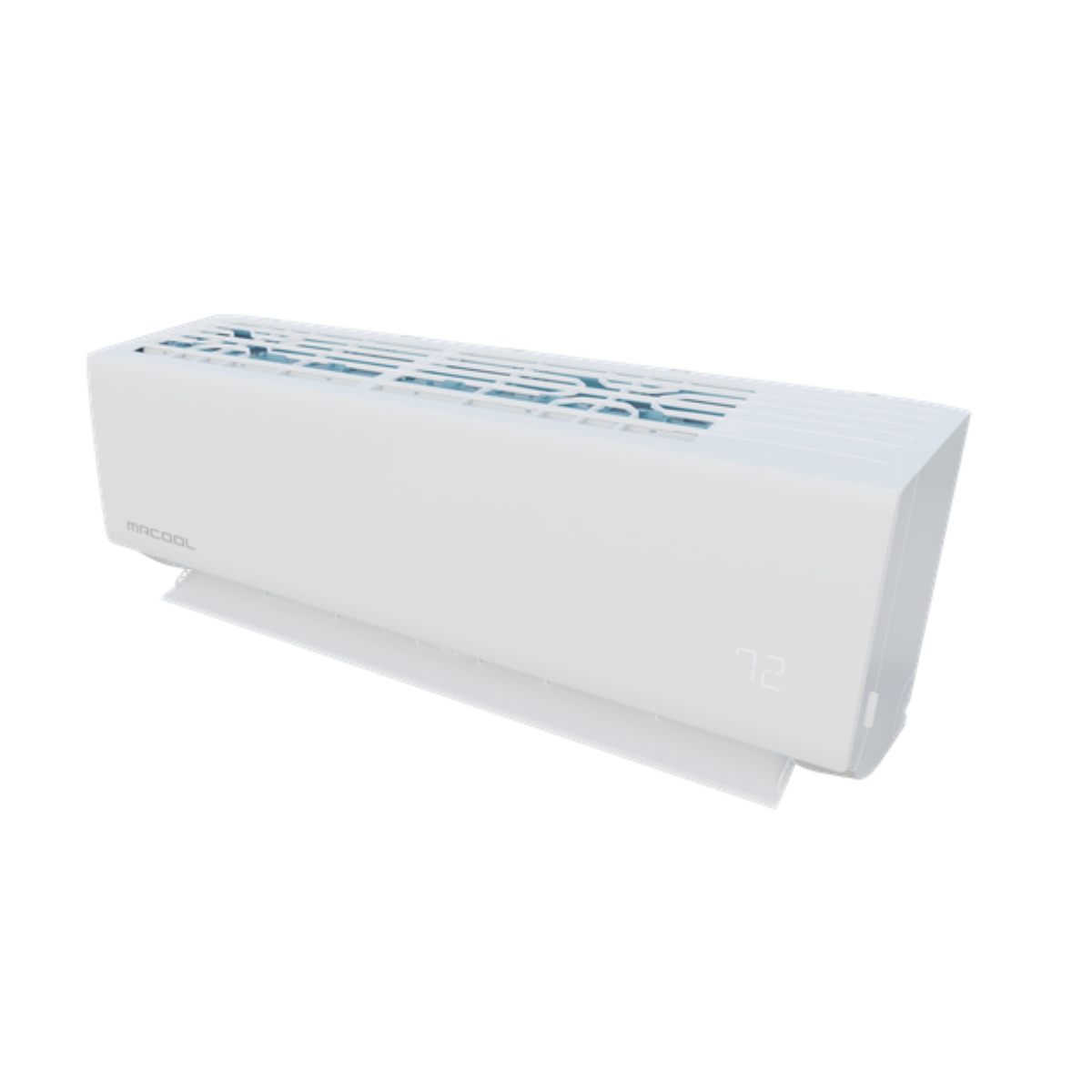

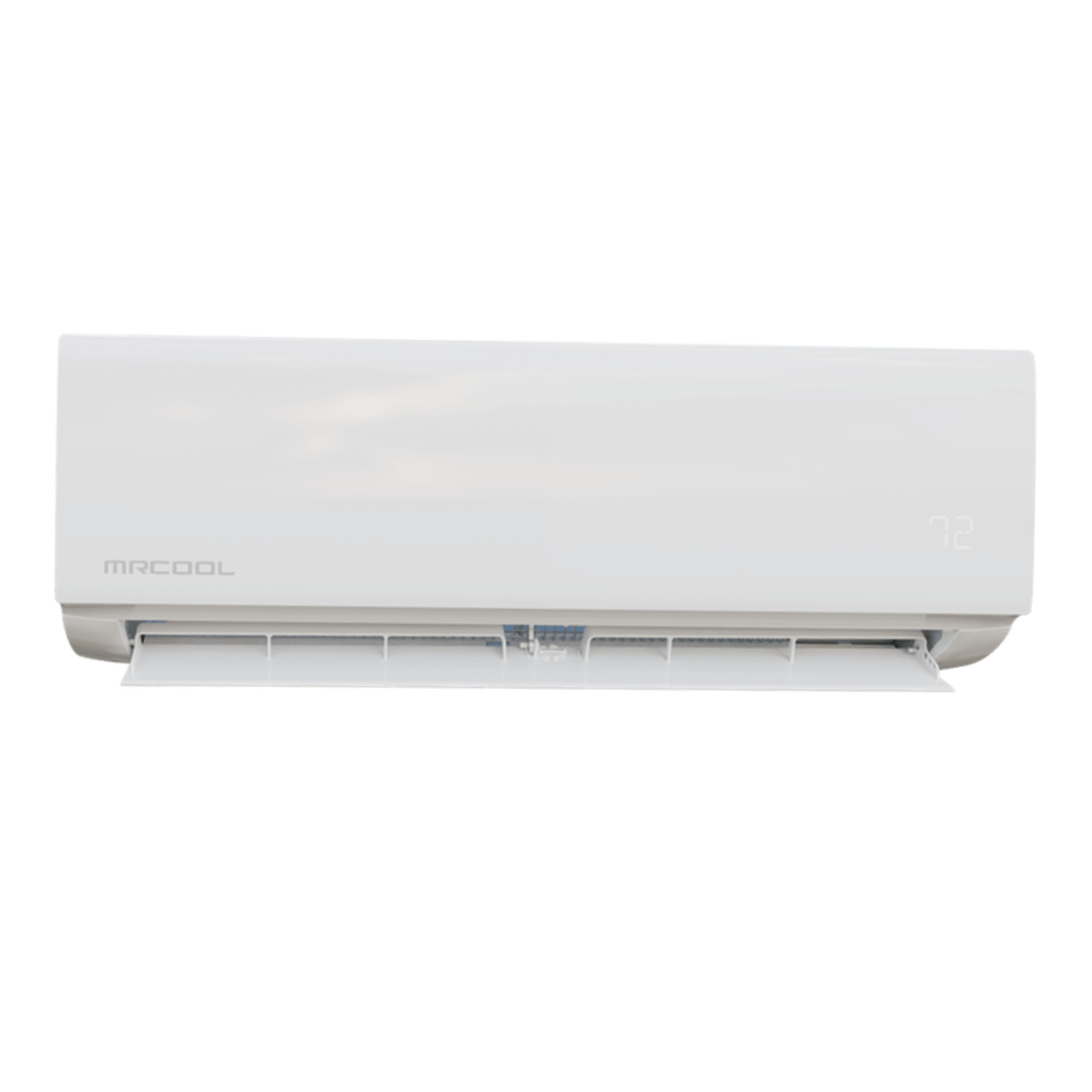

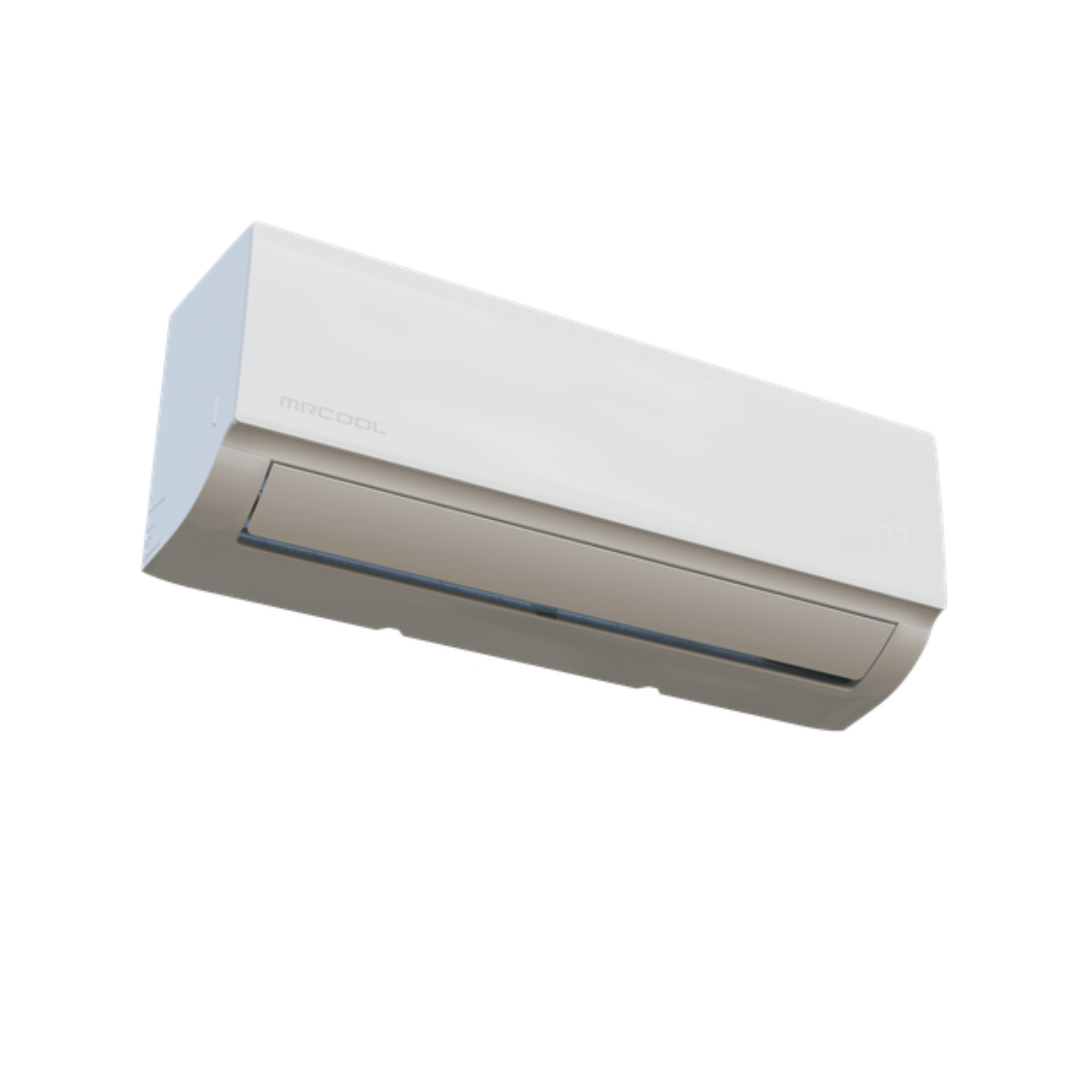

Indoor Unit- EZPRO-24-HP-WMAH-230DE-O
- Sound: 21.5 – 51.5 dBA

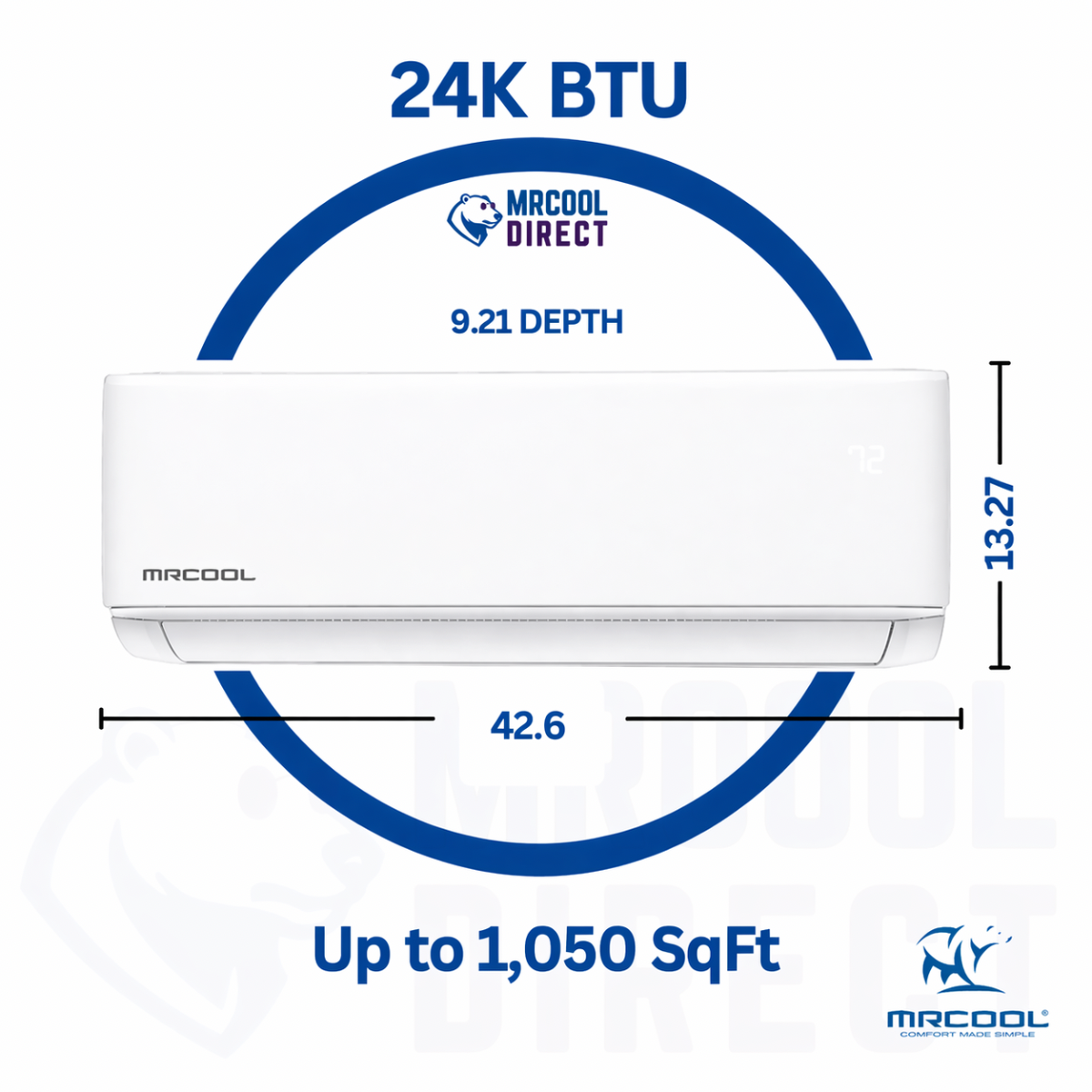

- Size: 42.6W x 13.27H x 9.21D
- Weight: 35.49 lbs

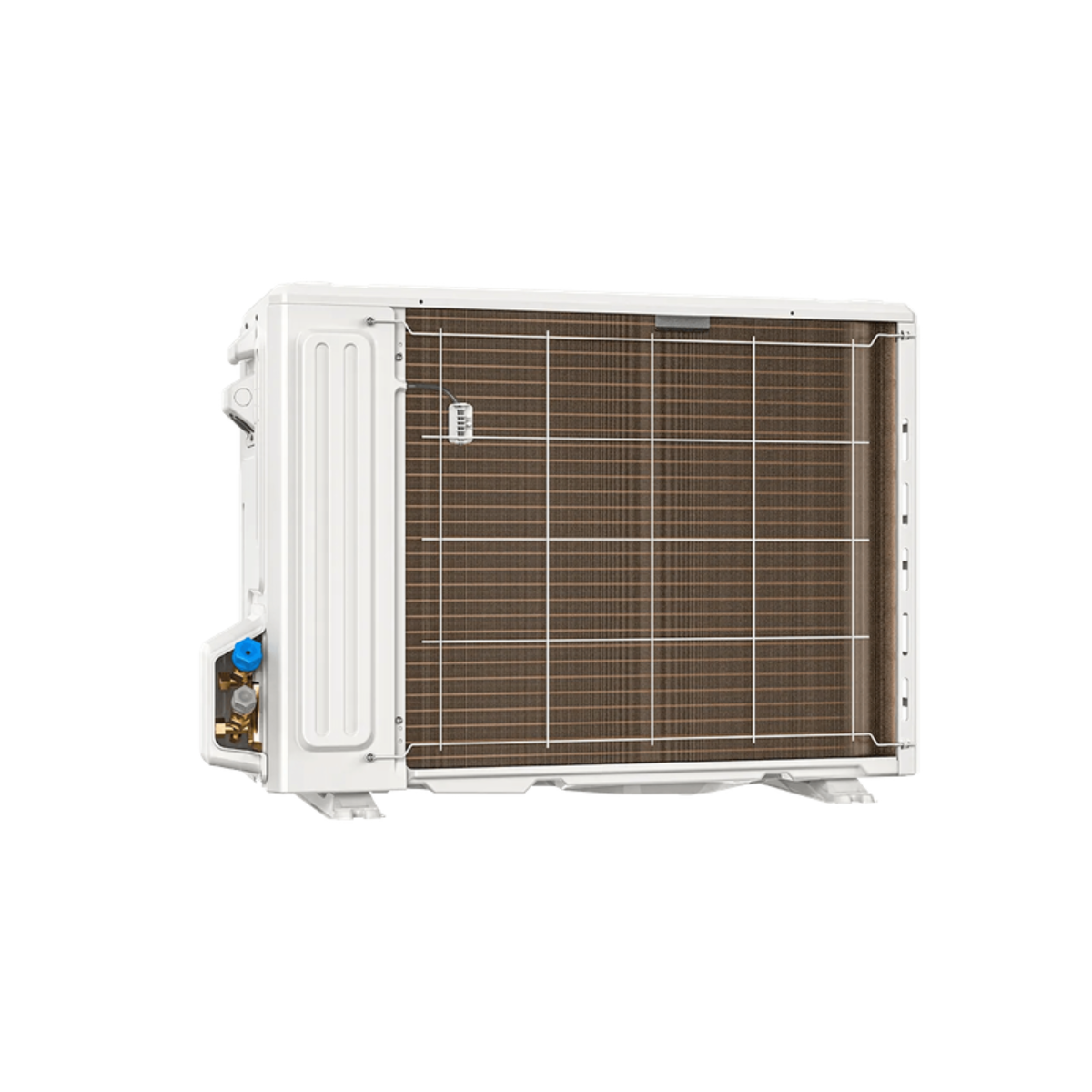

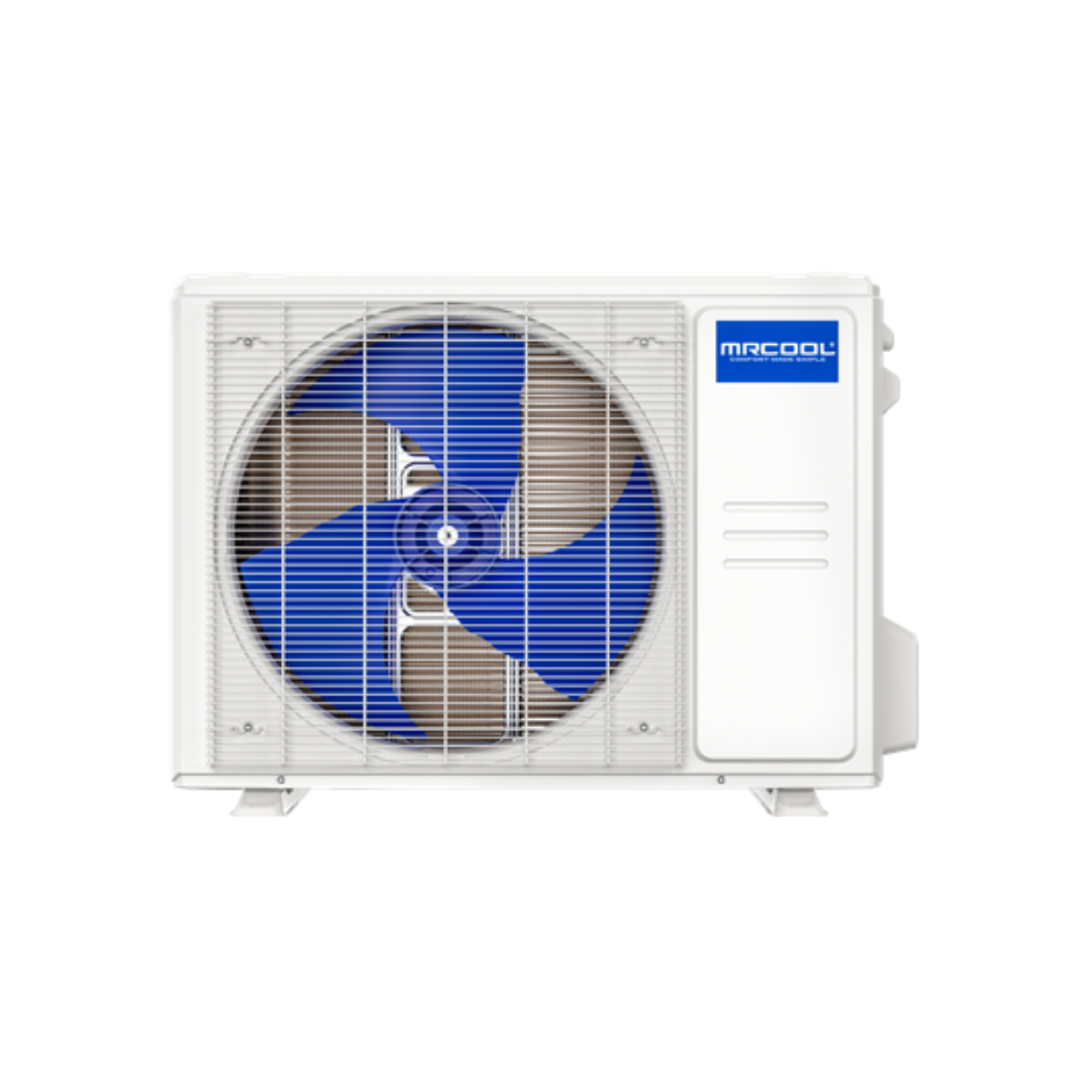

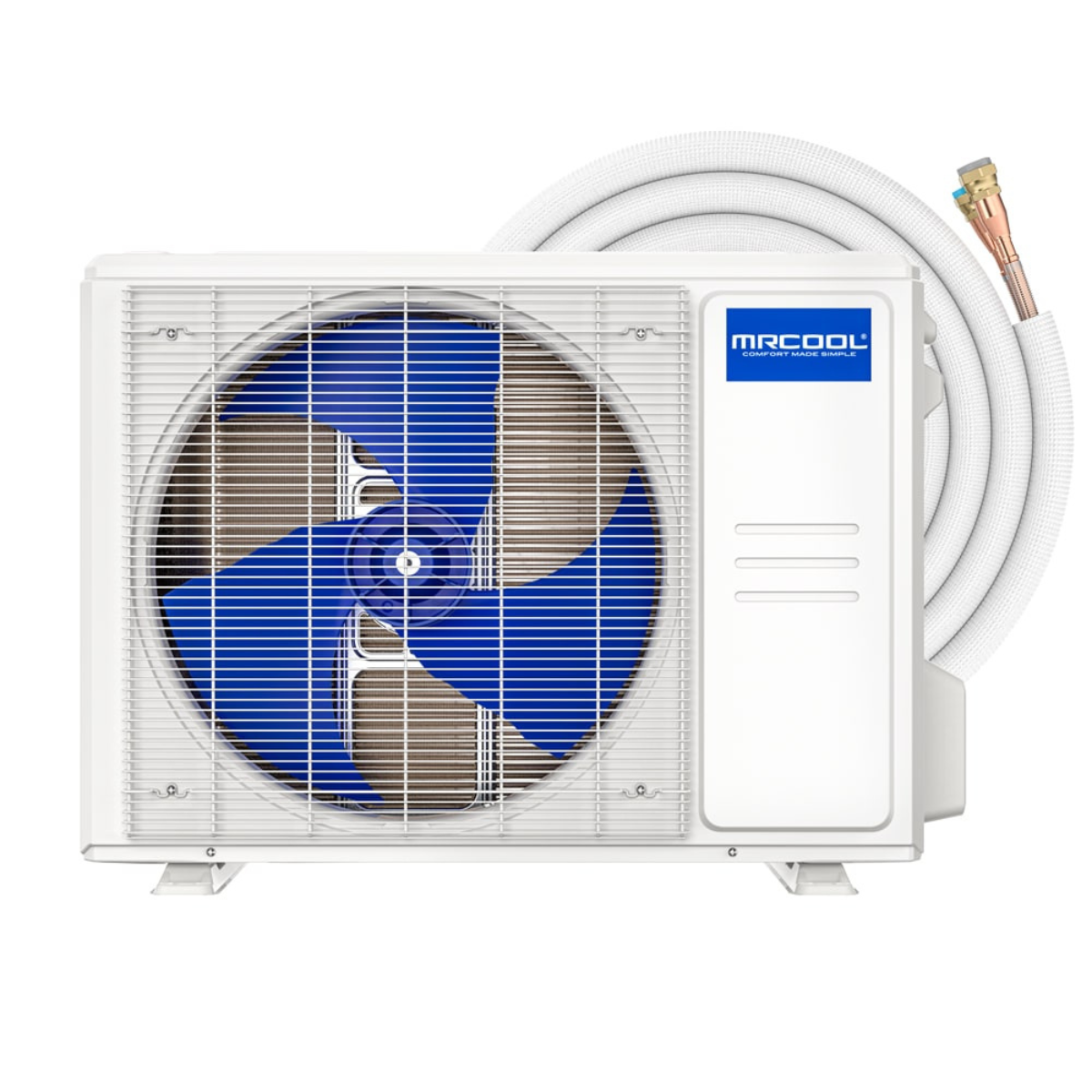

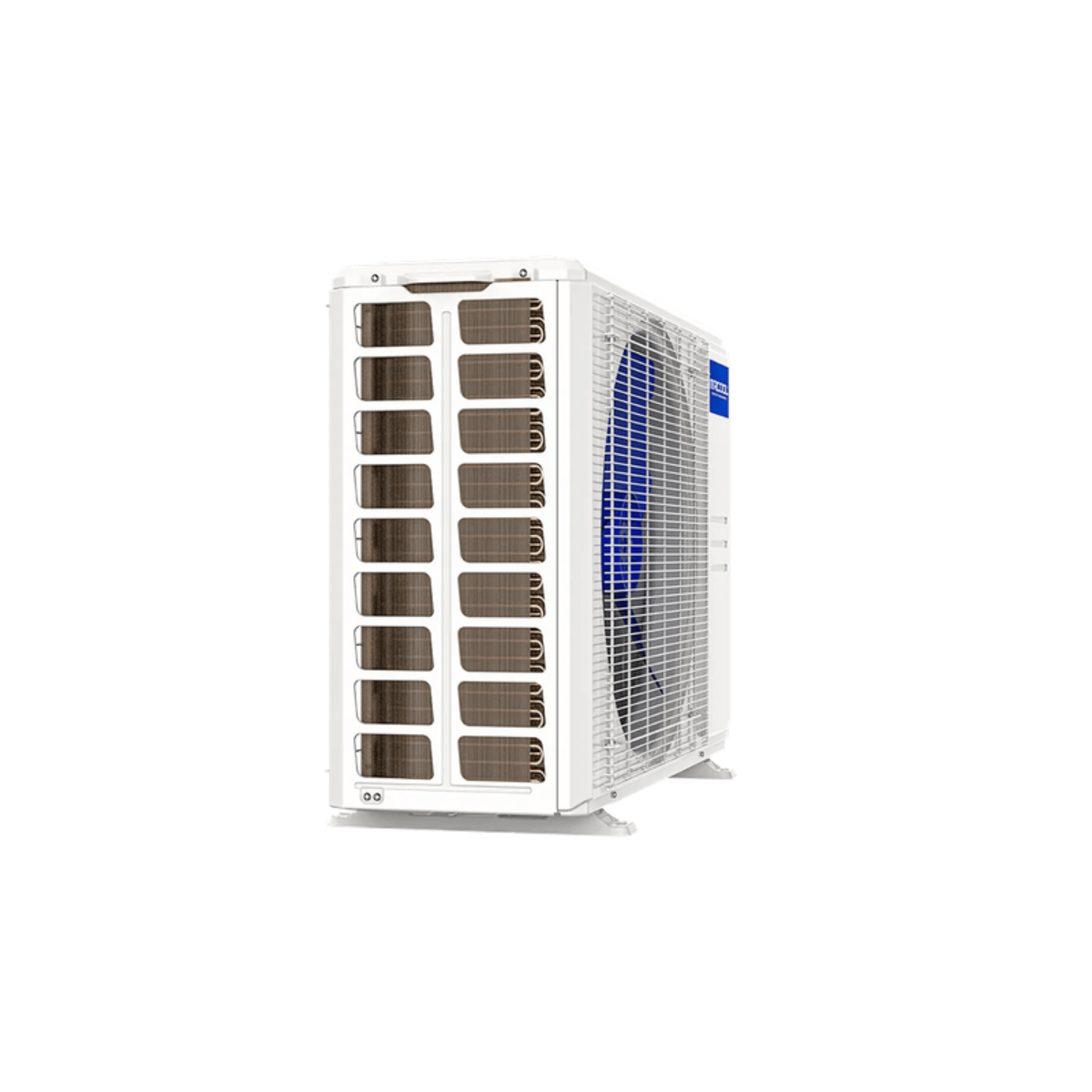

Outdoor Unit- EZPRO-24-HP-C-23011DE-O
- Sound: 61 dBA
- Size: 35.04W x 26.5H x 13.46D
- Weight: 95.9 lbs
Frequently Asked Questions about the MRCOOL® Easy Pro® DIY® 24k BTU 115V DIY Mini Split
Q: Can I install this system myself?
Yes — the pre-charged line set removes the need for HVAC tools.
Q: What size space does this cover?
Up to 1,050 sq ft.
Q: Does this system heat and cool?
Yes — it’s a full heat pump system.
Q: What makes Easy Pro different?
The 11.5 ft pre-charged line set + simplified install.
Q: What power does it require?
208/230V.
