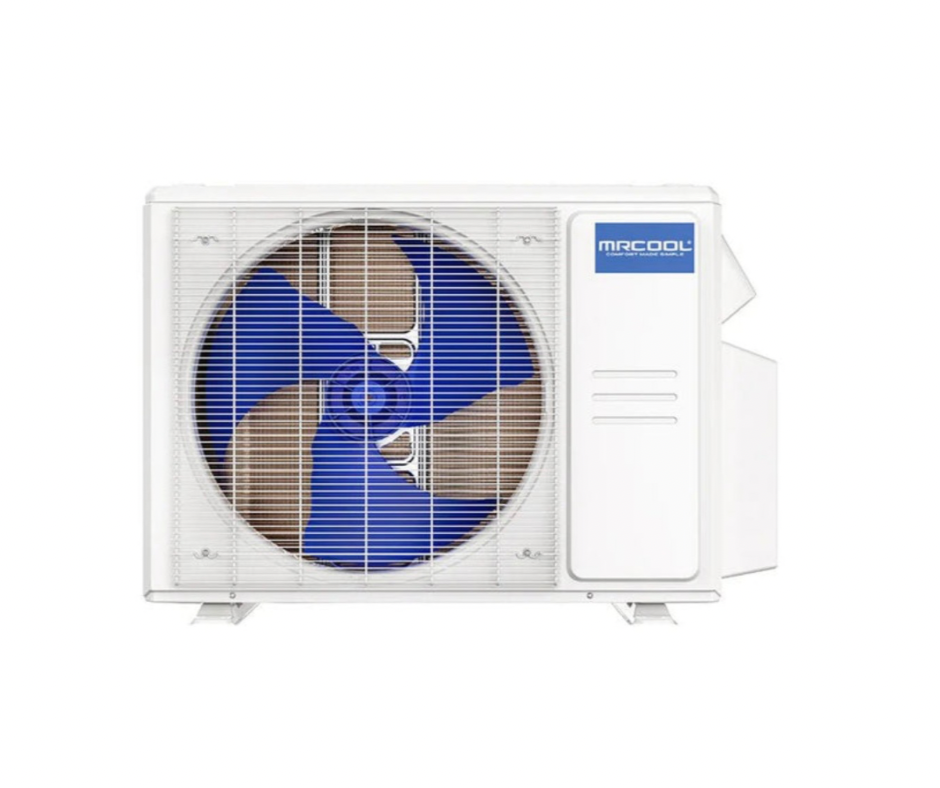

MRCOOL® VersaPro® 4 Ton Central Ducted DC Inverter Heat Pump Condenser — 16 SEER2, R-454B (MVP-48-HP-C-230A00-O)

Product Description



The MRCOOL® VersaPro® MVP-48-HP-C-230A00-O Central Ducted Heat Pump Condenser is a 4-ton, variable-speed outdoor unit engineered for dependable whole-home heating and cooling with modern efficiency and long-term durability. Designed to pair seamlessly with the MRCOOL® VersaPro® Central Ducted Air Handler, this condenser delivers consistent comfort, reduced energy usage, and quiet operation throughout every season.



Powered by advanced DC inverter technology, the VersaPro® continuously adjusts compressor output based on real-time demand. This eliminates inefficient on/off cycling common in traditional systems, resulting in more stable indoor temperatures, improved humidity control, lower utility bills, and reduced wear on system components. With a 16 SEER2 efficiency rating and 8.5 HSPF-4, this unit offers a strong balance of performance and efficiency for larger homes and demanding applications.



The compact side-discharge design allows installation in tighter outdoor spaces where traditional top-discharge condensers may not fit. Its painted galvanized steel cabinet is built to withstand harsh weather and corrosion, ensuring long-lasting outdoor performance. Integrated self-diagnostic technology simplifies service and maintenance, helping technicians quickly identify issues and reduce downtime.



This condenser operates on R-454B refrigerant, a next-generation, low-GWP refrigerant that meets modern environmental standards while maintaining excellent heating and cooling performance. For enhanced comfort and convenience, the system includes Wi-Fi and app compatibility along with a MRCOOL® Smart Thermostat, allowing homeowners to control temperatures remotely with ease.



Backed by a 10-year compressor warranty and 10-year parts warranty, the MRCOOL® VersaPro® 4 Ton Central Ducted Heat Pump Condenser is a smart, future-ready upgrade designed to deliver comfort, efficiency, and peace of mind for years to come.



KEY FEATURES & BENEFITS

• DC Inverter Technology – Variable-speed efficiency and smoother comfort
• 16 SEER2 / 8.5 HSPF-4 – Efficient year-round heating and cooling
• 4-Ton Central Ducted Capacity – Ideal for large homes and full ducted systems

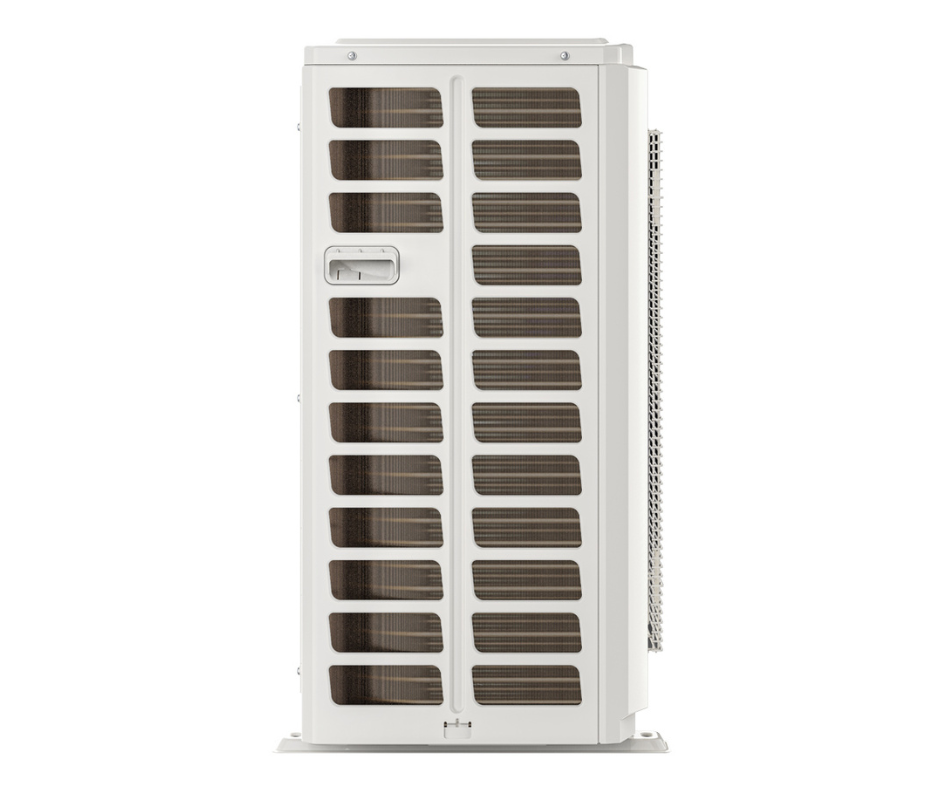

• Side-Discharge Cabinet – Compact footprint for tight installations
• R-454B Refrigerant – Eco-friendly, future-compliant refrigerant
• Quiet Operation – Only 65 dBA
• Smart Thermostat Included – Wi-Fi & app-based temperature control
• Self-Diagnostics – Faster troubleshooting and reduced service time
• Durable Galvanized Steel Cabinet – Built for long-term outdoor exposure



PERFORMANCE & ELECTRICAL

• Cooling Capacity: 48,000 BTU
• Heating Capacity: 48,000 BTU
• Tonnage: 4 Ton
• SEER2: 16
• EER2: 10
• HSPF-4: 8.5
• HSPF-5: 7.2
• Airflow: 3,037.1 CFM
• Voltage: 208–230V
• Phase: Single
• Frequency: 60 Hz
• Max Breaker: 40A
• Minimum Circuit Ampacity: 36A



TECHNICAL SPECIFICATIONS

• Model: MVP-48-HP-C-230A00-O
• Series: MRCOOL® VersaPro® Central Ducted
• Unit Type: Split System Heat Pump
• Equipment Type: Condenser
• Refrigerant Type: R-454B
• Refrigerant Charge: 134.04 oz
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Sound Rating: 65 dBA
• Color: Gray
• Wi-Fi Compatible: Yes
• App Compatible: Yes
• ETL Certified: Yes
• ENERGY STAR® Certified: Yes
• AHRI Certified: Yes



DIMENSIONS & WEIGHT

Unit Dimensions

• Width: 38.58 in
• Height: 38.39 in
• Depth: 16.34 in
• Net Weight: 192.9 lbs

Shipping Dimensions

• Width: 45.08 in
• Height: 42.52 in
• Depth: 19.68 in
• Shipping Weight: 224.21 lbs



WARRANTY INFORMATION

• Parts Warranty: 10 Years
• Compressor Warranty: 10 Years



FREQUENTLY ASKED QUESTIONS

Q: What air handler pairs with this condenser?

A: This condenser is designed to pair with the MRCOOL® VersaPro® Central Ducted Air Handler.



Q: Is this a variable-speed inverter system?

A: Yes. It uses DC inverter technology for improved efficiency, quieter operation, and longer system life.





Q: Is R-454B refrigerant future-proof?

A: Yes. R-454B is a low-GWP refrigerant that meets current and future environmental regulations.
