MRCOOL  |  SKU: *DIYM218HPC01C15

MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 35 and 50 ft. Install Kit, DIYM218HPC01C15

$4,686.00 $6,327.00
Shipping calculated at checkout.


Care information

Care kits are available on our website! Grab yours now.

Delivery and Shipping

Delivery times may vary by location but our delivery shipping times are 3-7 days.

Selling fast! Grab yours now!

Specifications

Description

The MRCOOL DIY 4th Generation Mini Split comes fully equipped for all your home or office heating and cooling needs. In your package, you'll receive an 18K BTU Multi-Zone Condenser, 9K and 12K BTU Ceiling Cassette Air Handlers, a remote, and the essential lineset and communication wires for each handler. The standout feature? You can set it up on your own! This DIY Mini Split is so adaptable that you can place it almost anywhere without the need for a pricey HVAC specialist or high-end equipment.

Your Mini Split System Package:

  • MRCOOL DIY Multi-Zone 2-Zone 18K BTU Condenser (4th Gen Series) - Model: DIY-MULTI2-18HP230C
  • MRCOOL DIY Series 9K BTU Ceiling Cassette - Model: DIYCASSETTE09HP-230C25
  • MRCOOL DIY Series 12K BTU Ceiling Cassette - Model: DIYCASSETTE12HP-230C25
  • MRCOOL 35ft 1/4 x 1/2 Pre-Charged Lineset (4th Gen) suitable for 9K, 12K & 18K Indoor - Model: DIY35-1412C
  • MRCOOL 50ft 1/4 x 1/2 Pre-Charged Lineset (4th Gen) suitable for 9K, 12K & 18K Indoor - Model: DIY50-1412C

Note: If you run all air handlers at once, their total BTU output will align with the condenser's BTU rating. Therefore, their combined BTU output will not go beyond the 18K BTU capacity of the Condenser.

Condenser Details (18K BTU):

  • Efficiency: Boasts an outstanding 21.2 SEER2 rating, making you eligible for energy or tax rebates.
  • Performance in Extreme Cold: Efficient heating even at temperatures as low as -13°F.
  • Reliable Warranty: Comes with a 7-year compressor and 5-year parts warranty. For a lifetime compressor warranty, simply enroll in the MRCOOL Care Program.

Air Handler Features (9K BTU):

  • Coverage: Suitable for spaces ranging from 180 to 375 sq. ft.
  • Flexibility: Features multiple modes - COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.

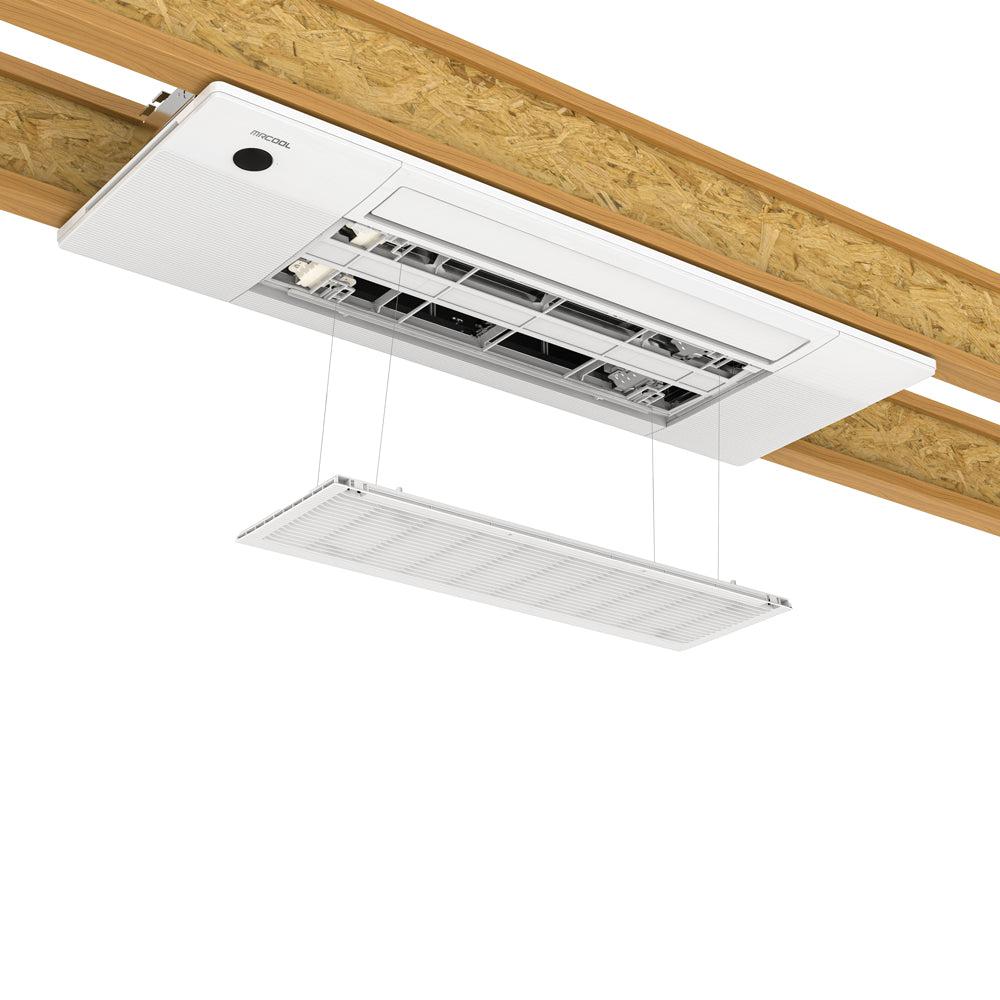

  • Sleek Design: Designed for discreet heating and cooling with its low-profile installation.
  • Hassle-Free Setup: Fits seamlessly between all 16" center joists, even with pre-manufactured I-joists.
  • Easy Maintenance: Use the Elevation function to access the air filter effortlessly.

Air Handler Features (12K BTU):

  • Coverage: Ideal for areas between 250 to 500 sq. ft.
  • Flexibility, Design, Setup, and Maintenance: Shares the same features as the 9K BTU model.

Line Set Specifications:

  • Pre-Charged: Equipped with the exact R-410A refrigerant amount.
  • Economical DIY Installation: Avoid technician costs as you can install it yourself, leading to substantial savings.
