MRCOOL  |  SKU: *DIYM227HPC03C10

MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump with 25 and 50 ft. Install Kit, DIYM227HPC03C10

$4,831.00 $6,281.00
Shipping calculated at checkout.


Care information

Care kits are available on our website! Grab yours now.

Delivery and Shipping

Delivery times may vary by location but our delivery shipping times are 3-7 days.

Selling fast! Grab yours now!

Specifications

Description

The MRCOOL 4th Generation DIY Mini Split System provides a comprehensive solution for both cooling and heating needs in your home or office. The package includes a 27K BTU Multi-Zone Condenser, Ceiling Cassette Air Handlers with 12K and 18K BTU capacities, along with a remote control, pre-charged linesets, and dedicated communication wires for each air handler. The standout feature? You can easily set it up yourself! There's no need for costly professional HVAC installation or specialized tools.

What's Included in the Mini Split System:

  • MRCOOL DIY Multi-Zone 3-Zone 27K BTU Condenser, 4th Gen Series, DIY-MULTI3-27HP230C
  • MRCOOL DIY Series 12K BTU Ceiling Cassette, DIYCASSETTE12HP-230C25
  • MRCOOL DIY Series 18K BTU Ceiling Cassette, DIYCASSETTE18HP-230C25
  • MRCOOL 25ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412
  • MRCOOL 50ft 1/4 x 1/2 Pre-Charged Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY50-1412C

Note: When operating all air handlers simultaneously, the collective BTU output won't surpass the 27K BTU capacity of the condenser.

Condenser Features:

  • Energy Efficiency: The 27K BTU condenser boasts a remarkable 22 SEER2 efficiency, making it eligible for energy and tax rebates.
  • Extreme Temperature Operation: Offers heating capabilities even when the temperature plunges to -13°F.
  • Reliable Warranty: Comes with a 7-year compressor and 5-year parts warranty. For a lifetime compressor warranty, simply register with the MRCOOL Care Program.

12K BTU Air Handler Features:

  • Expansive Coverage: Serves an area ranging from 250 to 500 sq. ft.
  • Flexibility: Offers multiple modes including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
  • Unobtrusive Installation: Designed for low-profile, discreet mounting.
  • Easy Setup: Suitable for installation between all types of 16" center joists, including pre-manufactured I-joists.

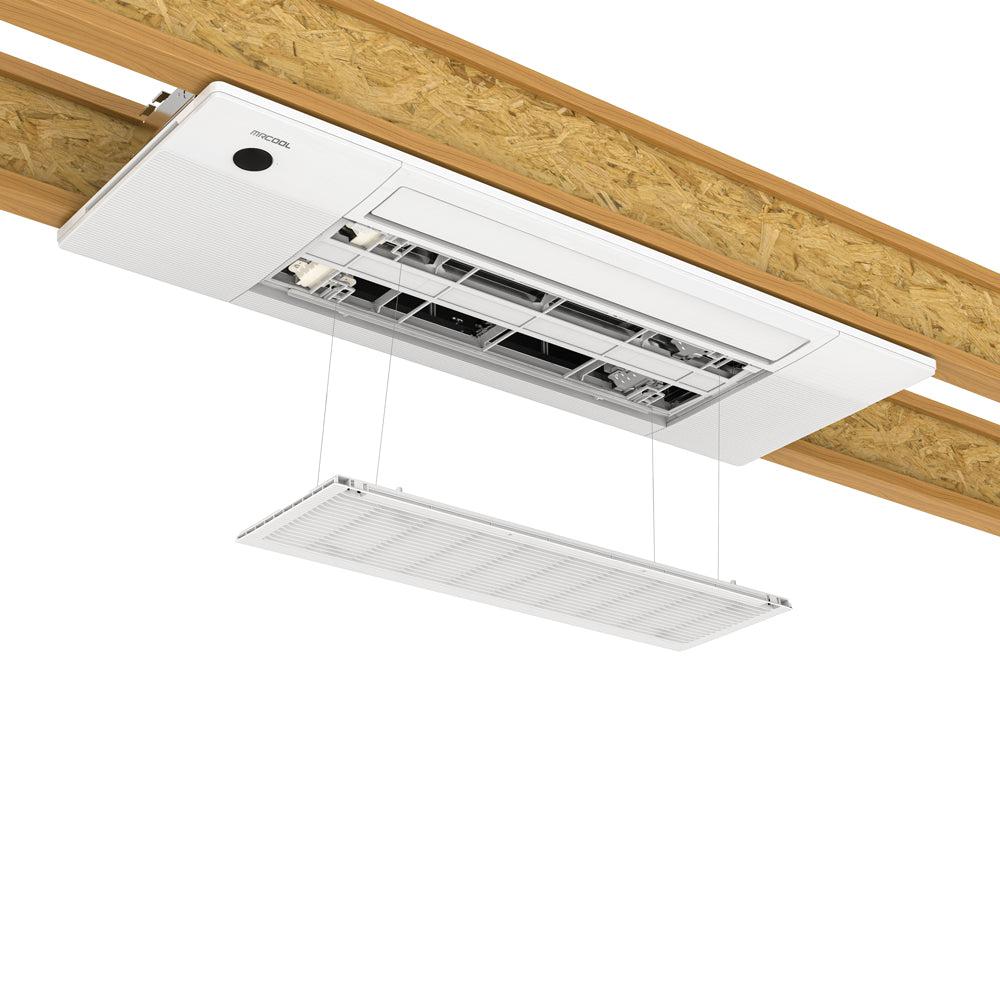

  • Convenient Filter Access: Activate the Elevation function to lower the filter panel for easy maintenance.

18K BTU Air Handler Features:

  • Expansive Coverage: Serves an area ranging from 375 to 750 sq. ft.
  • Flexibility: Offers multiple modes including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
  • Unobtrusive Installation: Designed for low-profile, discreet mounting.
  • Easy Setup: Suitable for installation between all types of 16" center joists, including pre-manufactured I-joists.
  • Convenient Filter Access: Activate the Elevation function to lower the filter panel for easy maintenance.

Lineset Features:

  • Pre-Charged: Comes filled with the exact amount of R-410A refrigerant.
  • DIY Installation: Enables you to install without the need for a certified technician, saving you money.
